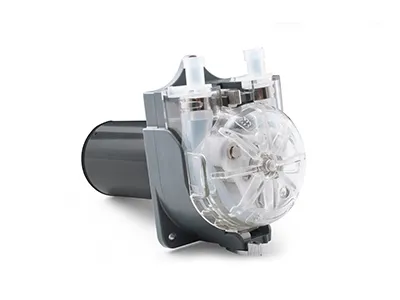

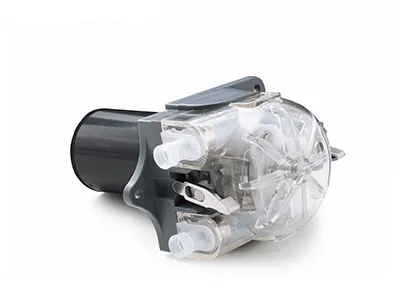

Lefoo High Precision DC Motor Peristaltic Pump LFP602DB.G (Flow range：1112-4095ml/min）

• High Flow Performance

  Offers a wide adjustable flow range from 1112 ml/min to 4095 ml/min, ensuring efficient, high-throughput liquid transfer.

• Self-Priming Capability

  Supports automatic fluid suction without requiring manual priming devices, simplifying equipment integration and operation.

• Non-Contaminating Fluid Path

  Only the tubing comes into contact with the liquid, guaranteeing clean, hygienic, and cross-contamination-free transfer.

• Compact Design for Equipment Integration

  Features a small footprint and versatile mounting options, making it ideal for installation in industrial machines and automated systems where space is limited.

• Quick Tube Replacement

  The innovative quick-release pump head structure allows for rapid tubing changes, minimizing maintenance downtime and boosting operating efficiency.

• Excellent Dry-Running & Long Service Life

  Designed to safely operate dry for short periods, with a durable motor that ensures long-term, reliable continuous operation.

• Low Noise Operation

  Engineered for a quieter working environment.

• Wide Liquid Compatibility

  Compatible with multiple tube materials including Silicone, BPT, A-60-G, making it suitable for water-based chemicals, detergents, cleaning solutions, beverages, nutrients, and various process fluids.

• OEM & Customization Support

  Available with customized tubing materials, connectors, voltage configurations (standard DC24V), and application-specific requirements.

A range of tube materials is available to handle a range of different chemicals as well as hygienic options for food and beverage dispensing.

Food Machinery

Drink dispenser

Detergent supply

Dish-Washing machine,

Washing machine Analytical Equipment

Analytical &testing instrument sample supply

Printing Equipment： Ink Supply

Kitchen Apparatus

Laundry Apparatus

Car Washing Equipment Analytical Apparatus

Drink machine

Drinks dispensing

Beverage Dispenser

Soda beverage fountains

Beer brewing equipment

Coffee machine

Ice cream dispensing

Blood diagnostic equipment

Vegetable cultivation

Indoor growing shelves

Indoor Farming

Vertical Farming

Commercial washing machine

Medical device

Water treatment

Gas analysis

Printing machine

Aquarium

Hydroponics

Agriculture plating

Lab sampling

Dishwasher

Robot Sweeper

Swimming Pool

1、What is a peristaltic pump?

A peristaltic pump is a type of positive displacement pump that transfers liquids through flexible tubing. The liquid only contacts the tube, making the pump suitable for applications requiring clean, contamination-free liquid transfer.

2、What liquids can the LFP602DB.G peristaltic pump transfer?

The LFP602DB.G peristaltic pump is suitable for transferring various low-viscosity liquids, including water, nutrient solutions, detergents, cleaning liquids, inks, beverages, and other compatible fluids. Tubing material should be selected according to the liquid properties.

3、Does the liquid come into contact with the pump mechanism?

No. In a peristaltic pump, the liquid flows only through the tubing and does not contact internal pump components. This design helps reduce contamination and simplifies maintenance.

4、Can the LFP602DB.G peristaltic pump run dry?

Peristaltic pumps can generally tolerate short periods of dry running because the liquid is contained inside the tubing. However, extended dry operation may reduce tubing life and is not recommended.

5、How often should the tubing be replaced?

Tubing replacement intervals depend on operating conditions, running time, liquid type, pressure, and tubing material. Regular inspection is recommended to maintain optimal pump performance.

6、Is the LFP602DB.G suitable for continuous operation?

Yes. The LFP602DB.G DC peristaltic pump is designed for repeated and continuous liquid transfer applications. Actual service life depends on operating conditions and system design.

7、Can the pump be customized?

Yes. LEFOO supports OEM and customization services, including tubing materials (BPT, Silicone, A60-F, Viton), connectors, mounting configurations, and application-specific requirements.

8、What is the flow range of the LFP602DB.G peristaltic pump?

The LFP602DB.G high precision peristaltic pump provides flow rates from 1112 ml/min to 4095 ml/min, depending on tubing size: 26# tube (1112~2205 ml/min), 35# tube (1703~3213 ml/min), and 36# tube (2131~4095 ml/min) at DC24V.

9、What applications is the LFP602DB.G commonly used for?

The LFP602DB.G is widely used in beverage dispensing equipment, hydroponic nutrient systems, textile printing machines, industrial cleaning equipment, laboratory systems, water treatment equipment, and liquid transfer applications.

10、Why choose the LFP602DB.G high precision peristaltic pump?

The LFP602DB.G combines high flow repeatability and long-term accuracy. Its quick-release pump head structure makes maintenance easier, while its compact design saves space. It is compatible with multiple tube sizes, features reliable waterproof protection against condensation ingress, and its DC24V operation makes it suitable for OEM equipment integration and industrial liquid handling systems.
