Lefoo 24VDC 75GPD RO Booster Pump

RO booster pump is a sort of pressure booster pump, LEFOO is always dedicated to manufacturing pressure booster pumps for RO systems and water purifiers. The LEFOO RO Booster Pump increases the water flow and adds the inlet pressure, maximizing the water production of their water purifier.  prolonging the life of the components and reducing operating costs.  This high-quality pump is very quiet.  Working flow ≧750ml/min, Capable of 1/4" connectors and 3/8" NPT connectors



Specification of 24VDC 75GPD RO Booster Pump

TECHNICAL PARAMETER

LEFOO 24VDC 75GPD RO Booster Pump
The pumps are capable for water purifiers with a clean water production of 75 gallons per day
ModelLFP1075ELFP1075JLFP1075W-PLFP1075W
VoltageDC24V
Inlet Pressure0.2Mpa
Working Pressure0.5Mpa
Working Current≦1.0A≦0.9A
Working Flow≧750ml/min
Open Flow≧1800ml/min
Bypass Pressure0.8~1.0Mpa0.85~1.0Mpa
Maximum Current≦1.3A≦1.2A

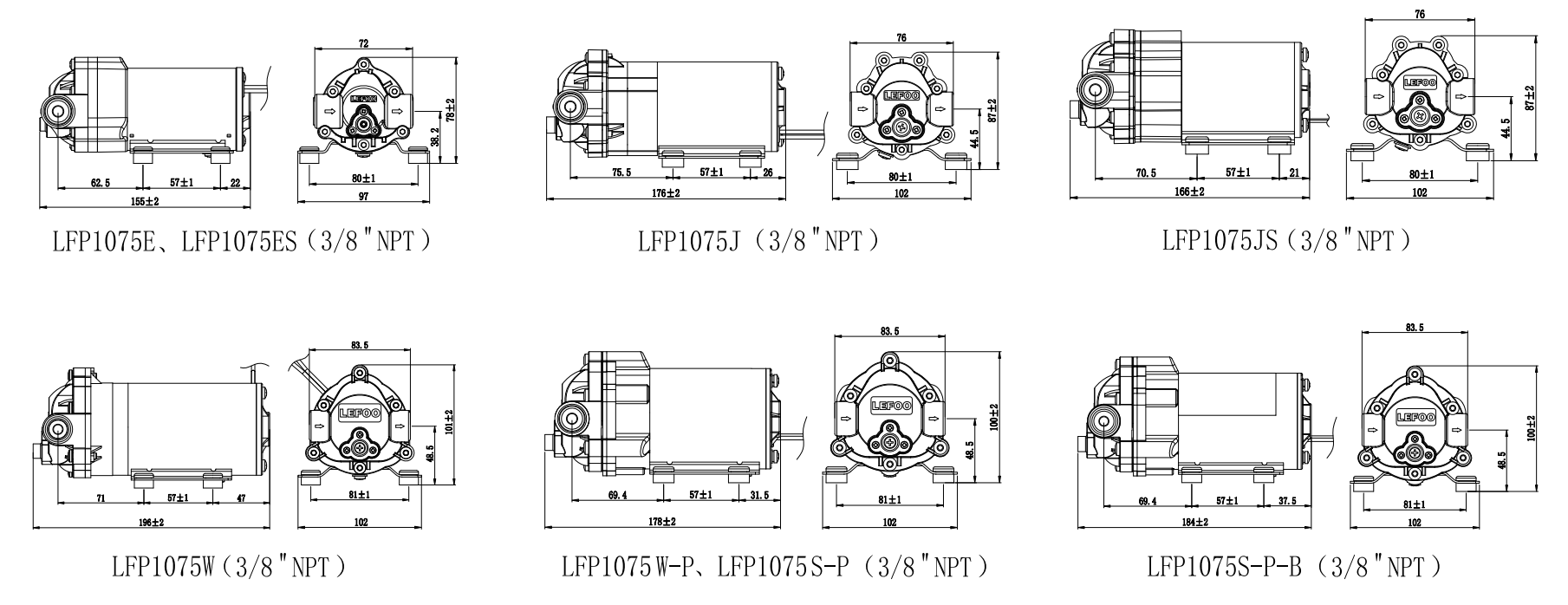

Optional Connections

3/8"NPT

3/8"NPT "0"

1/4" Male Quick Connector

1/4" Top Female Quick Connector
CertificationsNSF, CE, ROHS, REACH, EU Food Grade


Features of 24VDC 75GPD RO Booster Pump

*High water preventing level.


*Compliant with CE, Rohs, CQC certifications.


*Large flux water outlets with stable pressure and long working life.


*Compact structure consists of robust plastic and metal components.


*DC Powered strong impetus motor with low noise, low vibration level.


*Whole process quality controls in processes of electrical, sealing, and pressure boosting.



Applications of 24VDC 75GPD RO Booster Pump

Water Treatment/RO

Carbonation Systems

Beverage/Coffee Systems

Water Vending, Dispensing

Hydroponics/Aeroponics

Misting Systems

Surface Sanitation

Humidification

HVAC Coil Cleaning

Medical Lab Water

Autoclave Systems

Endoscope Reprocessing/Chemical Boost

Dialysis Chemical Injection

Methanol & Water Injection

Sparkling Water Machine

Commercial Sparkling Water Machine

Commercial Carbonated Water Machine

Carbonation Systems

Commercial Water Dispenser

Water Dispensers

Soda Machine

RO Purifier

RO Water Dispenser

Water Coolers

Misting System

Teeth Cleaning Industry
