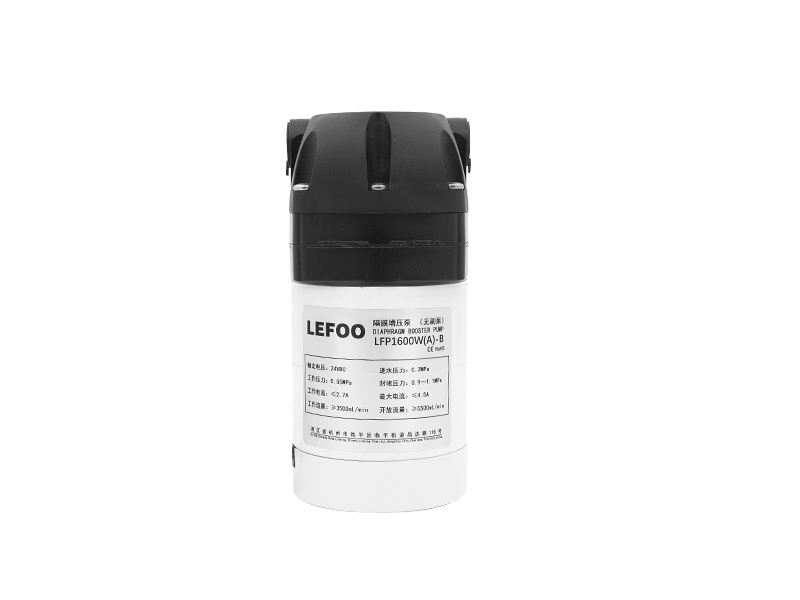

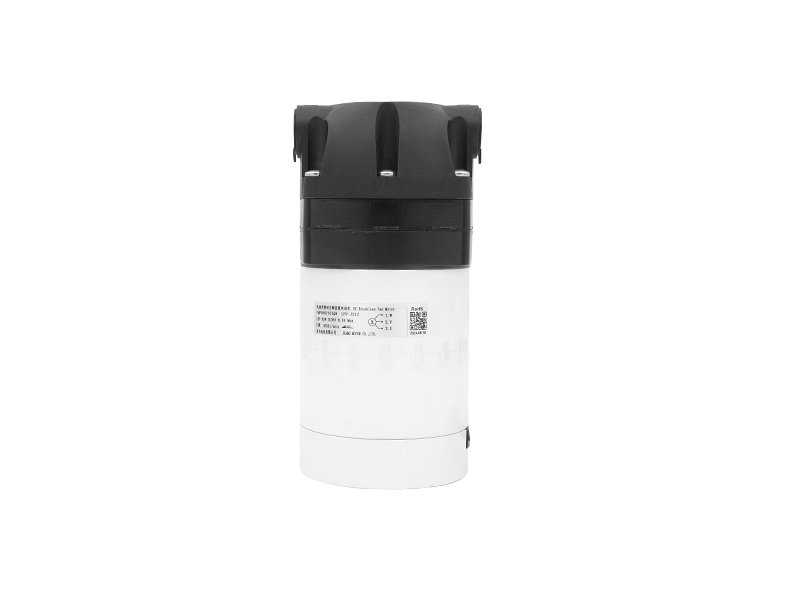

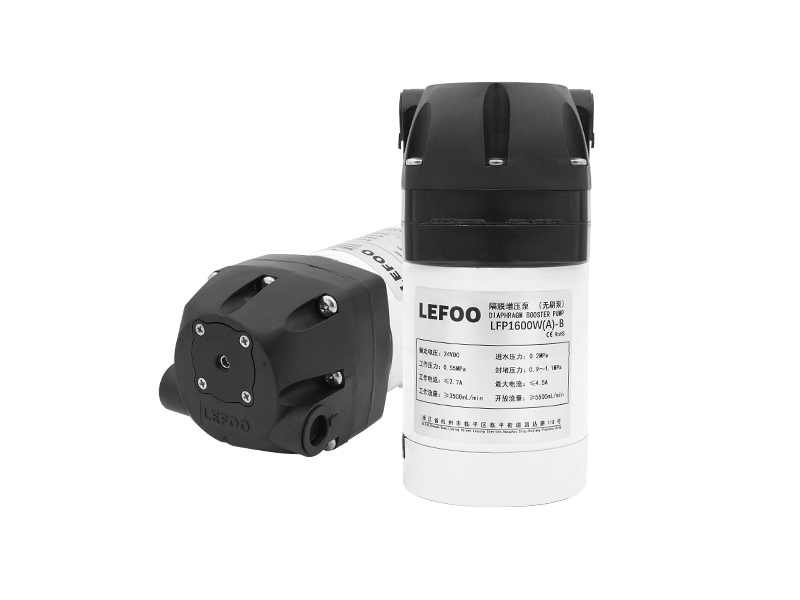

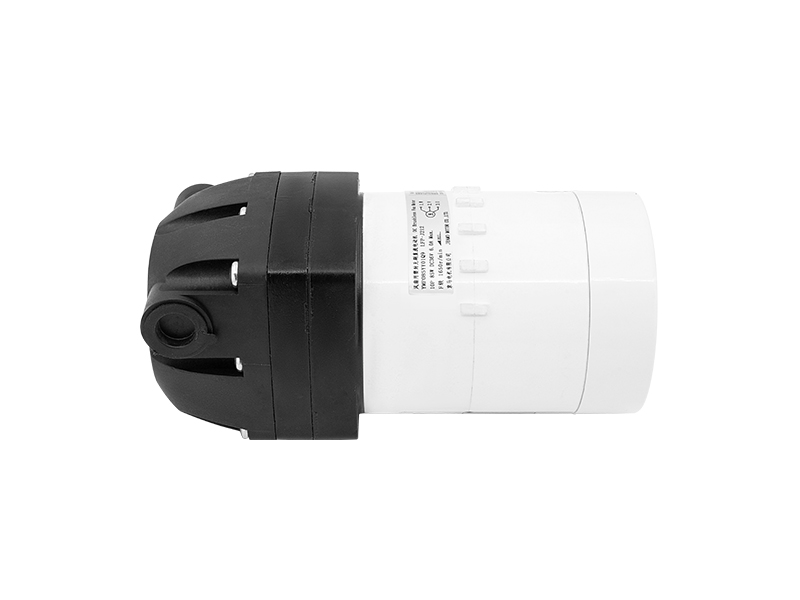

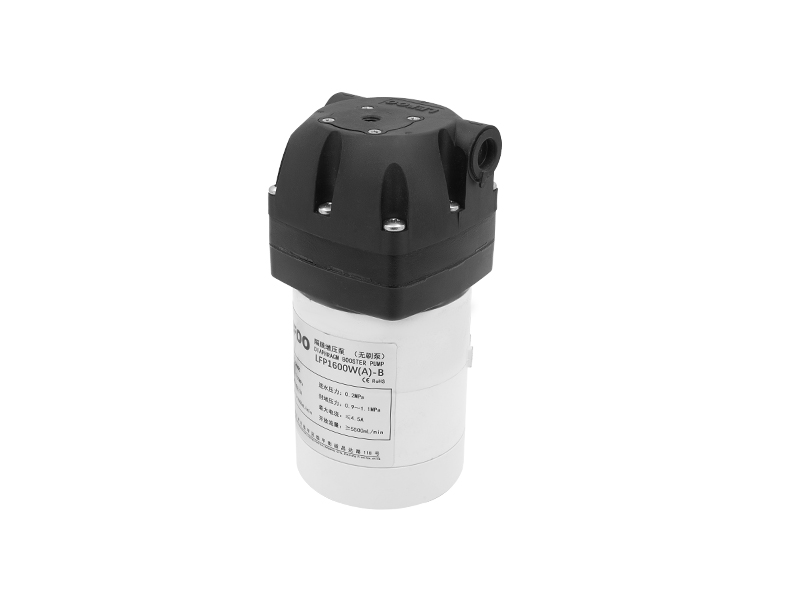

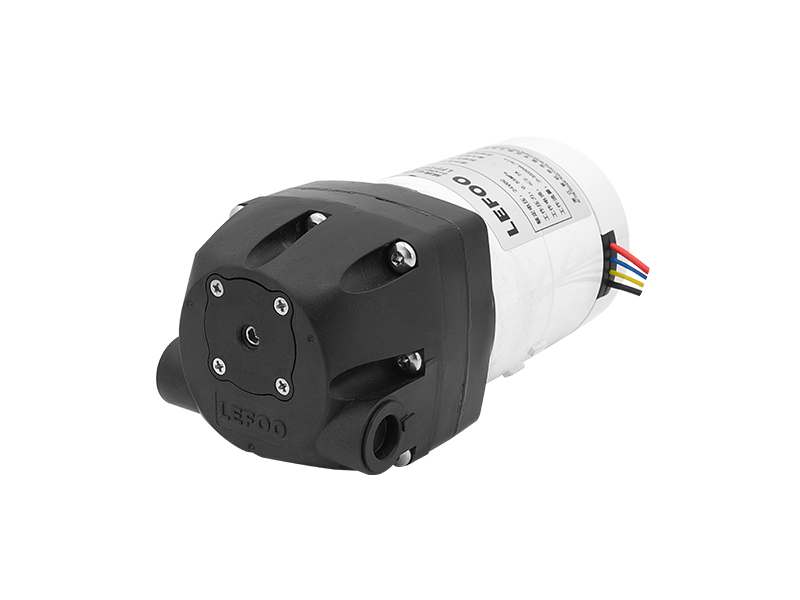

Lefoo Commercial 600GPD Fixed frequency Brushless RO Booster Pump

Name: Commercial 600GPD Fixed frequency Brushless RO Booster Pump
Brand: LEFOO INDUSTRIAL CO.,LTD.
Rating: 4.8 (50 reviews)

Adopts large four-chamber pump head and BMC injection-molded brushless motor, with a life of up to 8000 hours and 0.5kg lighter than the same model burshless motor. Support 24v/36v voltage, wide flow range (24V: 1600W-B~11000W-B; 36V: 2600W-B~21200W-B), can be configured with FG signal feedback to monitor the operating status in real time, and supports 0-5V/PWM speed regulation to meet the needs of precise flow regulation.

Features

* Low noise operation: sinusoidal FOC control technology, less harmonics, comfortable ear feel;

* Flexible installation: the base supports 360° rotation (adjusted every 15°);

* Multiple protections: full protection such as overcurrent/overvoltage/undervoltage/phase loss/blocking/overtemperature/anti-reverse connection to ensure stable operation;

* Intelligent control: supports power protection, automatic restart and speed regulation functions, adapting to complex working conditions.

* Suitable for high-precision fluid delivery scenarios, with reliable performance and easy maintenance.

Get a Quote

Pump

Transmitter

Specification
Features
Applications

Specification of Commercial 600Gpd Fixed Frequency Brushless Ro Booster

Model	Rated Voltage	Water Inlet Pressure	Working Pressure	Working Current	Flow Rate	Bypass Pressure	Bypass Current
LFP1600W-B	DC 24±1V	0.2MPa	0.55MPa	≤2.5A	≥3200ml/min	0.9-1.1MPa	≤4.0A
LFP1600W (A)-B	DC 24±1V	0.2MPa	0.55MPa	≤2.7A	≥3500ml/min	0.9-1.1MPa	≤4.5A
LFP2600W-B	DC 36±1V	0.2MPa	0.55MPa	≤1.8A	≥3200ml/min	0.9-1.1MPa	≤2.8A
LFP2600W(A) -B	DC 36±1V	0.2MPa	0.55MPa	≤2.0A	≥3500ml/min	0.9-1.1MPa	≤3.2A

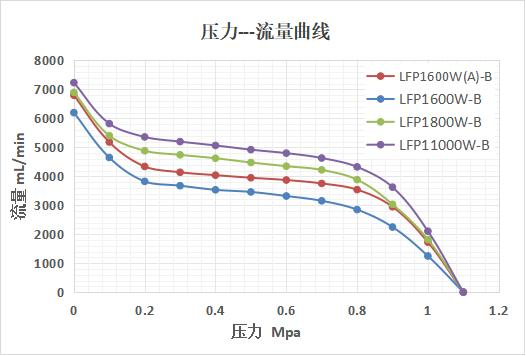

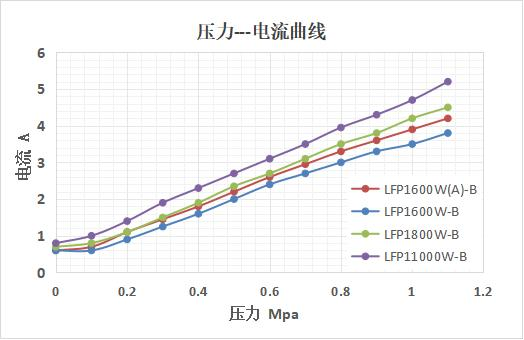

24v-flow-rate_(2).png 24v-flow-rate_(1).png

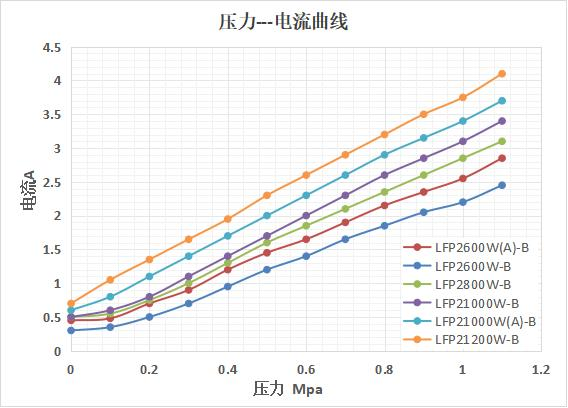

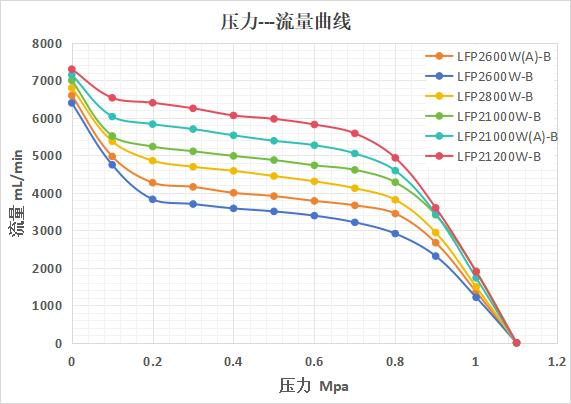

36v-flow-rate_(2).png 36v-flow-rate_(1).png

Features of Commercial 600Gpd Fixed Frequency Brushless Ro Booster

Low noise operation: sinusoidal FOC control technology, less harmonics, comfortable ear feel;
Flexible installation: the base supports 360° rotation (adjusted every 15°);
Multiple protections: full protection such as overcurrent/overvoltage/undervoltage/phase loss/blocking/overtemperature/anti-reverse connection to ensure stable operation;
Intelligent control: supports power protection, automatic restart and speed regulation functions, adapting to complex working conditions.
Suitable for high-precision fluid delivery scenarios, with reliable performance and easy maintenance.

Applications of Commercial 600Gpd Fixed Frequency Brushless Ro Booster

The Commercial 600Gpd Fixed Frequency Brushless Ro Booster is driven by a brushless D.C motor. The motor is robustly built to handle the demanding requirements of commercial RO systems. The brushless pump enjoys a 8000 hours versatile work span and contributes 600 gallons of pure water per day. The pump is compact in size which is optimal for commercial Ro pure water machines with high water flow.

Water Treatment/RO

Carbonation Systems

Beverage/Coffee Systems

Water Vending, Dispensing

Hydroponics/Aeroponics

Misting Systems

Surface Sanitation

Humidification

HVAC Coil Cleaning

Medical Lab Water

Autoclave Systems

Endoscope Reprocessing/Chemical Boost

Dialysis Chemical Injection

Methanol & Water Injection

Sparkling Water Machine

Commercial Sparkling Water Machine

Commercial Carbonated Water Machine

Carbonation Systems

Commercial Water Dispenser

Water Dispensers

Soda Machine

RO Purifier

RO Water Dispenser

Water Coolers

Misting System

Teeth Cleaning Industry
