RO Booster Pump

This Pump booster series is powered by ferrite magnetic motor, 0.5/0.7 Mpa pressure feeding,43~60db noise level, adjustable pressure, Workflow 0.6~5.5 Liter per minute, Max current 1.4~5.5A
  • 50 GPD RO Pump +
    50 GPD RO Pump

    Pressure Booster Pump / Self-Priming Pump
    Work Flow: 0.6L/min or 0.65L/min
    Work Pressure: 0.5Mpa=73Psi
    Noise Level: ≦43db / ≦50db
    Max Current: ≦1.1A / ≦1.4A

  • 75 GPD RO Pump +
    75 GPD RO Pump

    Pressure Booster Pump / Self-Priming Pump
    Work Flow: 0.75L/min or 1L/min
    Work Pressure: 0.5Mpa=73Psi
    Noise Level: ≦43db / ≦50db
    Max Current: ≦1.3A / ≦1.6A

  • 100 GPD RO Pump +
    100 GPD RO Pump

    Pressure Booster Pump / Self-Priming Pump
    Work Flow: 0.98L/min or 1.05L/min
    Work Pressure: 0.5Mpa=70Psi
    Noise Level: ≦45db / ≦50db
    Max Current: ≦1.4A / ≦2.1A

  • 150 GPD RO Pump +
    150 GPD RO Pump

    Pressure Booster Pump / Self-Priming Pump
    Work Flow: 1.45L/min or 1.5L/min
    Work Pressure: 0.5Mpa=70Psi
    Noise Level: ≦48db / ≦50db
    Max Current: ≦2.0A / ≦2.8A

  • 200 GPD RO Pump +
    200 GPD RO Pump

    Pressure Booster Pump / Self-Priming Pump
    Work Flow: 1.8L/min or 1.9L/min
    Work Pressure: 0.5Mpa=70Psi
    Noise Level: ≦50db / ≦52db
    Max Current: ≦2.5A / ≦3.3A

  • 300 GPD RO Pump +
    300 GPD RO Pump

    Pressure Booster Pump / Self-Priming Pump
    Work Flow: 2.6L/min or 2.7L/min
    Work Pressure: 0.5Mpa=70Psi
    Noise Level: ≦53db / ≦55db
    Max Current: ≦3.2A / ≦4.5A

  • 400 GPD RO Pump +
    400 GPD RO Pump

    Pressure Booster Pump
    Work Flow: 2.95L/min
    Work Pressure: 0.5Mpa=70Psi
    Noise Level: ≦56db
    Max Current: ≦4.0A

  • 500 GPD RO Pump +
    500 GPD RO Pump

    Pressure Booster Pump
    Work Flow: 2.95L/min
    Work Pressure: 0.5Mpa / 0.7Mpa
    Noise Level: ≦55db
    Max Current: ≦4.2A(24v) / 2.5A(36v)

  • 600 GPD RO Pump +
    600 GPD RO Pump

    Pressure Booster Pump
    Work Flow: 3.6L/min or 3.2L/min
    Work Pressure: 0.5Mpa / 0.7Mpa
    Noise Level: ≦60db
    Max Current: ≦4.5A(24v) / 2.8A(36v)

  • 800 GPD RO Pump +
    800 GPD RO Pump

    Pressure Booster Pump
    Work Flow: 5L/min or 4L/min
    Work Pressure: 0.5Mpa / 0.7Mpa
    Noise Level: ≦60db
    Max Current: ≦4.0A

  • 1000 GPD RO Pump +
    1000 GPD RO Pump

    Pressure Booster Pump
    Work Flow: 5L/min or 4.5L/min
    Work Pressure: 0.7Mpa
    Noise Level: ≦60db
    Max Current: ≦5A

  • 1200 GPD RO Pump +
    1200 GPD RO Pump

    Pressure Booster Pump
    Work Flow: 5.5L/min
    Work Pressure: 0.7Mpa
    Noise Level: ≦60db
    Max Current: ≦4.5A (two head) / ≦4.0A(one head)

  • Pump Booster Diaphragm 230V +
    Pump Booster Diaphragm 230V

    Pressure Booster Pump
    Flow Range: 0.6L/min to 3.2L/min
    Work Pressure: 0.5Mpa / 0.7Mpa
    Max Current: ≦0.24A / ≦0.57A

  • Pump Booster Diaphragm 115V +
    Pump Booster Diaphragm 115V

    Pressure Booster Pump
    Flow Range: 0.6L/min to 3.2L/min
    Work Pressure: 0.5Mpa / 0.7Mpa
    Max Current: ≦0.24A / ≦1.05A

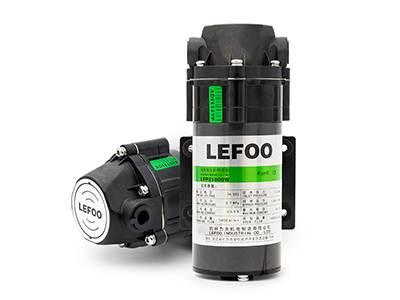

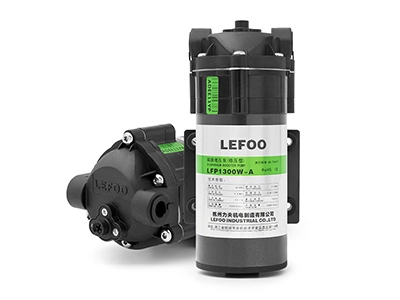

Brief introduction of Lefoo RO Booster Pump

The RO reverse osmosis water filter booster pump has a small volume and a small footprint, thereby assisting the miniaturization of the structure of the water purifier. RO water systems run well on the typical tap water pressure of 60 psi, but they run even better with a RO water booster pump to boost the pressure to 70 psi or higher. The increased pressure also allows the membrane to work more efficiently often giving a lower TDS in the RO product water.


Reverse osmosis is a pressure application process. Pressure is proportional to the efficiency of the RO water system, and also the power consumption. Low pressure feeding a reverse osmosis membrane can cause more rejected water and less RO drink water. If the water pressure is much lower than RO semi- membrane requirements, then adding a booster pump for RO system is quite vital. Residential water pressure tends to range between 45 and 80 psi (pounds per square inch). Anything below 40 psi is considered too low to valuable to RO membrane, and you will get very limited purified drink water.  Low-pressure feeding makes the reverse osmosis water system produce more reject water, produce less drinking water, fill the storage tank more slowly, and produce lower quality water.


As an industry-leading company, we provide you with LEFOO pressure control at a preferential price. Our RO booster pump 100 GPD is popular among customers due to its reasonable price.


Do I Really Need a RO Booster Pump?

For instance, if the city water pressure is 60 psi or more, there is little to be gained by adding a RO motor pressure booster pump. If the city water pressure is under 50 psi, however, a pump for reverse osmosis will give your RO system more efficiency. More water filtered at a higher pressure, more pure RO water in the storage tank. It will run less wastewater to drain). RO system thrives on pressure. And pressure thrives on the power connection to the pump.


How to Select RO Booster Pump From LEFOO

Just take a simple instance of RO Pump U-Shape 75GPD, this pump has a U-shaped water chamber on top with 75 gallons per day, relatively high self-priming height, and high noise level when the pump operates. The RO Self-Priming Water Pump LFP1075S,1075 means the pump is 75 GPD, and the pump has at least 2000 hours of work span, and with vacuum pressure that able to suck water from wells. The Economic RO Self-priming Pump LFP1075S-P is the price cut version with the same pressure but only has 1000 hours of work span. The Residential Booster Pump LFP1075J means this pump is smaller in size when compared to LFP1075S; RO Boost Pump for House LFP1075E has the tiniest size among LEFOO pump series. LFP1075N Booster Pump Reverse Osmosis and Nanofiltration have 50.8 psi low work pressure and are build for nano filtered drink water machine;
