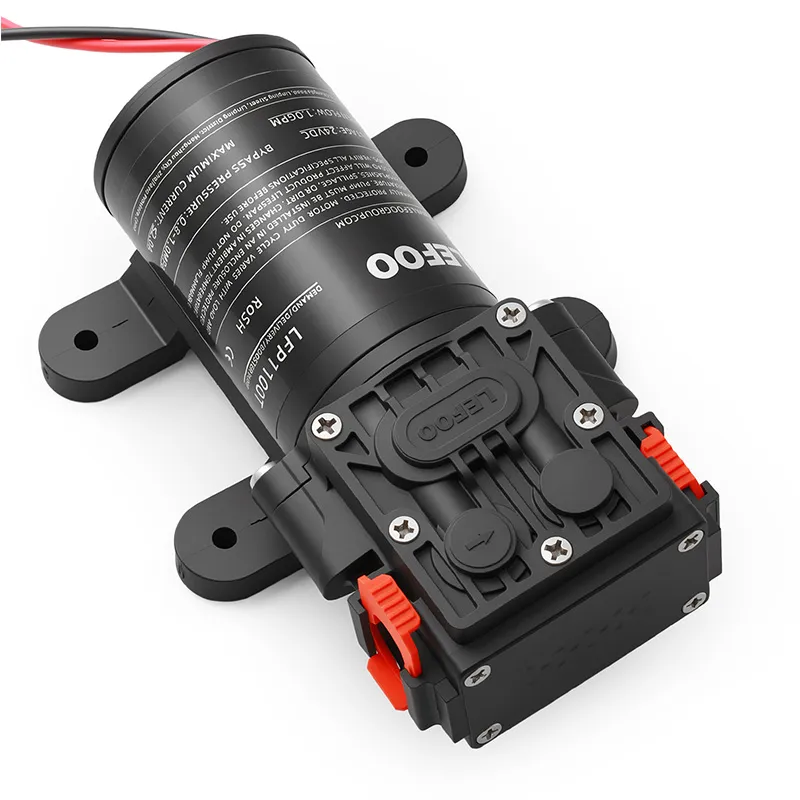

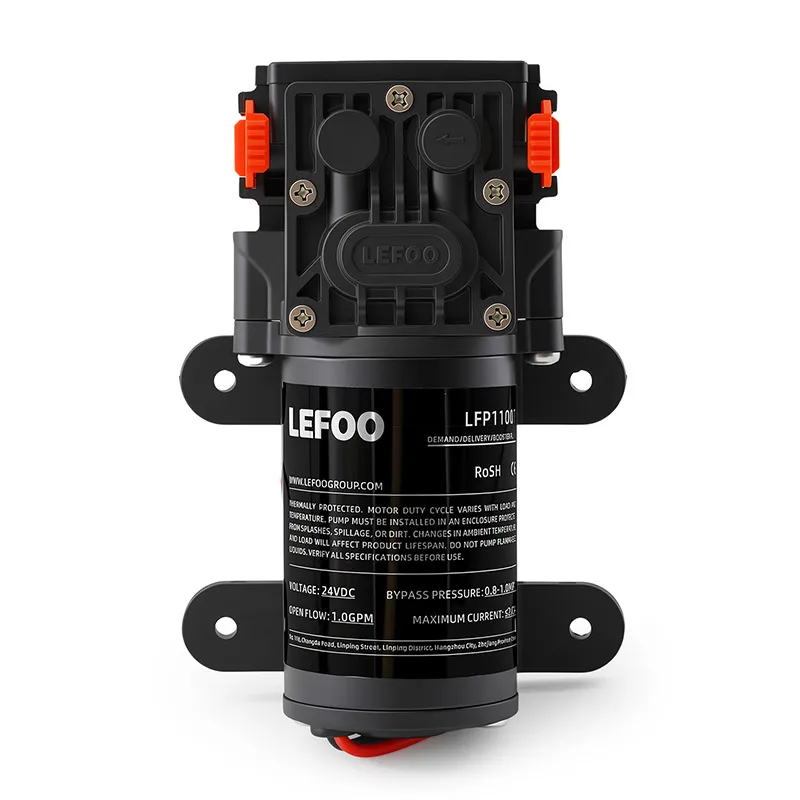

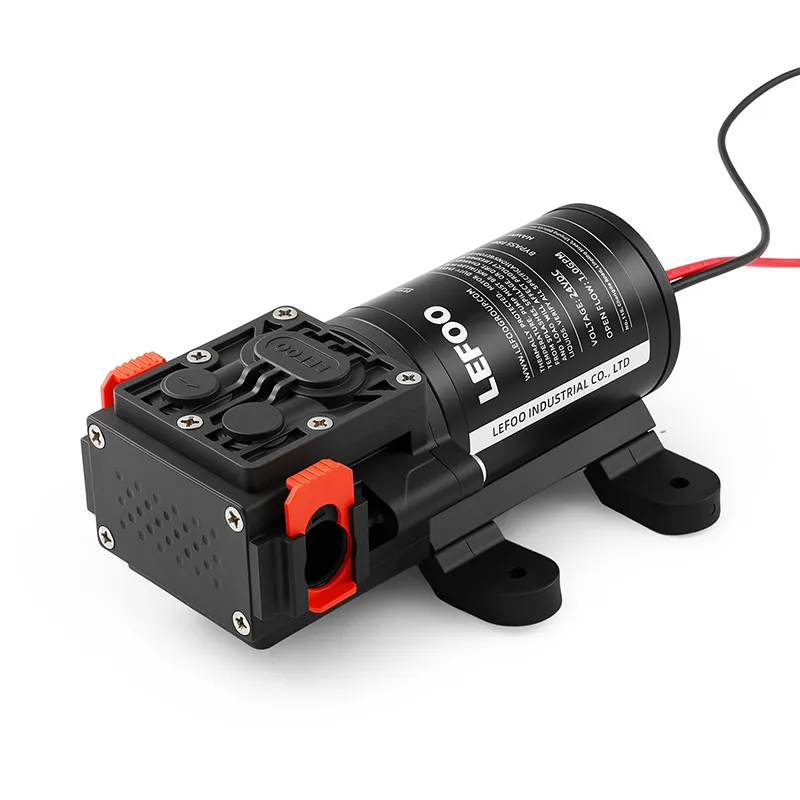

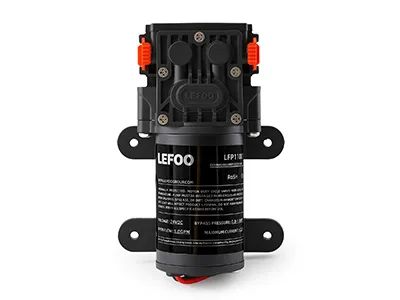

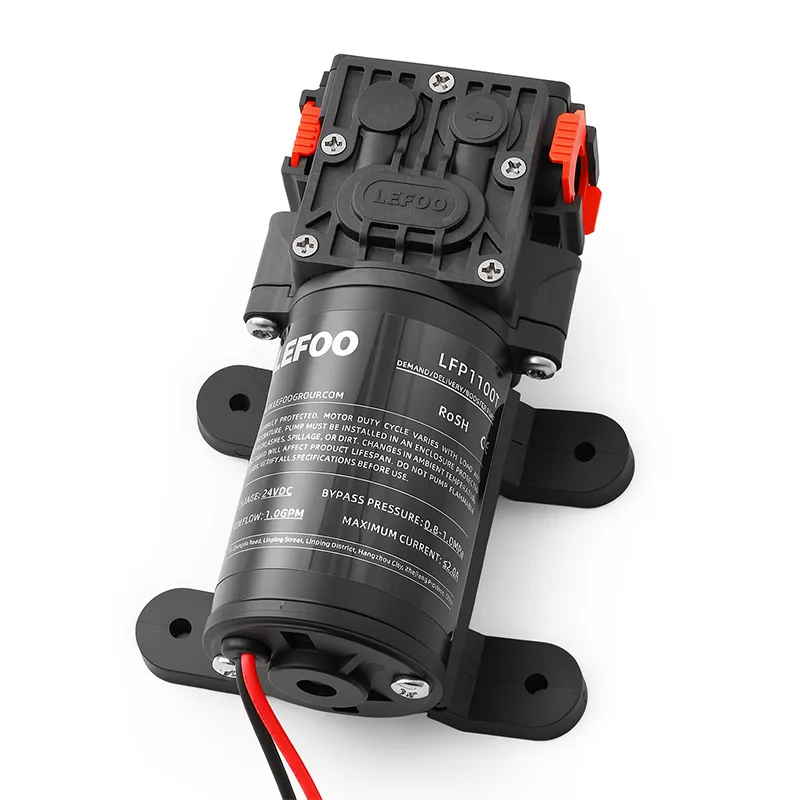

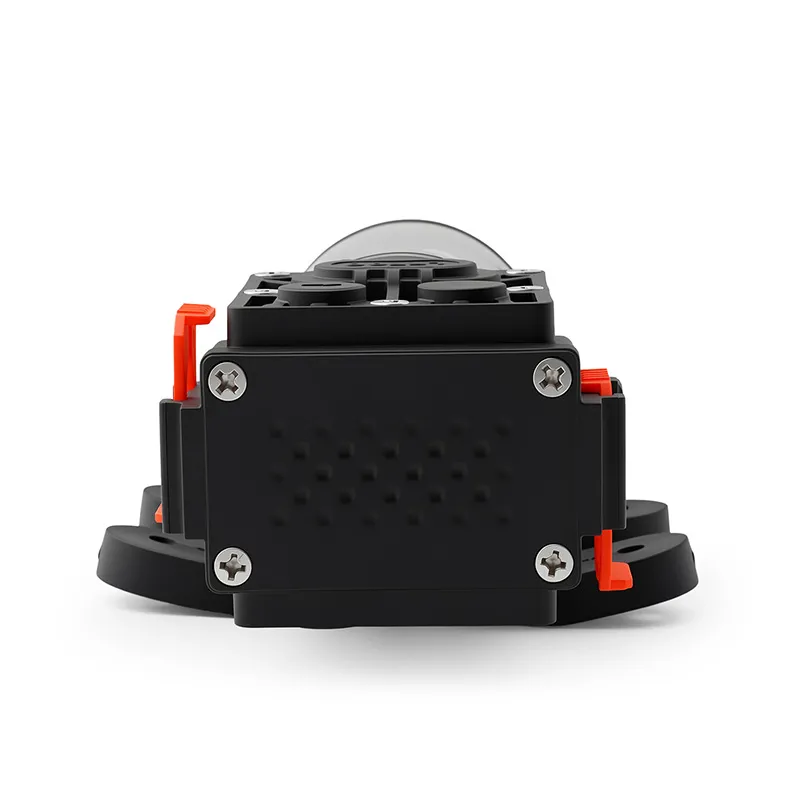

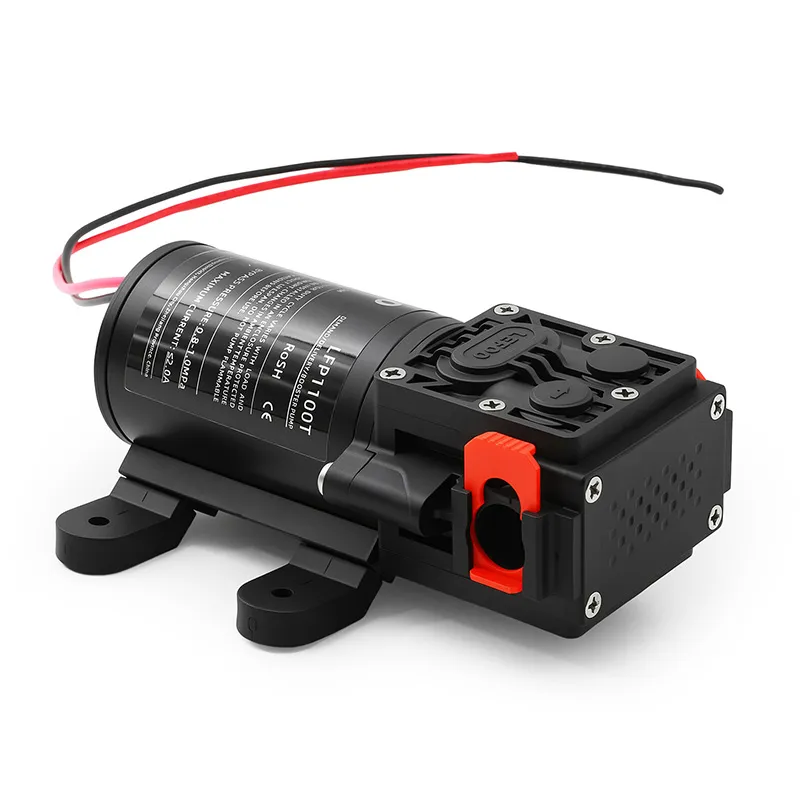

Lefoo 24V 1.0 GPM Dual Chamber Diaphragm Demand Pump

TECHNICAL PARAMETER

• Compact 24V DC dual-chamber diaphragm pump




• Flow rate up to 1.0 GPM / 3.8 L/min at 0 PSI




• 30, 40, 50 and 60 PSI shut-off pressure options




• Self-priming capability up to 1.5 m




• Fully enclosed permanent magnet motor




• Nylon mounting base with vibration-damping feet




• Quick-connect water ports for convenient installation




• Suitable for clean water with a temperature range of 5-50°C




• Compact size for integration into small water equipment

Small water purification and water dispensing systems

Portable and mobile water supply equipment

RV, caravan and marine auxiliary water systems

Small cleaning and washing equipment

Tank-fed water delivery systems

Custom OEM water-handling equipment

1.What applications is the LFP1100T pump suitable for?

The LFP1100T is suitable for small water purification and dispensing equipment, portable water supply systems, tank-fed water delivery, RV and marine auxiliary water systems, small cleaning equipment, and other OEM clean-water applications.

2.How do I choose the right pressure version?

Select the shut-off pressure according to your system requirement. The LFP1100T series is available in 30, 40, 50, and 60 PSI versions. Please note that the flow rate decreases as discharge pressure increases, so both required flow and working pressure should be considered.

3.Does this pump have pressure control?

The LFP1100T series is available with preset shut-off pressure configurations. The pump stops when the system reaches the selected shut-off pressure. Please contact LEFOO to confirm the pressure-switch setting required for your system.

4.What liquid can this pump handle?

This model is specified for clean-water applications with a water temperature range of 5-50°C. Please contact LEFOO before using it with other liquids to confirm material compatibility.

5.Does the pump need a filter?

Yes. LEFOO recommends installing the pump after a pre-filter with a filtration rating of at least 50 mesh to help prevent sand and particles from entering the pump.

6.Can I customize the pump for my equipment?

Yes. LEFOO supports OEM and ODM projects. Please share your required voltage, operating pressure, flow rate, water connection, application, and expected quantity with our sales team.
