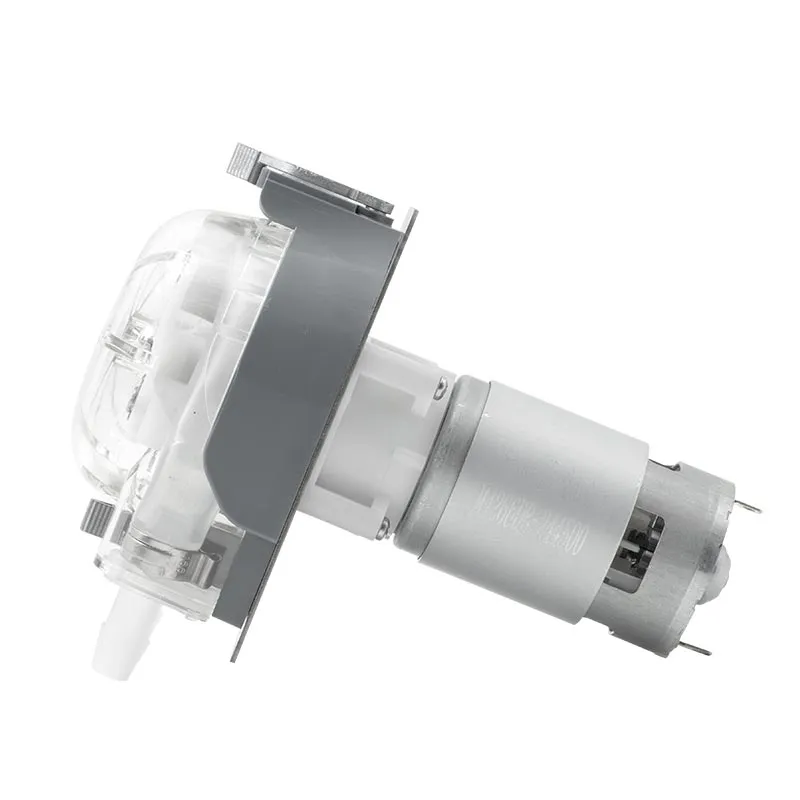

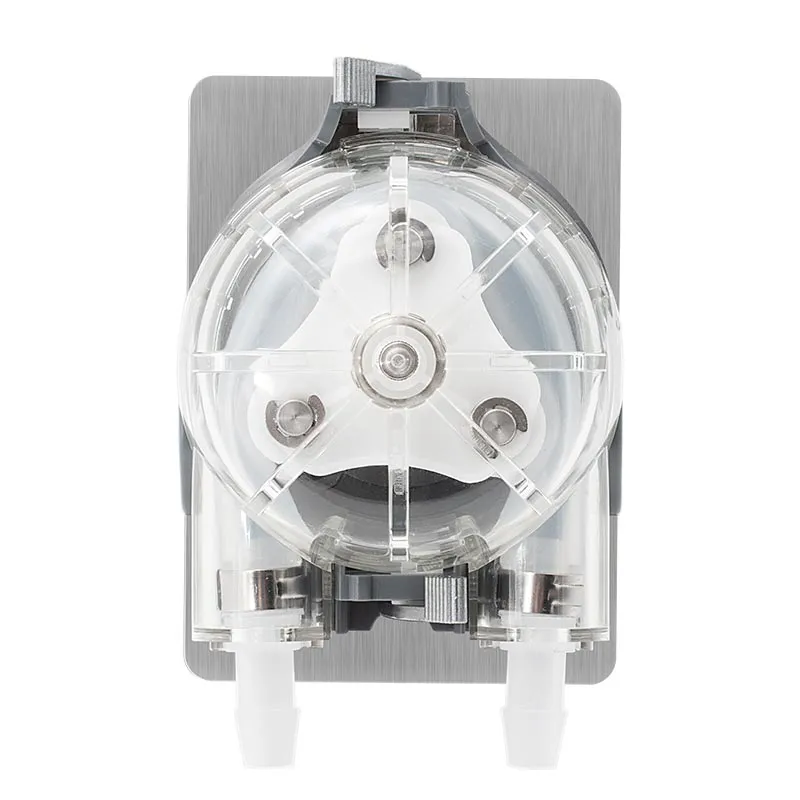

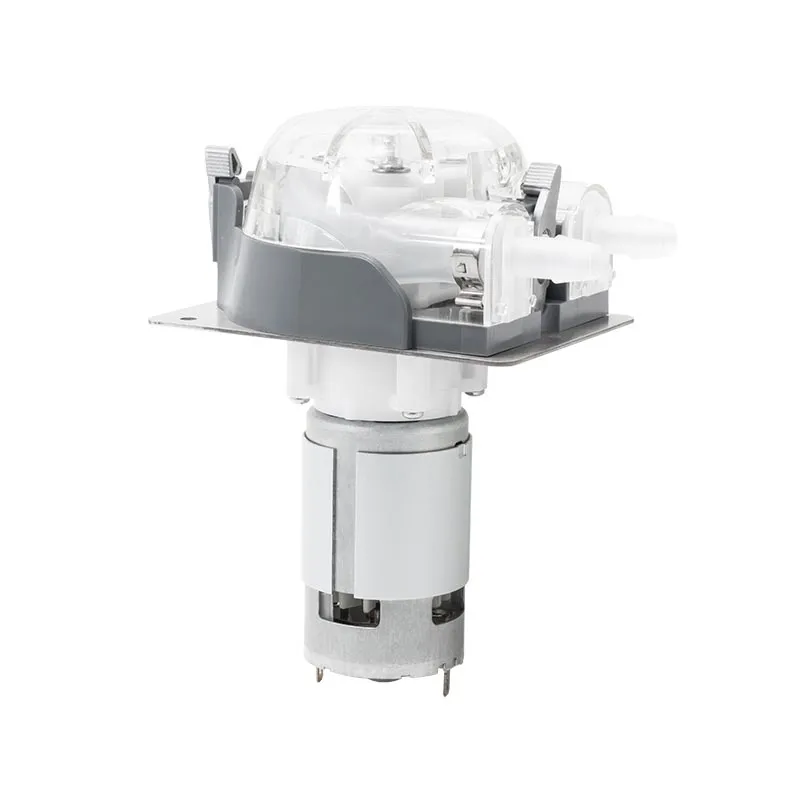

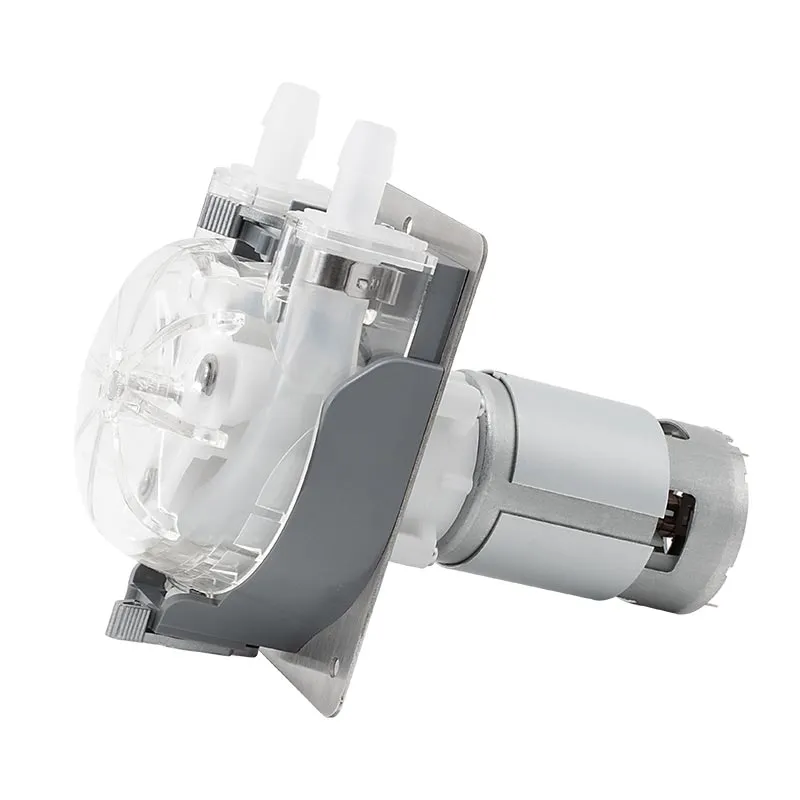

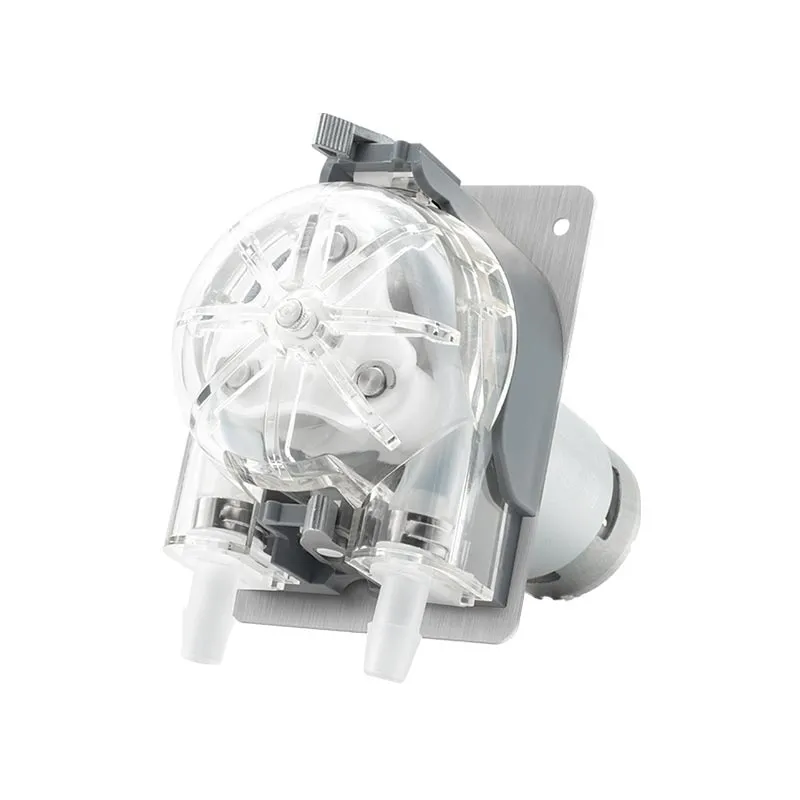

The LEFOO LFP601DB DC Peristaltic Pump is designed for precision liquid dosing and stable fluid transfer applications. With a flow range of 330–4200 ml/min, it delivers reliable performance for continuous operation and automated fluid handling systems.
Featuring easy tube replacement, flexible tubing compatibility, and contamination-free liquid transfer, the LFP601DB is suitable for chemical dosing systems, food and beverage equipment, cleaning and sanitizing systems, industry
Features
1.The pump head with new quick disassembly and assembly structure,stable and reliable, convenient to repair and maintain
2.Compact structure, single pump takes up less space
3.Compatible to multiple specifications of tubes, covering a wide range of flow rates
4.Transparent pump cover allows for real-time monitoring of pump operation
5.Installation method can be customized
SPECIFICATIONS
| Item | Details |
|---|---|
| Model | P601DB |
| Installation Method | Stainless steel mounting plate as standard (customizable) |
| Motor Type | Brush DC motor |
| Control Method | Power-on operation |
| Function | Fixed flow rate |
| Working Voltage | DC12V, DC24V |
| Power | ≤32W |
| Weight | 670 g |
| Working Environment | Temperature: 0-45℃; Relative Humidity: <85%RH |
| Rollers | Standard with 3 rollers |
FLOW RATE: ml/min
| Voltage | Flow Range | Tube Size | Tube Type |
|---|---|---|---|
| DC12V, DC24V | 330 ~ 1915 | 26# | BPT Tube / Silicone Tube / A60-F / Viton Tube |
| DC12V, DC24V | 560 ~ 2930 | 35# | BPT Tube / Silicone Tube / A60-F / Viton Tube |
| DC12V, DC24V | 725 ~ 4200 | 36# | BPT Tube / Silicone Tube / A60-F / Viton Tube |

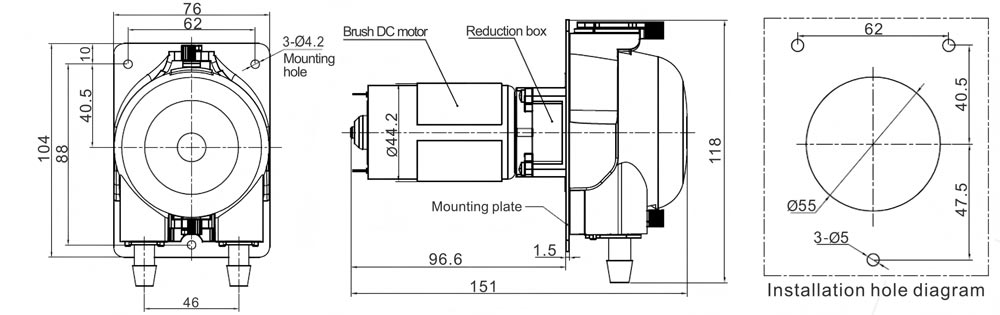

MOUNTING DIMENSION: mm
Remark
The above flow parameters are tested under the conditions of room temperature 23℃, standard atmospheric pressure, clean water, suction lift 0.2m, lift 0, and no pressure. For reference only.
Pump flow rate can be affected by viscosity, density, medium temperature, ambient temperature, inlet and outlet pressure, suction lift and lift of pump. To ensure the accuracy of the pump, it is necessary to keep the above factors without significant changes.
Cleaner Transfer Process
The liquid does not contact internal pump components.
Suitable for Various Liquids
Compatible with different tubing materials for diverse media.
Built for Automation Equipment
Designed for dosing, circulation, and transfer systems.
Easy Replacement Structure
Tubing maintenance can be completed efficiently.
Stable Working Condition
Supports repeated start-stop and continuous use.
Customizable Configuration
Flexible options for connectors, accessories, and power supply.
A range of tube materials is available to handle a range of different chemicals as well as hygienic options for food and beverage dispensing.
Food Machinery
Drink dispenser
Detergent supply
Dish-Washing machine,
Washing machine Analytical Equipment
Analytical &testing instrument sample supply
Printing Equipment： Ink Supply
Kitchen Apparatus
Laundry Apparatus
Car Washing Equipment Analytical Apparatus
Drink machine
Drinks dispensing
Beverage Dispenser
Soda beverage fountains
Beer brewing equipment
Coffee machine
Ice cream dispensing
Blood diagnostic equipment
Vegetable cultivation
Indoor growing shelves
Indoor Farming
Vertical Farming
Commercial washing machine
Medical device
Water treatment
Gas analysis
Printing machine
Aquarium
Hydroponics
Agriculture plating
Lab sampling
Dishwasher
Robot Sweeper
Swimming Pool
1. What is a peristaltic pump?
A peristaltic pump is a type of positive displacement pump that transfers liquids through flexible tubing. The liquid only contacts the tube, making the pump suitable for applications requiring clean, contamination-free liquid transfer.
2. What liquids can the LFP601DB peristaltic pump transfer?
The LFP502DB peristaltic pump is suitable for transferring various low-viscosity liquids, including water, nutrient solutions, detergents, cleaning liquids, inks, beverages, and other compatible fluids. Tubing material should be selected according to the liquid properties.
3. Does the liquid come into contact with the pump mechanism?
No. In a peristaltic pump, the liquid flows only through the tubing and does not contact internal pump components. This design helps reduce contamination and simplifies maintenance.
4. Can the LFP601DB peristaltic pump run dry?
Peristaltic pumps can generally tolerate short periods of dry running because the liquid is contained inside the tubing. However, extended dry operation may reduce tubing life and is not recommended.
5. How often should the tubing be replaced?
Tubing replacement intervals depend on operating conditions, running time, liquid type, pressure, and tubing material. Regular inspection is recommended to maintain optimal pump performance.
6. Is the LFP601DB suitable for continuous operation?
Yes. The LFP601B DC peristaltic pump is designed for repeated and continuous liquid transfer applications. Actual service life depends on operating conditions and system design.
7. Can the pump be customized?
Yes. LEFOO supports OEM and customization services, including voltage options, tubing materials, connectors, mounting configurations, and application-specific requirements.
8. What applications is the LFP601DB peristaltic pump commonly used for?
The LFP601DB is widely used in chemical dosing systems, water treatment equipment, food and beverage processing machinery, laboratory instruments, industrial automation equipment, and liquid transfer systems that require stable and repeatable flow performance.
9. What are the advantages of the LFP601DB precision peristaltic pump?
The LFP601DB combines precise flow control, self-priming operation, easy tube replacement, and contamination-free liquid transfer. Its wide flow range and multiple tubing compatibility make it suitable for both dosing and continuous liquid transfer applications.
10. Why choose the LFP601DB for liquid dosing and transfer systems?
The LFP601DB is designed for applications requiring stable flow delivery, reliable operation, and flexible system integration. Since the liquid only contacts the tubing, the pump helps reduce contamination risks while simplifying maintenance and improving system reliability.
