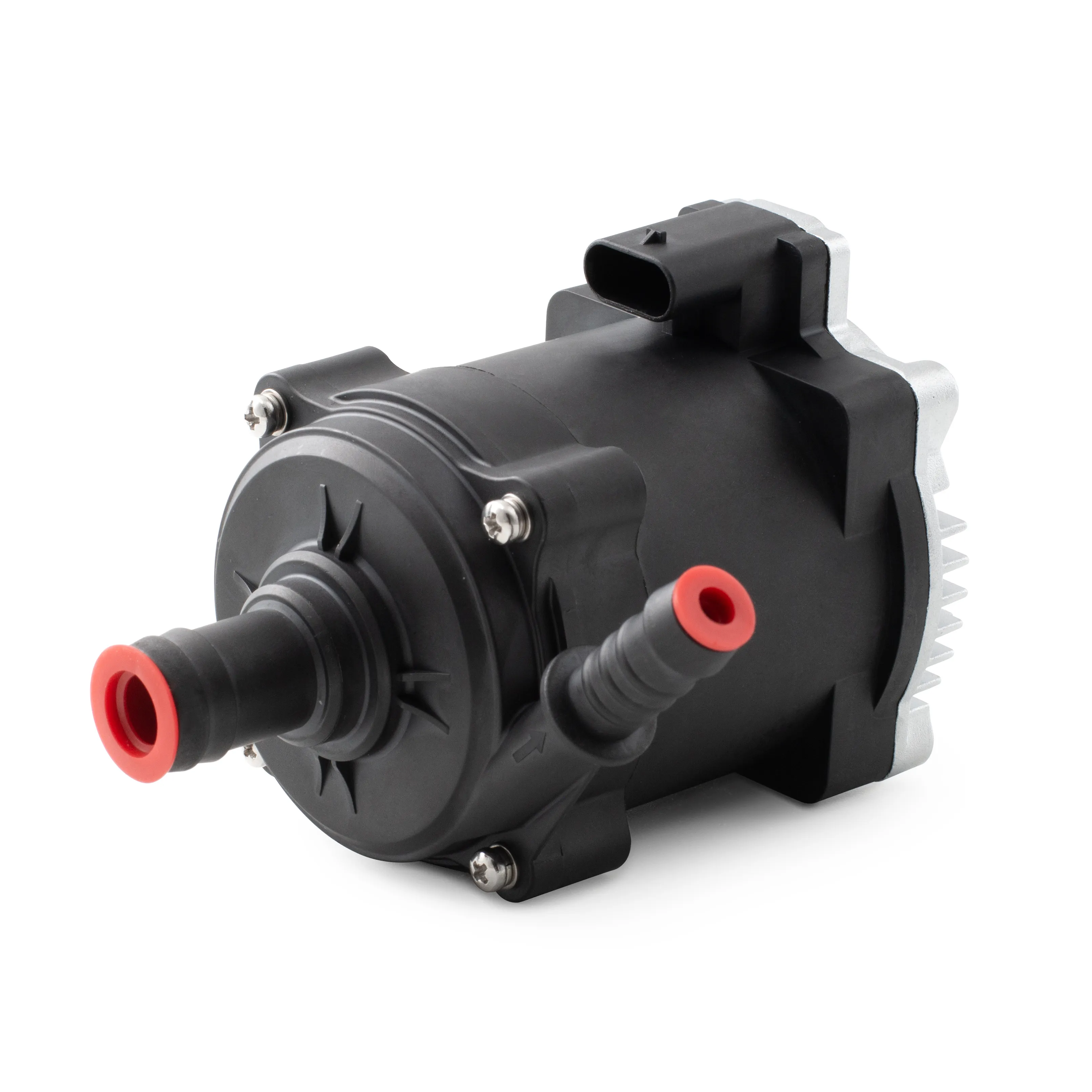

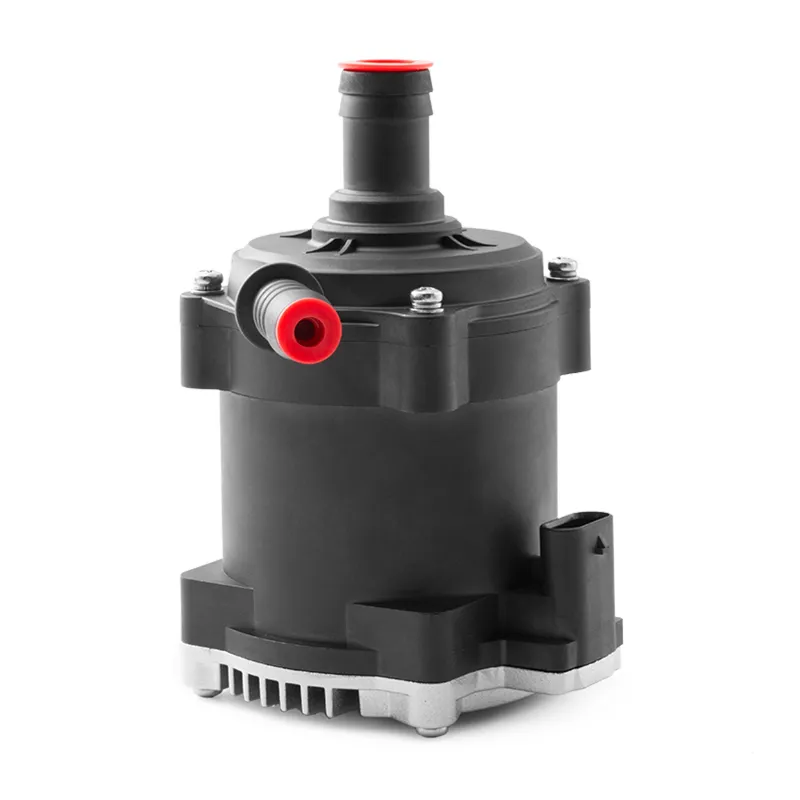

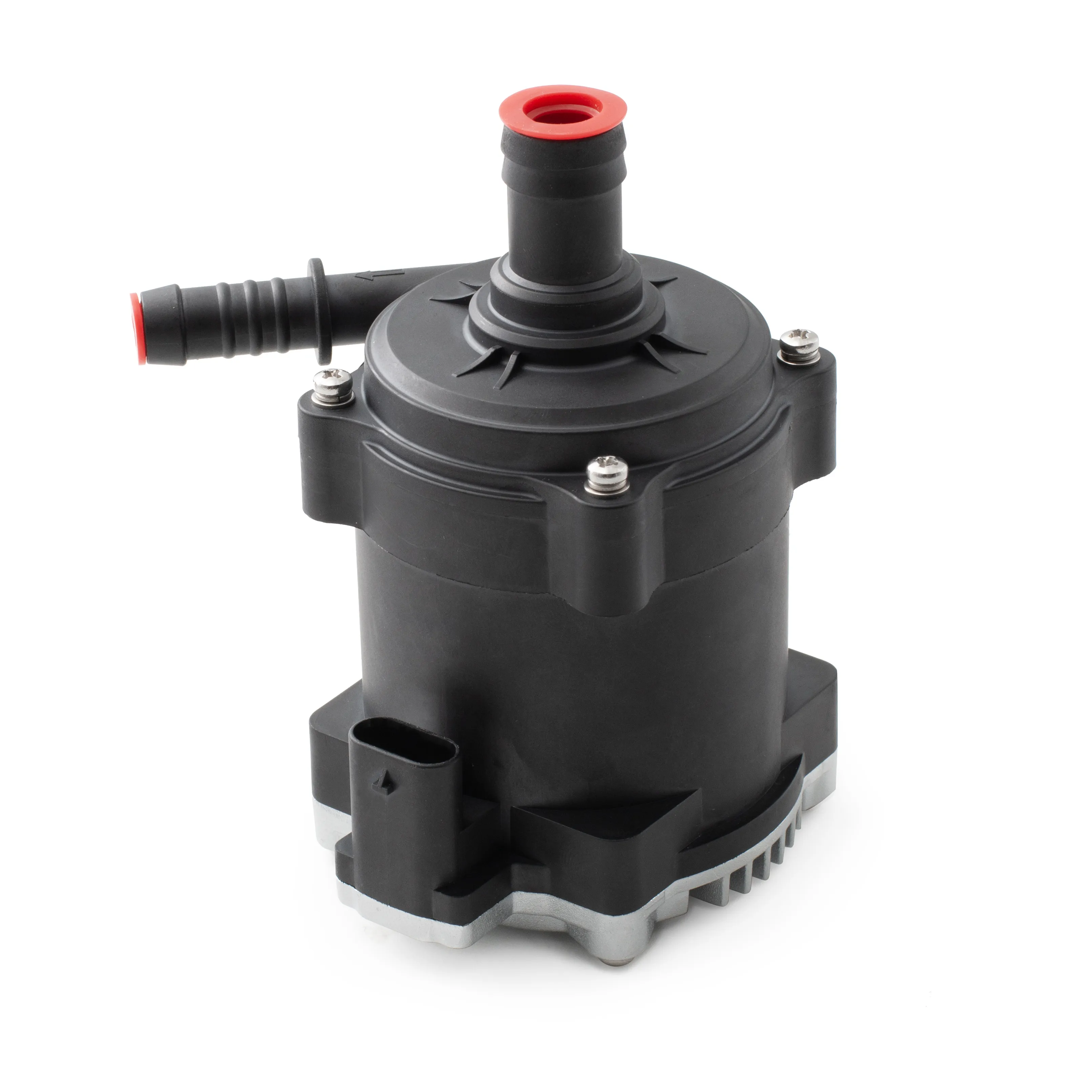

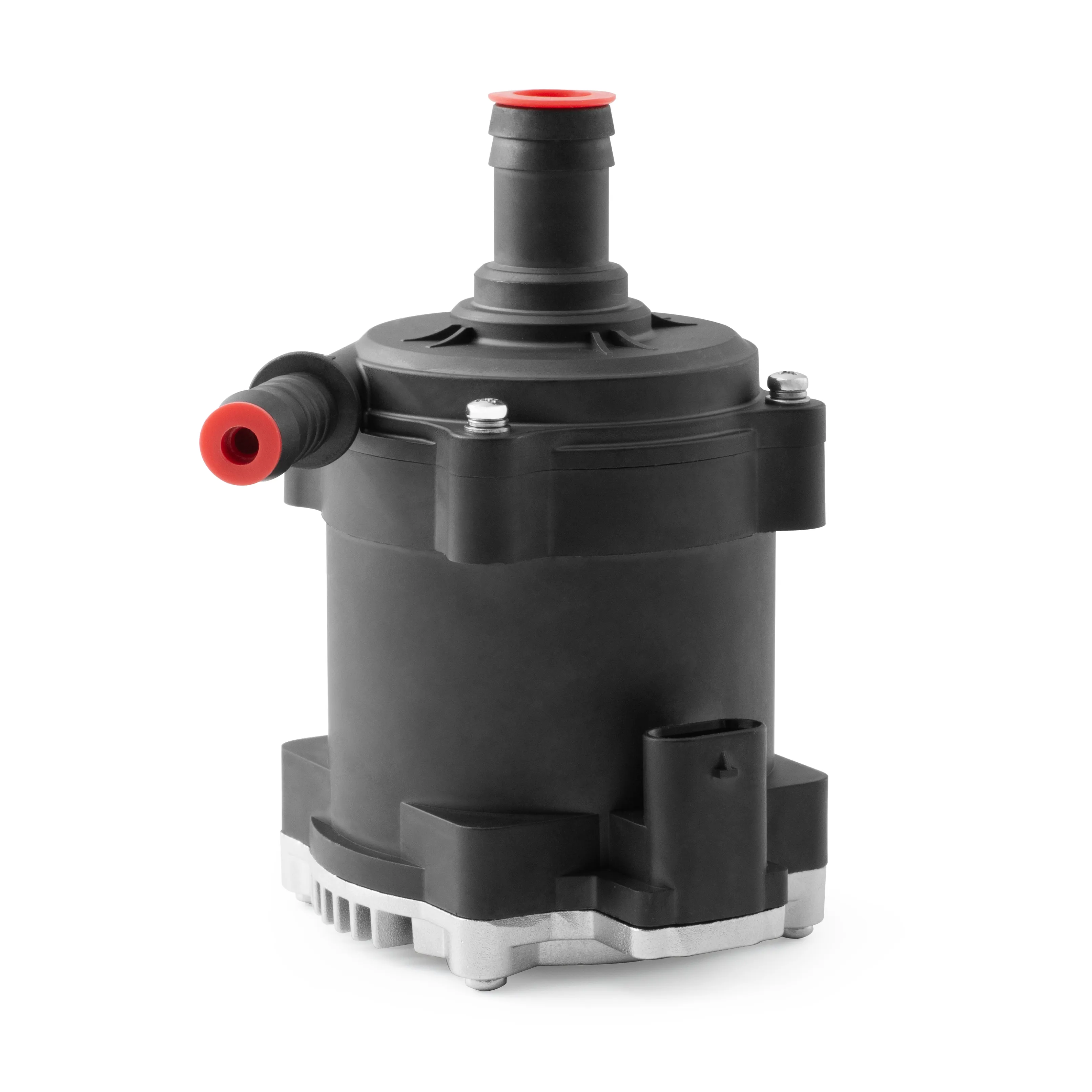

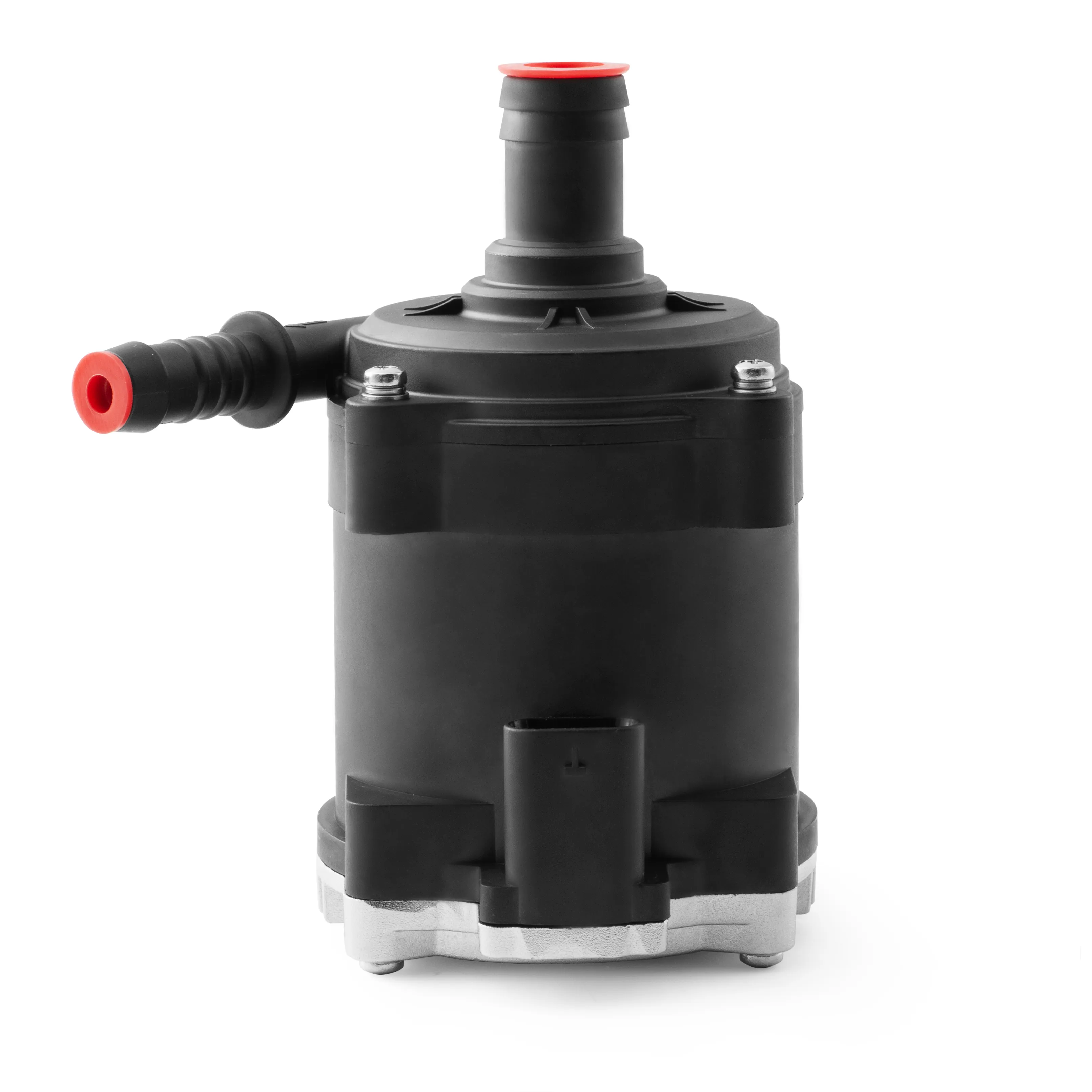

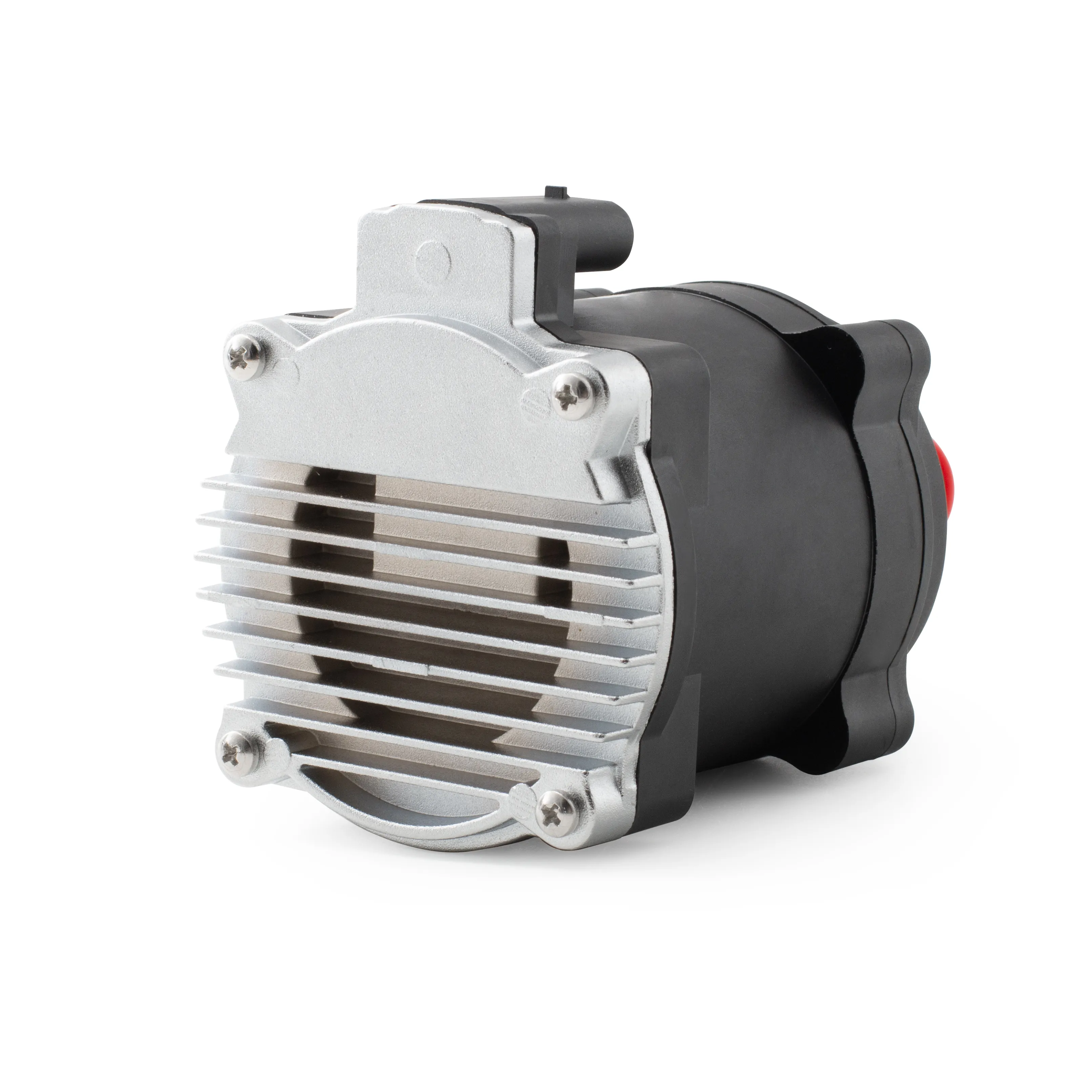

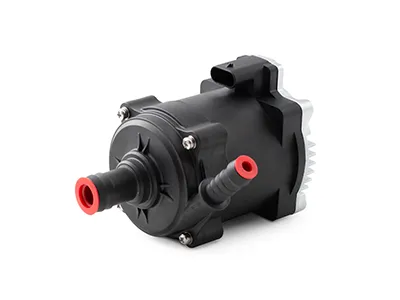

Lefoo Brushless Circulation Pump for Charging Pile

Name: Brushless Circulation Pump for Charging Pile
Brand: LEFOO INDUSTRIAL CO.,LTD.
Rating: 4.8 (50 reviews)

Liquid-cooled EV charging cable requires reliable thermal control. Our BLDC circulation pump delivers stable flow, high efficiency, and long lifespan. With precise speed control and compact design, it ensures safe cooling for high-current fast charging systems.

Get a Quote

Pump

Transmitter

Specification
Features
Applications

Specification of Brushless Circulation Pump for Charging Pile

TECHNICAL PARAMETER

Model series	Product Model	Rated voltage（VDC）	Flow rate （L/Min）	Lift (M)	Maximum Current（A）	Maximum Power（w）	Debugging function
LFP0XXB0-060N	LFP062B0-060N	12	14	16	5.2	62	Optional PWM/ 5V speed control
	LFP070B0-060N		15	18	5.8	70
	LFP083B0-060N		15	20	6.9	83
	LFP090B0-060N		15	24	7.5	90
LFP1XXB0-060N	LFP162B0-060N	24	14	16	2.6	62
	LFP170B0-060N		15	18	2.9	70
	LFP183B0-060N		15	20	3.5	83
	LFP190B0-060N		15	24	3.8	90
Pump Type	Single-stage centrifugal pump, hermetic impeller
Ambient temperature	-40℃~+60℃ (Non-icing)
Medium temperature	-40℃~+90℃ (Non-icing)
Applicable Media	Water and ethylene glycol free of solid particles and magnetic particles
Operating Voltage range	9~16V
Insulation class	F
Protection class	IP67
Life span	20000H
Environmental Requirements	No direct sunlight or ultraviolet radiation, and the site has no magnetic source. Ambient humidity below 95%RH.
Protective function	Reverse connection protection; Overvoltage protection; Undervoltage protection; No-load protection; Locked rotor/overcurrent protection; Overtemperature protection.

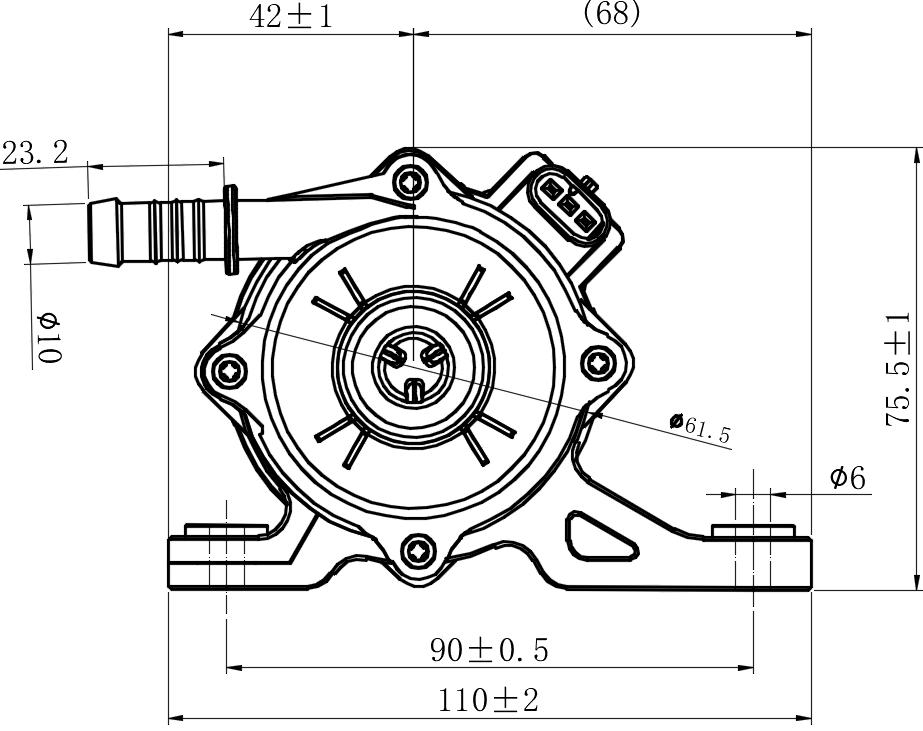

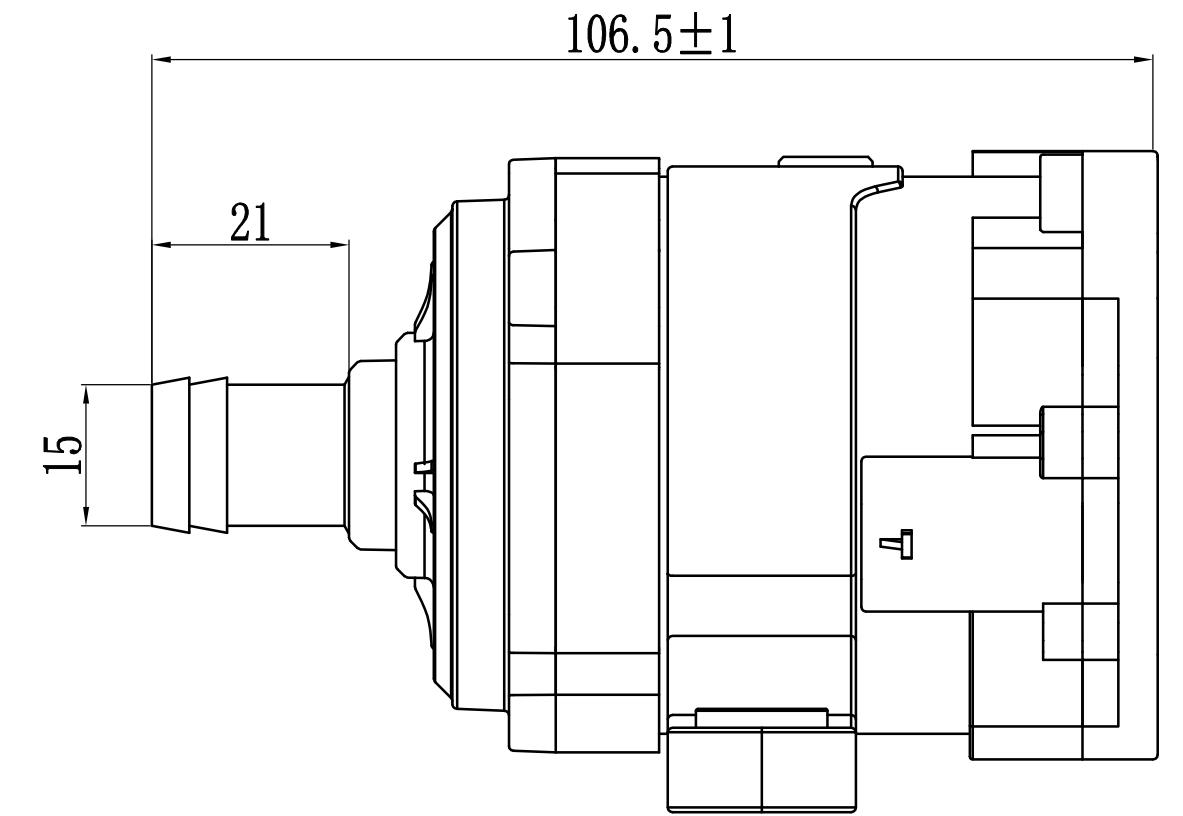

SIZE CHART(diameter: MM)

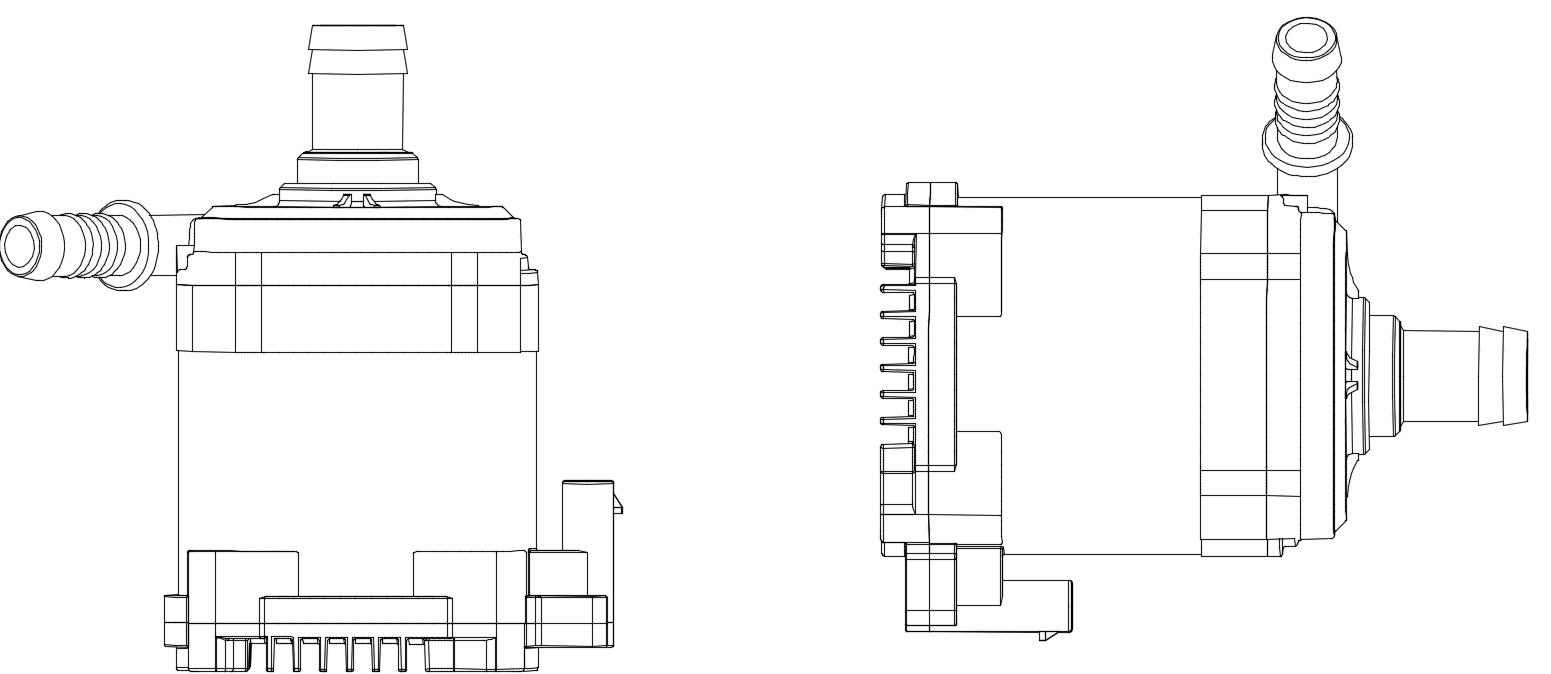

INSTALLATION

Features of Brushless Circulation Pump for Charging Pile

Long lifetime: Matching three-phase brushless DC motor and self-lubricating rotating structure, with better flow and lift performance consistency. lifetime is over 20,000 hours.Premium Material: Using aluminum alloy back cover, car-grade chips and MOS, the quality is more reliable.
Brand new hydraulic design: higher efficiency and lower power.
Large flow rate, High lift of pump: Using high-efficiency closed impeller and intelligent control motor, the flow and lift performance is more stable and the lift of pump is higher.
Customized is available: Can be customized functions like PwM speed control, 0-5V speed control, etc.
Full protection functions: Reverse connection protection; Overvoltage protection; Undervoltage protection; No-load protection; Locked rotor/overcurrent protection; Overtemperature
protection.
Certifications: Compliant with CE, RoHS, FDA, CQC certifications.

Applications of Brushless Circulation Pump for Charging Pile

Cooling system for computer
Fruit, and vegetable washing machine
Intelligent toilet
Dishwasher
Boosting system
Water circulation
Beverage industry
Solar fountain
Mini fountain on the table
Artwork
Coffeemaker
Water dispenser
Tea device
Pumping wine into the cup
Taking shower
Water heater pressure
Water heater circulate
Swimming pool circulate
Massage and surfing in the bathtub
Cooling system circulates for car
Greaser
Humidifier
Air conditioning equipment
Washing machine
Medical apparatus and instruments
Coolant system
Bathroom products
