LEFOO High-Temperature Brushless DC Water Pump for Multiple Applications

LEFOO High-Temperature Brushless DC Water Pump, Suitable for Multiple Applications Including Water Heaters and Smart Toilets

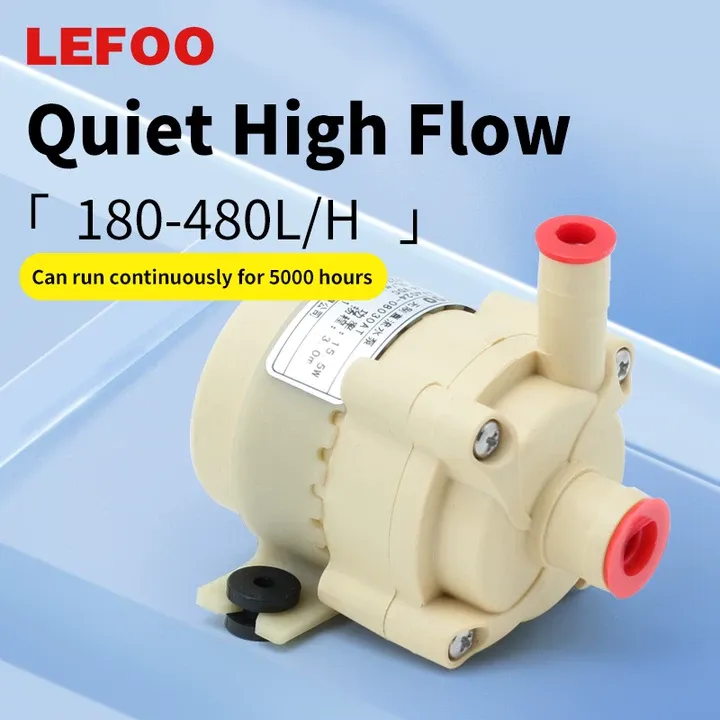

The LFP40 Series High-Temperature Brushless DC Water Pump complies with CE and RoHS certifications, with a flow rate of 3–8 L/min and a maximum head of 4 meters. The pressure-bearing components are made of polymer plastic, and the static seal design ensures leak-free operation. The Circulation water pump is equipped with a low-noise DC motor and features multiple protective functions. The voltage and flow rate are customizable. The brushless DC pump is compact and lightweight, with an operating ambient temperature range of -20 to +40°C and a fluid temperature range of -20 to +105°C. It operates on a voltage range of 8–30 VDC, has a service life of 5,000 hours, an insulation class of F, and optional protection ratings including IP55 and IP65.

Key Product Features

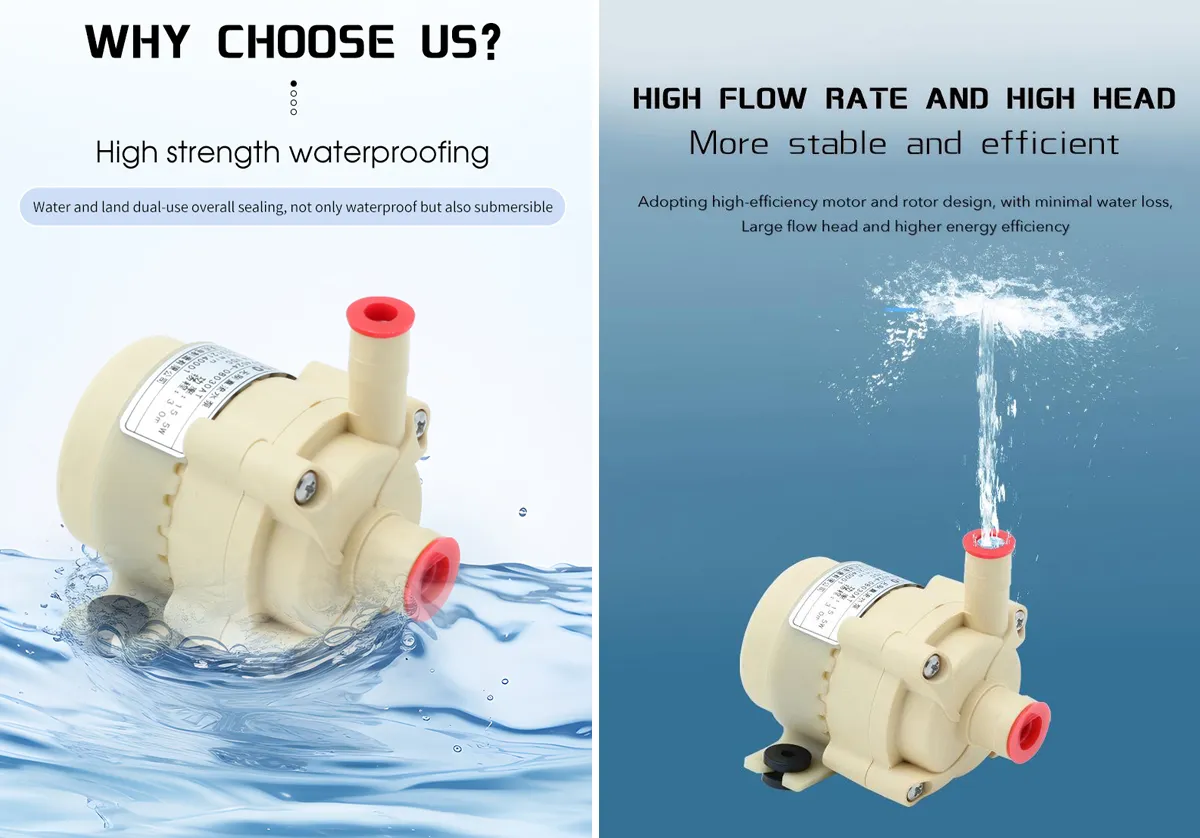

With its Brushless DC Circulation Water Pump, high flow rate and head, and high-quality materials, this DC water pump addresses the pain points of traditional pumps—such as rust, excessive noise, bulky size, and poor craftsmanship—making it a reliable amphibious pump.

Diverse Application Scenarios

This Brushless Centrifugal DC Pump can be widely used in various fields such as water heaters, chillers, smart toilets, and charging stations, covering multiple scenarios including hot water circulation, refrigeration, bathroom fixtures, and new energy charging, and is capable of meeting the water and thermal management needs of related equipment.

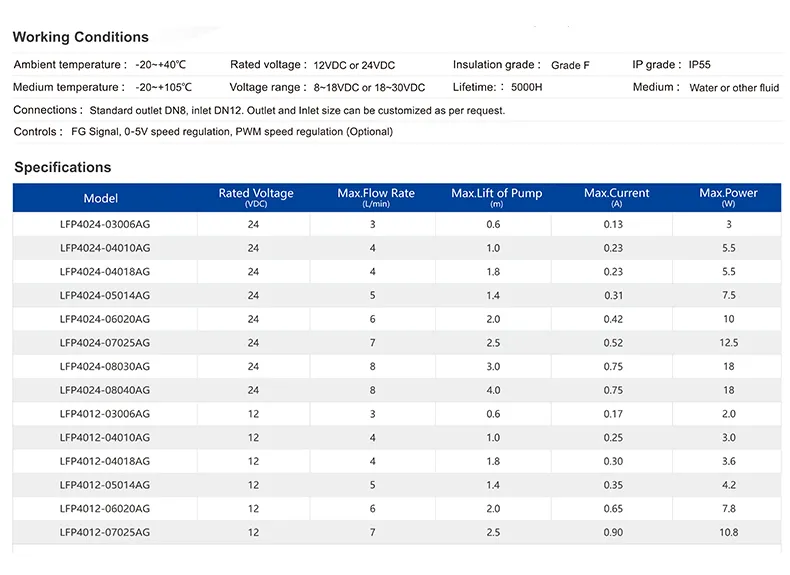

Product Specifications

This Brushless DC Water Pump typically operates at 12V/24V, with a flow rate range of 3–8 L/min. It features a long service life of up to 5,000 hours, a maximum head of 4 m, and is designed for media temperatures ranging from -20°C to +105°C. The Circulation Water Pump has an insulation class of F and offers optional features such as FG signal feedback, 0–5V speed control, and PWM speed control.

Company Profile

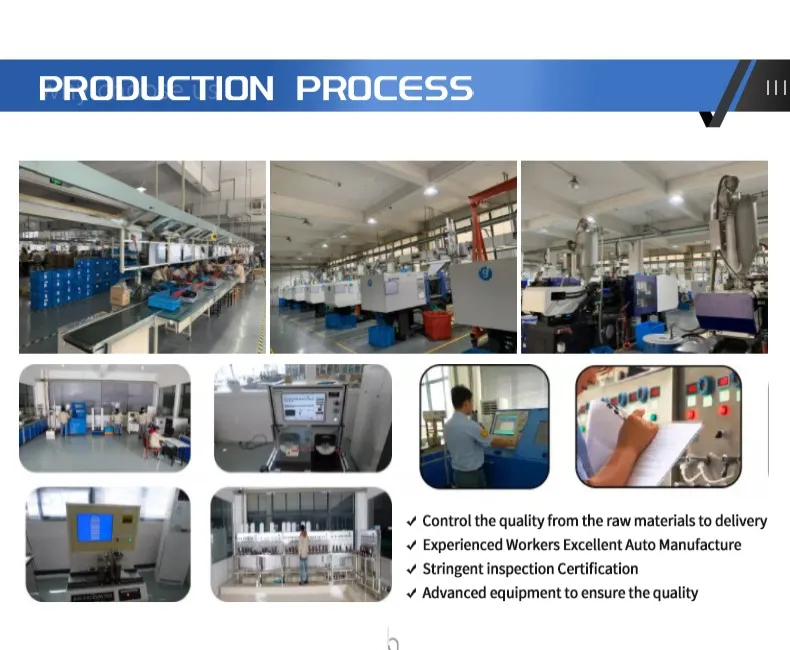

Founded in 2000, LEFOO is a high-tech enterprise integrating R&D, manufacturing, and sales, and has been recognized by the Ministry of Industry and Information Technology as a “Specialized, Refined, Distinctive, and Innovative” (SED) “Little Giant” enterprise. The company’s high-end equipment components are widely used across various industries, including food and beverage, smart devices, home appliances, healthcare, and data centers. Additionally, the company participates in numerous domestic and international trade shows, fostering friendly exchanges with global partners and establishing deep collaborative relationships.

If you have any needs related to your project, please feel free to contact us. We will provide you with professional technical support.
