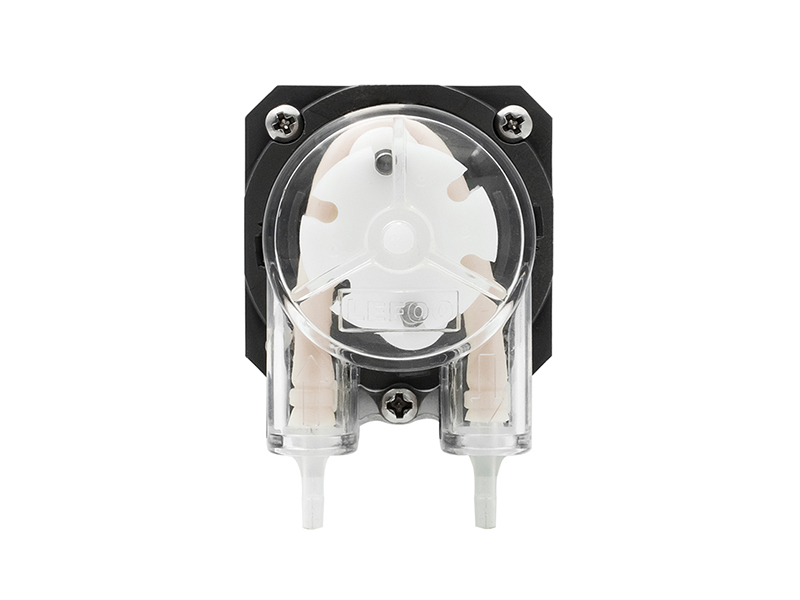

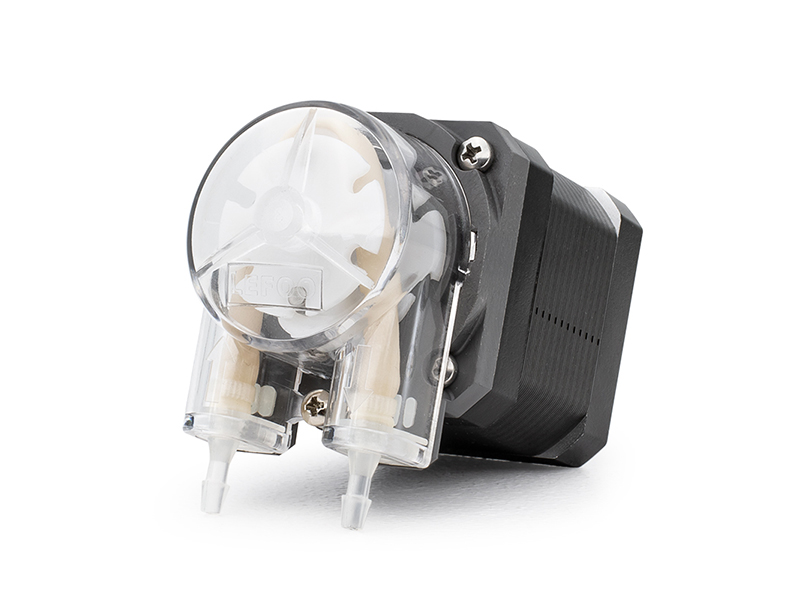

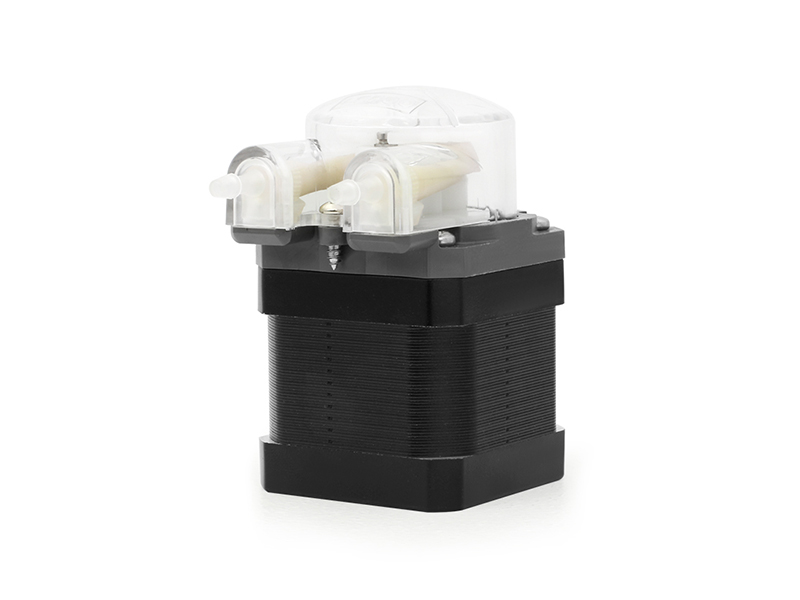

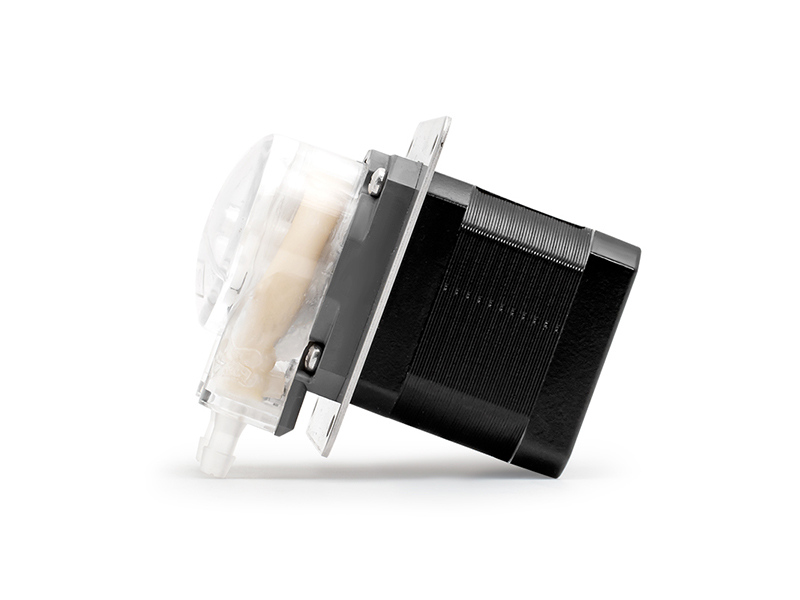

Stepper Motor Peristaltic Pump LFP101/ST

Are you searching laboratory peristaltic pump in a small size?  LEFOO peristaltic pump with stepper motor brings out accurate electro lab peristaltic pumps for school laboratories and Personal research for students majoring in chemistry and biopharmaceutical. The pump dosing acid, alkali, and sterile fluids, or chemical aggressive solutions. The pump is capable of a wide range of hose types that can be liquids of different viscosity and temperatures. Pump series are produced in a robust design with a quick-change pump head, with no leakage pollution which meets safety class IP65.


Features


*Easy upkeep low noise

*Optional Brushless/Stepper Motor

*Simple setting and  Easy Mounting

*Optional various soft tubes

*No pollution Easy Maintenance

*High temperature/Chemical resistant

*Can transfer liquid, gas, solid


As a peristaltic pump manufacturer, LEFOO opened a new pump lab with complete testing equipment for mass samples experiments. Resident engineers will monitor pressure, flow, voltage, ampere, motor torque, and soft tubes durability in every customized process.  We also have office engineers that offer free expert advice, free suggestion for professional use capable of application in household cleaning appliances and beauty equipment.



Specification of Stepper Motor Peristaltic Pump LFP101/ST

Technical parameter

LEFOO Stepper Motor Peristaltic Pump LFP101/ST

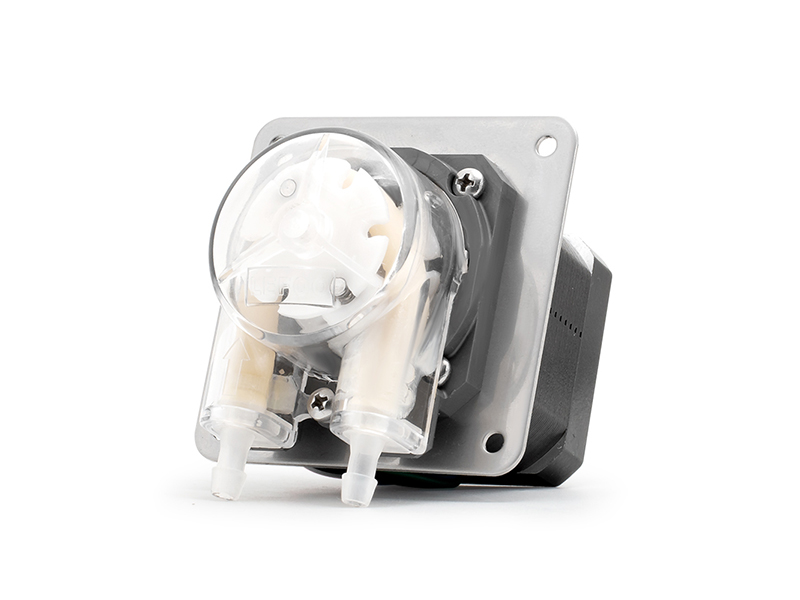

Installations methodStainless steel mounting plates available(customizable)
Drive modeStepper motor
Control methodDrive control (with driver optional)
FunctionPrecise flow rate adjustment
Working VoltageDC24V
Power≤10w
Outlet pressure≤0.17MPa
Working environment

Temperature:0-60℃

Relative humidity:<85%RH

Roller QuantityStandard 2 rollers (support 3 rollers)

Flow standard(ml/min)

VoltageFlowTube sizeTube material
24V1-552*4BPT
2-1753*5
5-2604*6
1-402*4Silicone
2-1503*5
3-2354*6
1-502*4A-60-G
2-1703*5
4-2504*6
1-402*4Fluorine
1-1603*5
3-2404*6

Dimension(mm)



Features of Stepper Motor Peristaltic Pump LFP101/ST

  • Convenient start/stop, speed increase/decrease, rotate forward/reverse

  • Low noise, quiet and stable, suitable for home use

  • Support PLC control

  • Installation can be customize


Applications of Stepper Motor Peristaltic Pump LFP101/ST


General Specifications

Recommended installation height

2.0m max

Liquid temperature range

5 to 50℃(41°F to 122°F)

Specified environment temperature range

0 to 50℃(32°F to 122°F)

Specified ambient humidity range

20% to 80%(with no condensation)


Certification & Approvals

LEFOO General Specifications LFP101/ST



Applications

A range of tube materials is available to handle a range of different chemicals as well as hygienic options for food and beverage dispensing.

Food Machinery

Drink dispenser

Detergent supply

Dish-Washing machine,

Washing machine Analytical Equipment

Analytical &testing instrument sample supply

Printing Equipment: Ink Supply

Kitchen Apparatus

Laundry Apparatus

Car Washing Equipment Analytical Apparatus




1. When selecting a tube, the customer should perform a verification test to verify the chemical suitability according to the usage environment and the intended application

2. Regardless of the pump tube type, the phenomenon of peeling from inside of the tube starts with small amounts

3. This Product is not designed for medical use. Do not use it for medical applications.

4. This product is not waterproof. The use in a water-filled environment requires water-proof systems or designs.

5. Numerical dates listed in this catalog reflect conditions measured over a short period of time. Their accuracy for long-term use is not assured.

6. There is a tendency for the flow rate to increase until the tube becomes acclimated, and even among the same model, different lots may have a different flow rate within the specified tolerances, Also, the rotating speed of the DC motor may fluctuate depending on the load condition and changes in the motor temperature. During the design stage, be sure to select a motor with ample capacity.
