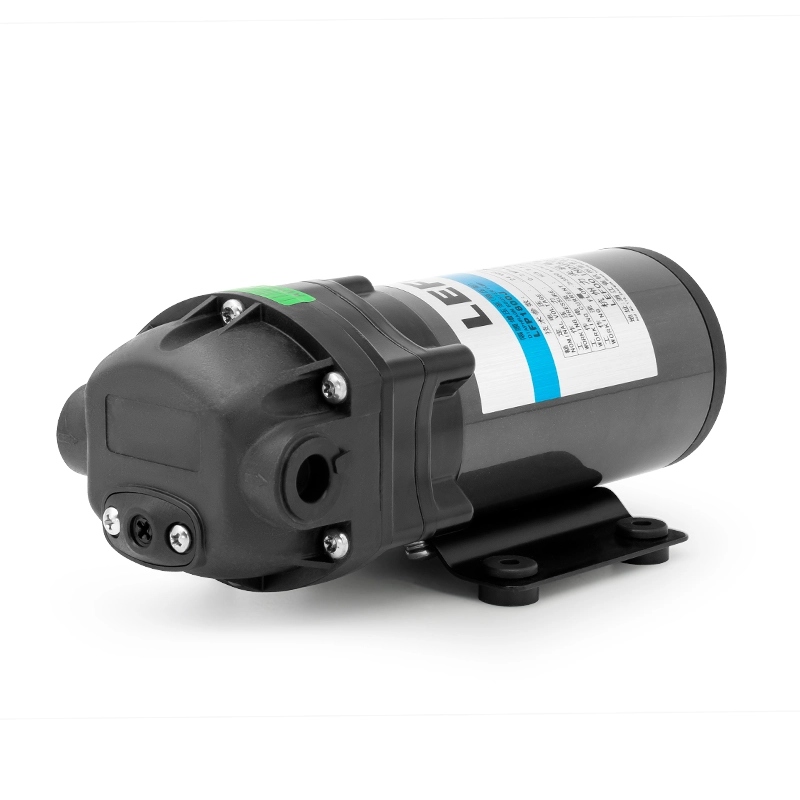

Lefoo 24VDC 800GPD RO Booster Pump

Name: 24VDC 800GPD RO Booster Pump
Brand: LEFOO INDUSTRIAL CO.,LTD.
Rating: 4.8 (50 reviews)

The 800 GPD RO booster pump offers stability and reliability. Its one-piece, piston diaphragm design substantially increases the water pressure and water flow, while reduces the potential for leaks. It can add pressure to incoming city water pressure. This enables your pure pure water machine engineers to design RO systems with precise TDS controls and production rates on large commercial pure water machine for 800-1000 people.

Get a Quote PDF Download

Pump

Transmitter

Specification
Features
Applications

Specification of 24VDC 800GPD RO Booster Pump

TECHNICAL PARAMETER

LEFOO 24VDC 800GPD RO Booster Pump
The pumps are capable for water purifiers with a clean water production of 800 gallons per day

Model	LFP1600W-A	LFP1800J	LFP1800J-V	LFP1800J-V1	LEP1800W
Voltage	24V DC
Inlet Pressure	0.2Mpa
Working Pressure	0.7Mpa
Working Current	≦4.5A	≦3.8A		≦4.0A
Working Flow	≧3500ml/min	≧3500ml/min		≧4000ml/min
Open Flow	≧6000ml/min	≧4500ml/min		≧5000ml/min	≧6000ml/min
Bypass Pressure	0.85~1.05Mpa	0.9~1.2Mpa	1.0~1.2Mpa	1.05~1.2Mpa	0.95~1.15Mpa
Maximum Current	≦5.0A	≦4.5A	≦4.7A	≦5.0A
Connection	3/8"NPT 3/8"NPT "0" 3/8"Side Female Quick Connector 3/8"Top Female Quick Connector
Certifications	NSF, CE, ROHS, REACH, EU Food Grade

Features of 24VDC 800GPD RO Booster Pump

*High water preventing level.

*Compliant with CE, Rohs, CQC certifications.

*Large flux water outlets with stable pressure and long working life.

*Compact structure consists of robust plastic and metal components.

*DC Powered strong impetus motor with low noise, low vibration level.

*Whole process quality controls in processes of electrical, sealing, and pressure boosting.

Applications of 24VDC 800GPD RO Booster Pump

Water Treatment/RO

Carbonation Systems

Beverage/Coffee Systems

Water Vending, Dispensing

Hydroponics/Aeroponics

Misting Systems

Surface Sanitation

Humidification

HVAC Coil Cleaning

Medical Lab Water

Autoclave Systems

Endoscope Reprocessing/Chemical Boost

Dialysis Chemical Injection

Methanol & Water Injection

Sparkling Water Machine

Commercial Sparkling Water Machine

Commercial Carbonated Water Machine

Carbonation Systems

Commercial Water Dispenser

Water Dispensers

Soda Machine

RO Purifier

RO Water Dispenser

Water Coolers

Misting System

Teeth Cleaning Industry
