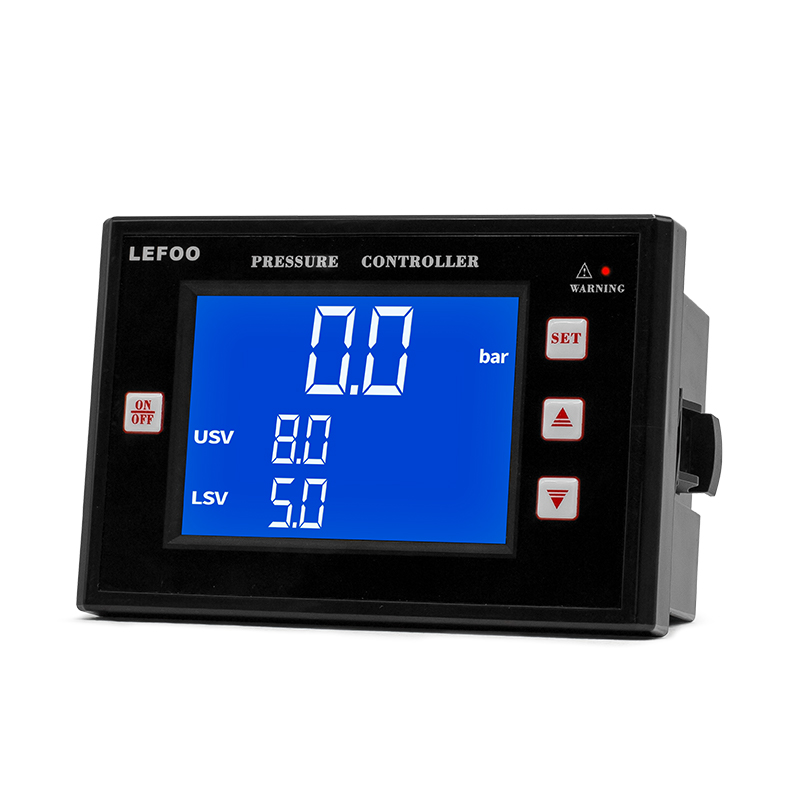

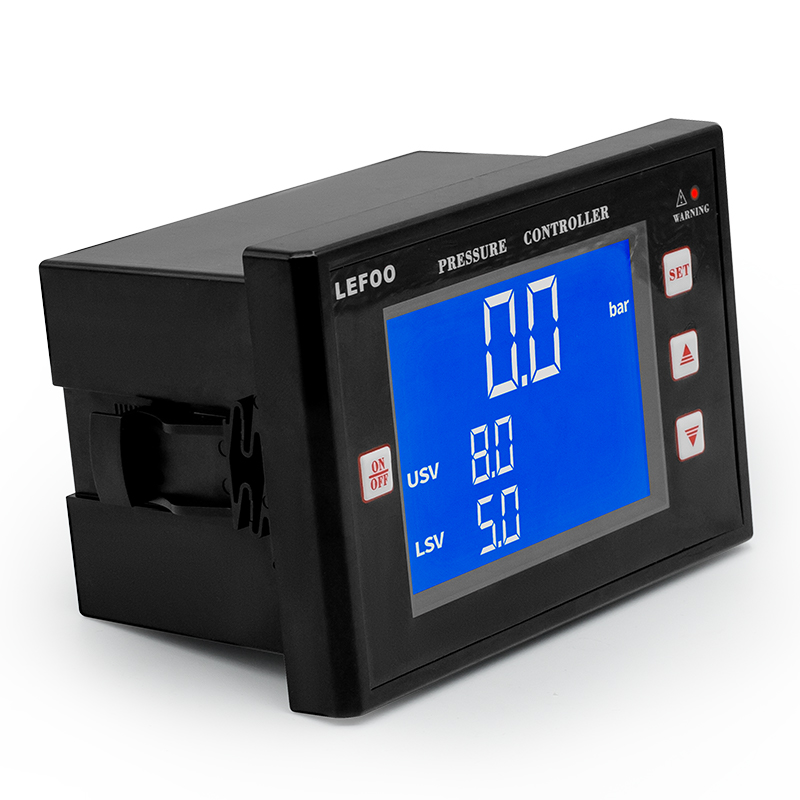

Lefoo Pressure Switch Controller LFDS65

Name: Pressure Switch Controller LFDS65
Brand: LEFOO INDUSTRIAL CO.,LTD.
Rating: 4.8 (50 reviews)

LFDS65 (650/652) series intelligent pressure controller is an intelligent control instrument that integrates pressure measurement, large LCD screen display, and control ability. The instrument can automatically open/close relay output according to the pressure state in the vessel to ensure the pressure condition in the vessel. digital pressure switch has the characteristics of simple operation, clear display, anti-vibration, high control precision, and long service life.

Feature

* Digital LCD

* Adjustable working parameters

Get a Quote PDF Download

Transmitter

Pump

Specification
Features
Application

Technical Parameters of Pressure Switch Controller LFDS65

Type of pressure	Vacuum type (negative pressure)	Medium pressure
Pressure range	-101~0 Kpa	0~1.6 MPa
Voltage withstand	1.5 times	2 times
Media	Non-corrosive gases
Display mode	LCD
Measurement methods	Table pressure
Rated operating voltage	VAC 220/110
Output mode	Relay switch output / AC output
Load capacity	2200W( Single Route)
Storage temperature	－40℃~85℃
Operating temperature	－10℃~50℃
Protection level	IP 54
Installation interface	NPT1/4 external thread, G1/4、R1/4( optional)
Special functions	Regular/customized
Precision	±1%F.S

How to Select

Code and description							Remarks
LFDS65	Pressure Controller						Model
	2	0~1.6 MPa					Pressure Range
	0	-101~0 Kpa
		S	Single Switch Output				Output type
		A	Single AC output
			R	Routine			Special functions
			J	Custom customization
				Blank	NTP1/4( Default)		Pressure connection
				G	G=G1/4
				R	R=R1/4
					220V	AC220V	Power supply
					110V	AC110V
LFDS65	2	S	R	G	220V		Example of selection

Dimension

LEFOO Dimension LFDS65

Features of Pressure Switch Controller LFDS65

Easy and flexible to install, Easy and safe access
Super LCD display, rich in function
High precision, vibration resistance, long lifetime
Intelligent control instrument

Application of pressure switch controller LFDS65

Automatic control for Air compressor, Air Vacuum pump, Water Boost Transfer pump
