The Well water pump pressure switches 40-60PSI lf16 adjustable pressure, LEFOO provides time-tested, reliable control for automatic water systems. The switch is universally acceptable for use as original equipment on water well pumps or pumping systems. Water pump pressure switches suitable for use on all types of pumps including jet, submersible, and reciprocating. 2 poles, plastic enclosure, diaphragm actuated. Individually boxed. Blue / Black color BPA-free plastic enclosure.
This pressure switch signals the pump to start when the water system drops to 40 psi (factory set) and stops at 60 psi (factory set). This switch is to be used with submersible well or jet pumps. Water pump pressure switch can be wired 115-Volt or 230-Volt. This switch must be used in conjunction with a well pressure tank. The air pressure in the well tank, when empty of all water, must be set to 38 psi or the switch will not operate properly.
Turns pump on at 40 psi, off at 60 psi
Cap removes for easy adjustment
Can be wired 115-Volt or 230-Volt
For use with submersible well or jet pumps
Motor wires are connected to the 2 middle posts (color does not matter)
Breaker box wires are connected to 2 outside posts (color does not matter)
The 2-spring design allows for adjustment of cut-in and cut-out pressure settings
Adjustments to springs should only be made by users with good knowledge of well systems

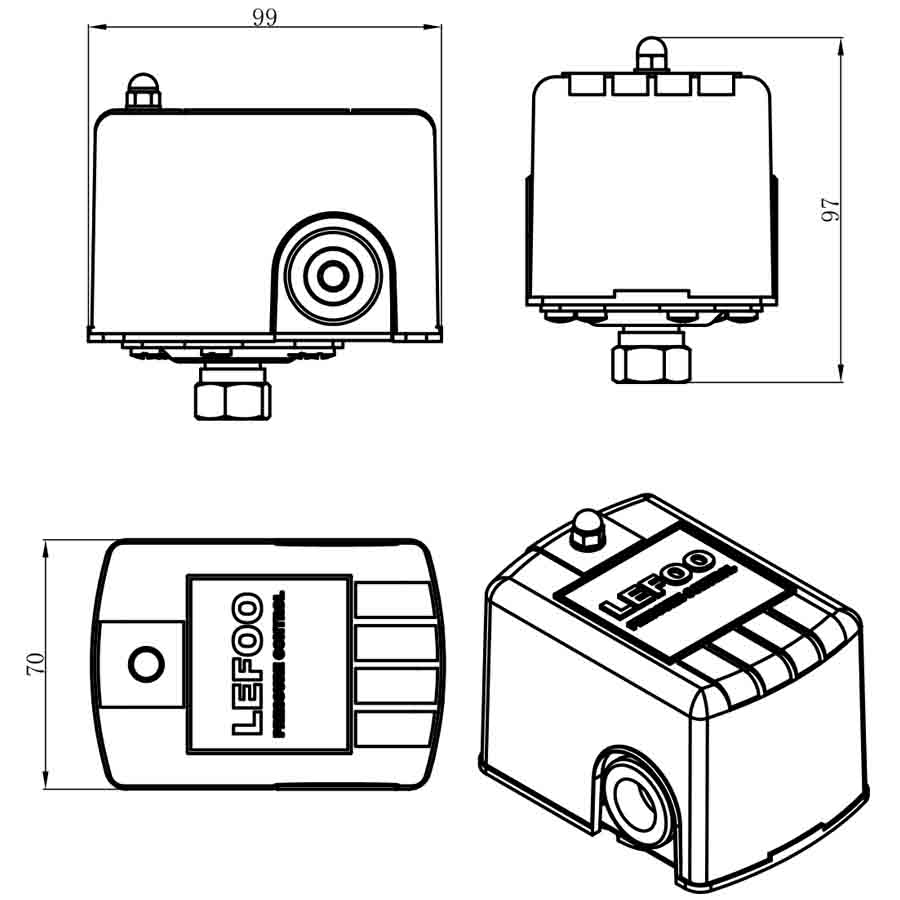

|Model||Min On (Cut-In) psi||Min Off (Cut-Out) psi||Differential psi||Factory Setting psi||Electrical Rating 1Phase 3Phase 120VAC 240VAC 240VAC||Contact Arrangement||Connection|
|LF16||20||80||15- 30||20-40||2HP||3HP||5HP||NC||1/4 Male or Female NPT|
|Model Select Example|
Cut in 30 psi, Cut off 50 psi
PPO/ABS plastic casing and BPA Free
Durable Silver cadmium oxide alloy and Red copper Components
Manufacturer more than 20 years and various of certificatiions
A well water pressure switch helps to control a well pump system which helps provide water to a household or business. The pressure switch has a spring on the inside that’s connected to electrical contacts. As time goes on, the spring becomes weak and the electrical contacts wear out which can make it seem that your pump isn’t working quite right.
It is used with submersible well pumps and jet pumps.
These numbers represent the pressures that your pressure switch is tuned to in the waterline. The first number is what tells the pressure switch to send a signal down to your pump to turn on. The second number tells the pressure switch to send a signal down to your pump to turn off. You may hear the terms “cut-in pressure” and “cut-off pressure” = cut-in pressure/cut-off pressure.
When you open up a faucet the pressure drops. For example, on a 40/60 pressure switch (the most popular option) a home’s water pressure sits at 60 psi. When someone opens up a faucet, it goes from 60 psi down to 40 psi. The pressure switch senses the drop to 40 psi and that’s when it sends an electrical signal down to the pump to turn on. When you turn the faucet off, the pump will continue to pump until the pressure gets back to 60 psi and that’s when the pressure switch will send a signal to your pump to turn off.
Side Note: Your water pressure tank should be set to 2 psi below the cut-in pressure (low number). For example 40/60 psi, the tank should be set to 38 psi.
A low cut off pressure switch turns the pump off in the event that the water pressure in your lines drops lower than the cut-in pressure (low number). Imagine that there was a leak or break in your water line. This would cause the pressure in your line to drop and your pump to kick on and stay on which could lead to flooding of your home or business. The low cut off pressure switch would turn the pump off if the pressure drops 10 psi below the cut-in pressure (low number). Think of it as a nice piece of protection.
It does the same thing as a regular non-heavy duty pressure switch except the build of it is a little more heavy-duty and recommended to use with pumps that are 2.0 hp to 5.0 hp. Pumps that are 1.5 hp and below you can just use the regular non-heavy duty pressure switch.
Turn off the electricity to your pump and turn off the circuit breaker
Remove the cover of the pressure switch
If water is leaking from the switch, you’ll need a new switch.
If water is leaking under the switch’s nipple connection, tighten the nipple clockwise a little.
Check out the contact points and if the discs are black, pry them apart and feel the discs. If you feel small holes then the contacts are bad. Replace your switch.
Next, turn the electricity back on. Be careful not to touch any part of the switch during this next test.
Look at the two sets of electrical contacts inside the pressure switch. If the contacts are open and there’s no water pressure, cycle the switch by pulling the contacts open. This might help loosen up the spring. If you see the switch close, kick the power back on. If the contacts stay open and there’s no pressure, then the switch is bad.
Turn on a water faucet and let your pump do a full cycle. If you see the switch open and close it might have just been stuck because of some built-up debris. If the switch doesn’t close when the pressure drops then the spring is bad and you’ll need to replace the entire switch. If you see electrical sparks, turn off the power right away and replace your switch.
