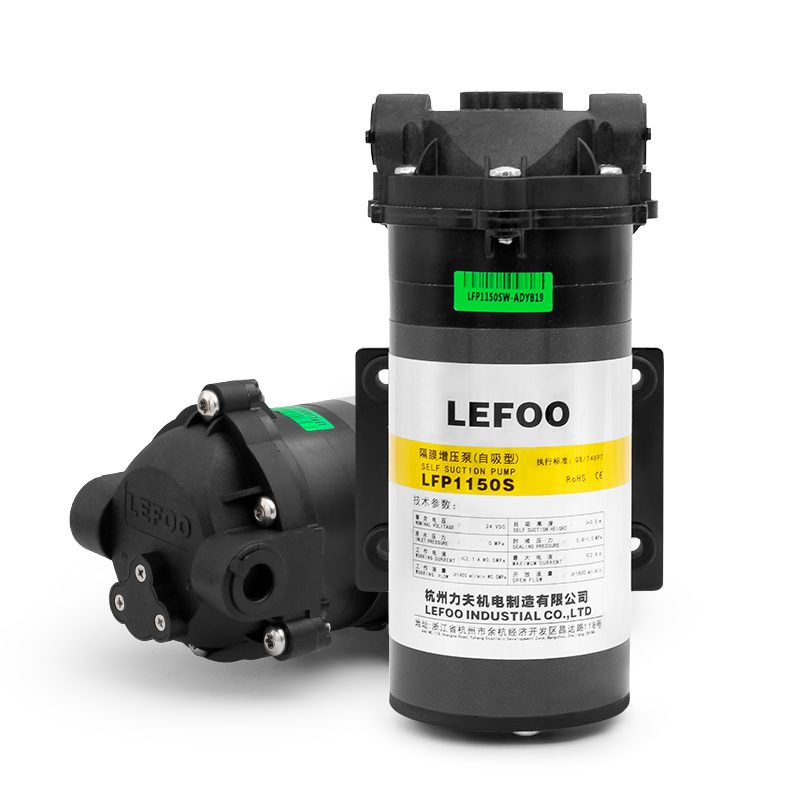

Self-priming RO Booster Pump 150 GPD

Name: Self-priming RO Booster Pump 150 GPD
Brand: LEFOO INDUSTRIAL CO.,LTD.
Price: 8-360 USD
Rating: 4.8 (50 reviews)

The pump should be installed in the feed water line just before the RO unit. The booster pump is a self-priming and low noise level. It runs off a 24-volt power adapter from a standard electrical outlet. The 150 gpd ro booster pump also includes a shock absorb design, quick connect water fittings.

Get a Quote PDF Download

Pump

Transmitter

Specification
Features
Applications

Specification for Self-priming RO Booster Pump 150 GPD

Model	LFP1150S
Voltage	24VDC
Inlet Pressure	0Mpa
Working Pressure	0.5Mpa
Working Current	≦2.1A
Working Flow	≧1450ml/min
Open Flow	≧1800ml/min
Bypass Pressure	0.8~1.0Mpa
Maximum Current	≦2.8A
Self Priming Height	≧3M
Connection	1/4" Male Quick Connector 3/8"NPT 3/8"NPT "0" 1/4"Side Female Quick Connector 1/4" Top Female Quick Connector

Features of Self-priming RO Booster Pump 150 gpd

*High water preventing level.

*Compliant with CE, Rohs, CQC certifications.

*Large flux water outlets with stable pressure and long working life.

*Compact structure consists of robust plastic and metal components.

*DC Powered strong impetus motor with low noise, low vibration level.

*Whole process quality controls in processes of electrical, sealing, and pressure boosting.

Applications of Self-primming RO Booster Pump 150 GPD

RO water purifier

soda water dispenser commercial

Office Water Dispenser

Coil Cleanning

Lab Water

Green House Misting System

Surface Humidification and Sanitation

Water Treatment/RO

Carbonation Systems

Beverage/Coffee Systems

Water Vending, Dispensing

Hydroponics/Aeroponics

Misting Systems

Surface Sanitation

Humidification

HVAC Coil Cleaning

Medical Lab Water

Autoclave Systems

Endoscope Reprocessing/Chemical Boost

Dialysis Chemical Injection

Methanol & Water Injection
