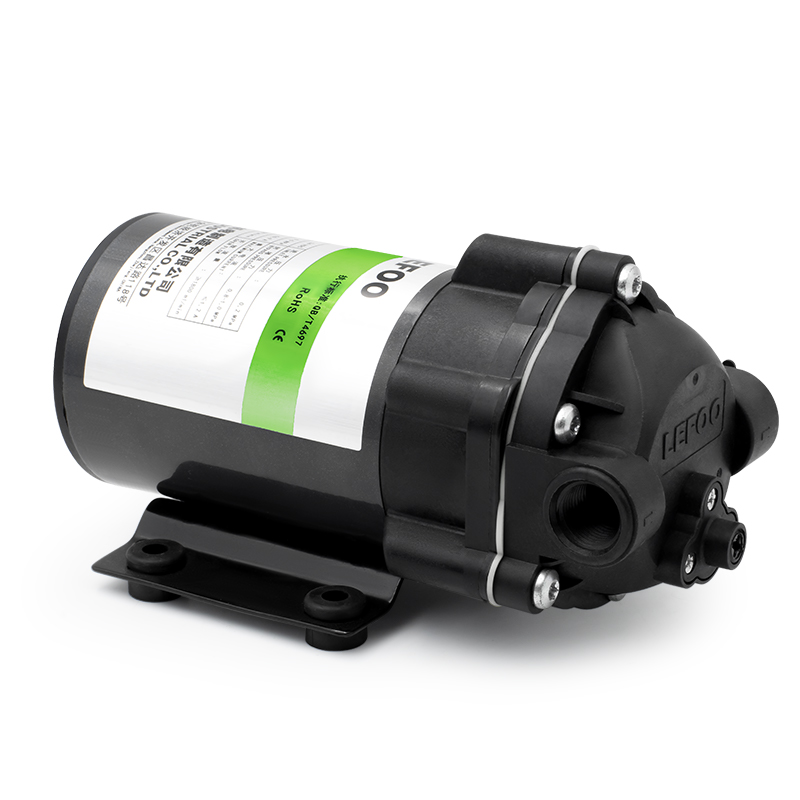

Lefoo is affianced in offering highly durable and stable RO diaphragm booster pumps in the qualitative range, It works at maximum speed with low electricity consumption. Works with all kinds of water purifiers. High Pressure, Long-lasting, maintenance Free, Equipped With High Power DC Motor With Low Noise, Low Vibration Low Power Dissipation, High-Efficiency Resistance To Acids, Alkalis And Adhesion & Easily Fixed And Removed
- Diaphragm Booster Pump ideal for 500 gpd water purifier
- 70PSI pressure feeding makes the water purifier unit produce more pure water for drinking and reduce rejected water
- Work Flow ≧3250ml/min(70 psi),≧2800ml/min(100 psi) customized performance for customers.
LEFOO ro motor pump is easy to connect to all RO Water Purifiers, RO Systems, RO Filter RO Membrane Housing, RO Low-Pressure Switch, RO Spare Parts, RO Spun Candle, UV Barrel, Water Filter Cartridge, and many more. All these pump products are jerk-free in functionality. All these models are available in many specifications. Our customers can avail of these products at market-leading rates from us.
Model | LFP1500WP | LFP1500W | LFP2500W | |||
Voltage | DC 24V | 36V DC | ||||
Inlet Pressure | 0.2Mpa | |||||
Optional Boost Pressure | 0.5Mpa | 0.7Mpa | 0.5Mpa | 0.7Mpa | 0.5Mpa | 0.7Mpa |
Working Current | ≦2.8A | ≦3.2A | ≦3.2A | ≦3.7A | ≦1.6A | ≦2.0A |
Working Flow | ≧3250ml/min | ≧2800ml/min | ≧3250ml/min | ≧2800ml/min | ≧3250ml/min | ≧2800ml/min |
Open Flow | ≧5000ml/min | |||||
Bypass Pressure | 0.85~1.0Mpa | |||||
Maximum Current | ≦3.8A | ≦4.2A | ≦2.5A | |||
Optional Connection | 3/8"NPT 3/8"NPT "0" 3/8"Side Female Quick Connector 3/8"Top Female Quick Connector | |||||
Certifications | NSF, CE, ROHS, REACH, EU Food Grade |
*High water preventing level.
*Compliant with CE, Rohs, CQC certifications.
*Large flux water outlets with stable pressure and long working life.
*Compact structure consists of robust plastic and metal components.
*DC Powered strong impetus motor with low noise, low vibration level.
*Whole process quality controls in processes of electrical, sealing, and pressure boosting.
RO water purifier
commercial pure water machine
Medical water process
Room sanitation and Cleanning
water vending machines
Cooling Mist system
Water Treatment/RO
Carbonation Systems
Beverage/Coffee Systems
Water Vending, Dispensing
Hydroponics/Aeroponics
Misting Systems
Surface Sanitation
Humidification
HVAC Coil Cleaning
Medical Lab Water
Autoclave Systems
Endoscope Reprocessing/Chemical Boost
Dialysis Chemical Injection
Methanol & Water Injection
