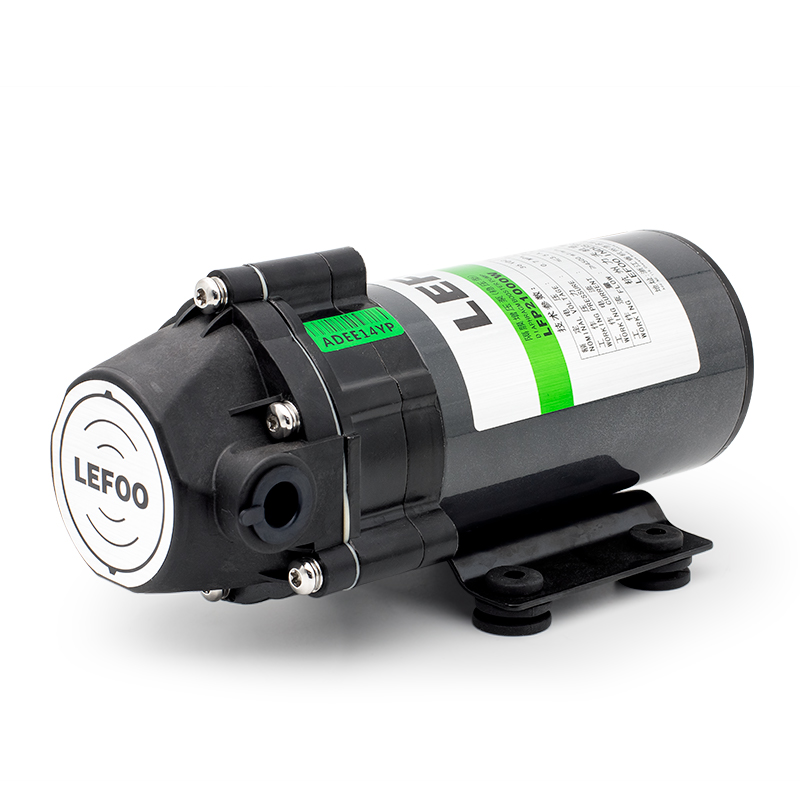

Lefoo RO Booster Pump 1000 GPD

The design of RO booster pumps 1000 GPD is aiming to offer a good pressure boosting device for medium-scaled reverse osmosis water filtration systems or pure water machines that can get thousands of people fresh taste pure water. The RO system comes with a booster pump for faster speed of water production and better contaminants filtration.

Get a Quote PDF Download

Pump

Transmitter

Specification
Features
Applications

Specification of RO Booster Pump 1000 GPD

Model	LFP21000J two outlets	LEP21000W four-chamber	LEP21000W	LEP21000J-A	LFP21000W-A
Voltage	36V DC
Inlet Pressure	0.2MPa
Working Pressure	0.7Mpa
Working Current	≦3.5A		≦4.0A
Working Flow	≧4500ml/min		≧5000ml/min
Open Flow	≧5500ml/min	≧6000ml/min	≧6500ml/min	≧6000ml/min
Bypass Pressure	1.05~1.2Mpa
Maximum Current	≦4.5A		≦5.0A
Connection	3/8"NPT 3/8"NPT "0" 3/8"Side Female Quick Connector 3/8"Top Female Quick Connector
Certifications	NSF, CE, ROHS, REACH, EU Food Grade

LEFOO Specification of 1000 GPD Reverse Osmosis Pump

Features of RO Booster Pump 1000 GPD

Quiet operation
Ideal for 1000 GPD pure water machine
Reliable, long lasting performance
Performance unaffected by inlet pressure
Durable diaphragm and compact design
Offers reliable, long lasting performance

Applications of RO Booster Pump 1000 GPD

LEFOO 1000 GPD RO Booster Pump can be used in the following condition:

RO water filtering system

Large Commercial Pure water machine

Medical water purification process

Surface wetting and humiliation

Misting system for home or outdoor cooling

Mountain area water transfer projects

Water Treatment/RO

Carbonation Systems

Beverage/Coffee Systems

Water Vending, Dispensing

Hydroponics/Aeroponics

Misting Systems

Surface Sanitation

Humidification

HVAC Coil Cleaning

Medical Lab Water

Autoclave Systems

Endoscope Reprocessing/Chemical Boost

Dialysis Chemical Injection

Methanol & Water Injection
