Specification of LEFOO LFP605DB High Precision DC Peristaltic Pump

TECHNICAL PARAMETER

Model	Installation Method	Motor Type	Control Method	Function	Working Voltage	Power	Weight	Working Environment	Rollers
P605DB.G	Built-in mounting hole	Brush DC motor	Power-on operation	Fixed flow rate	DC24V	$\le$36W	922g	Temperature 0-45°C, Relative Humidity <85%RH	Standard with 3 rollers

FLOW STANDARD(ML/MIN)

Voltage	Flow Range	Tube Size	Tube Type
DC24V	100~200	3.18*9.53	TPV

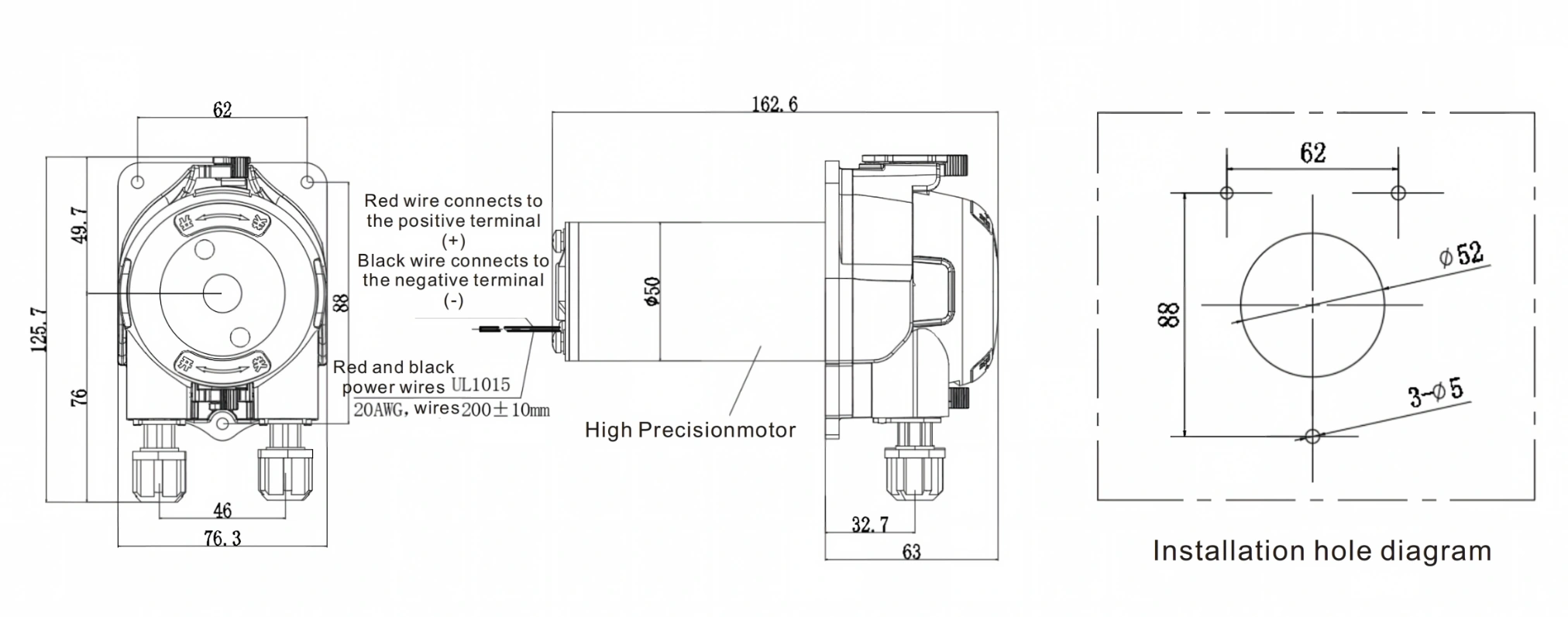

DIMENSION(MM)

LEFOO LFP605DB High Precision DC Peristaltic Pump dimension.webp
