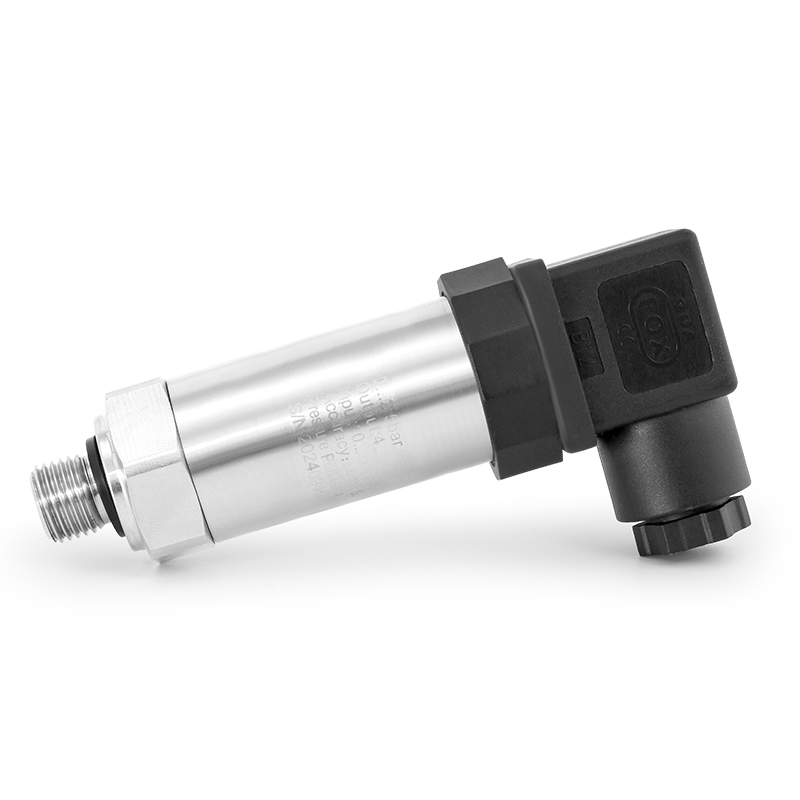

LEFOO LFT3100 temperature and pressure 2 in 1 transmitter adopts advanced piezoresistive pressure sensor and PT-100 temperature sensor, which is converted into standard output signal through special signal conditioning circuit, with advanced temperature digital compensation, wide operating temperature range, and full output signal It is suitable for the monitoring of pressure and temperature in crude food and water treatment systems.
Feature
* Adopt oil-filled diffusion silicon core with high precision and high overload capacity
* Temperature and pressure dual output, compact structure, saving installation space
* Support Modbus-485 communication protocol (intelligent type)
* The temperature sensitive element and the pressure sensitive element are packaged as one, which is closer to the medium temperature
Transmitter
LEFOO Temperature And Pressure 2 in 1 Transmitter LFT3100 | |||
Pressure Range | 0~10KPa…70MPa | ||
Temperature Range | -20~100℃ (PT-100) | ||
Overload Pressure | 1.5 times full scales | ||
Accuracy | Pressure: ±0.5%F.S. Temperature: ± 2%F.S. | ||
Stability | <0.5%F.S./Year | ||
Working Temperature | -20~+85℃ | ||
Storage Temperature | -40~+100℃ | ||
Medium Compatibility | All corrosive mediums can be compatible with 304/316 stainless steel, Fluoroelastomer or NBR. | ||
Electrical Performance | Two-wired | Three-wired | Four-wired |
Output Signal | 4~20mA | 0.5~4.5VDC | RS485 |
Power Supply | 10~30VDC | 4.75~5.25VDC | 10~30VDC |
Electrical Connection | DIN43650A(Big Hirschmann), M12 Waterproof outlet, GX12 aviation connector(three cores/four cores), M12 four-core aviation connector | ||
Protection Grade | IP54, IP65 | ||
Pressure Connection | G1/4, M12*1, M10*1, NPT1/4, G1/2, M20*1.5, etc. | ||
Pressure Form | Gauge pressure G / Absolute pressure A | ||
Certification items | Safety explosion-proof type E, RoHS, EU electrical safety standards CE |
Code and Description | Remark | ||||||||||||||||||
LFT3100 | Temperature and Pressure 2 in 1 Sensor | Model | |||||||||||||||||
Pressure range | 0~10KPa…70MPa | Measurement range | |||||||||||||||||
Temperature range | -20~100℃ | ||||||||||||||||||
A4 | A4 = 4~20mA(Two-wired) | Output | |||||||||||||||||
V05 | V05 = 0.5~4.5V(Three-wired) | ||||||||||||||||||
RS | RS=RS485 | ||||||||||||||||||
K | K = kpa | Unit | |||||||||||||||||
P | P = psi | ||||||||||||||||||
B | B = bar | ||||||||||||||||||
M | M = Mpa | ||||||||||||||||||
0.5 | 0.5 = 0.5%F.S. | Accuracy | |||||||||||||||||
D1 | D1 = DIN43650A Big Hirschmann | Electrical connection | |||||||||||||||||
M | M = M12 Waterproof outlet | ||||||||||||||||||
C3 | C3=GX12 three cores aviation connector | ||||||||||||||||||
C4 | C4=GX12 four cores aviation connector | ||||||||||||||||||
H | H = M12 four cores aviation connector | ||||||||||||||||||
G | G = G1/4 | Pressure connection | |||||||||||||||||
G2 | G2 = G1/2 | ||||||||||||||||||
N | N = NPT1/4 | ||||||||||||||||||
M20 | M20 = M20*1.5 | ||||||||||||||||||
M10 | M10= M10*1 | ||||||||||||||||||
M12 | M12= M12*1 | ||||||||||||||||||
1.0 | 1.0 = 1m | Cable length | |||||||||||||||||
2.0 | 2.0 = 2m | ||||||||||||||||||
3.0 | 3.0 = 3m | ||||||||||||||||||
LFT3100 | 0-60/-20-100℃ | A4 | M | 0.5 | M | G | 1.0 | Selection example |
Adopt oil-filled diffusion silicon core with high precision and high overload capacity
Temperature and pressure dual output, compact structure, saving installation space
Support Modbus-485 communication protocol (intelligent type)
The temperature sensitive element and the pressure sensitive element are packaged as one, which is closer to the medium temperature
Water treatment
Ozone generator
Municipal water supply project
Food industries
Light Duty Manufacturing industries
Chemical Industry
Constant pressure water supply equipment
