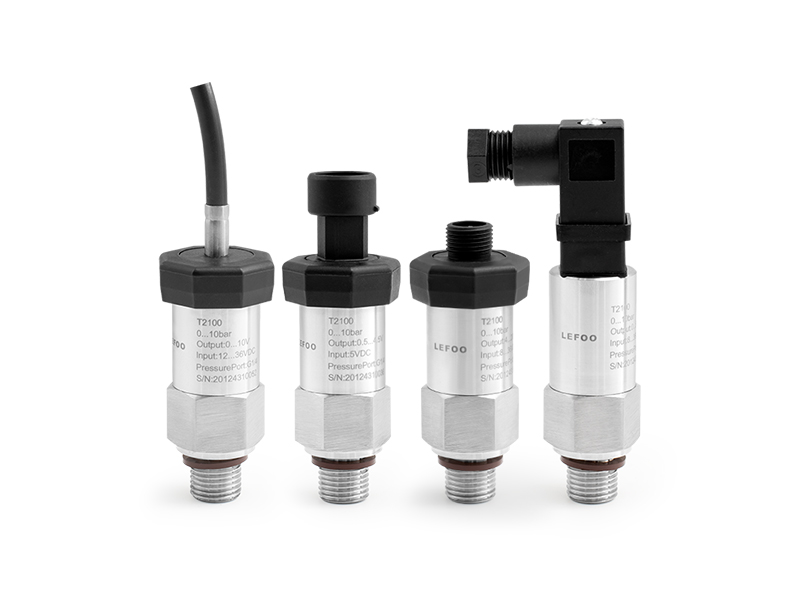

LEFOO LFT2100 water pressure transmitter is widely used in fire fighting, water treatment, water supply systems, air compressors, pneumatic devices, factory automation and other test systems for the measurement of fluid medium pressure. Unique waterproof and breathable structure to prevent internal and external air pressure inconsistency resulting in precision deviation. High overload capacity ceramic sensitive diaphragm with excellent corrosion and wear resistance. ASIC technology, MEMS technology, digital compensation technology, high precision, low temperature drift. The product also has the characteristics of small size, high protection level and strong anti-interference ability, and can be applied to various complex environments.
Features
* Unique waterproof and breathable structure.
* Excellent corrosion and anti-wear resistance.
* Adopt ceramic sensitive diaphragm with high overload capacity.
* With a variety of threaded connection and electrical connections.
* Small size, can be applied in various complex environment.
| LEFOO Water-proof Ceramic Pressure Transmitter LFT2100 | ||||
| Measurement Range | -0.1MPa~0...3MPa,0~0.1MPa...6MPa | |||
| Overload pressure | 1.5 times the rated pressure | |||
| Burst Pressure | 2 times the rated pressure | |||
| Accuracy➀ | 0.5%F.S(range>0.3MPa)、1.0%F.S | |||
| Stability | <0.5％F.S./Year | |||
| Working temperature | -20~85℃ | |||
| Storage Temperature | -40~100℃ | |||
| Medium Compatibility | Gas or liquid compatible with Alumina ceramics,304 stainless steel, fluororubbers or nitrile butadiene rubber | |||
| Electrical Properties | Two-wired | Three-wired | ||
| Output Signal | 4~20mA | 0.5~4.5V | 0~5V | 0~10V |
| Power Supply | 10-36VDC | 4.75-5.25VDC | 10-30VDC | 12-36VDC |
| Electrical Connection | Packard、DIN43650C(Small Hirschmann), Direct outlet, 4 core M12 Aviation connector | |||
| Enclosure Protection | IP65 | |||
| Pressure connection | G1/4、NPT1/4、R1/4、BPS1/4、G1/2、7/16-20UNF、M20*1.5、M10*1、M14*1.5 etc. | |||
| Pressure Form | Gauge pressure G | |||
| Certification | RoHS, CE | |||
Note➀: Measurement at 25 °C, includes a combined accuracy of linearity, repeatability and hysteresis.

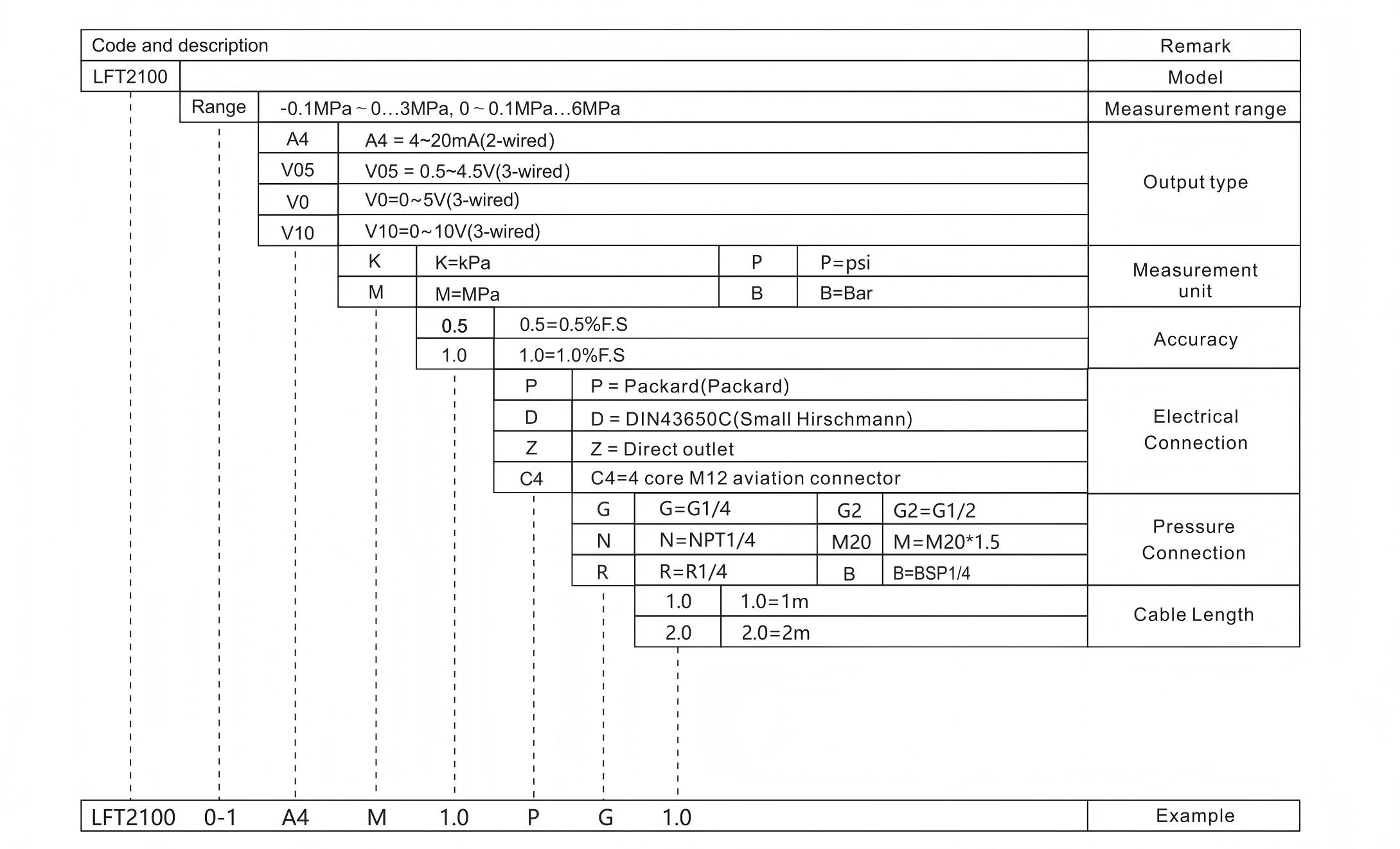

For example: LFT2100 0-1 A4 M 1.0 P G 1.0(LFT2100 pressure transmitter, range 0-1MPa, output 4-20mA, accuracy 1.0%, packard connection, pressure port G1/4, outlet length 1m)
Unique waterproof and breathable structure.
Excellent corrosion and anti-wear resistance.
Adopt ceramic sensitive diaphragm with high overload capacity.
With a variety of threaded connection and electrical connections.
Small size, can be applied in various complex environment.
LEFOO pressure transducer T2100 Match various data collection terminal equipment such as Frequency Converter, Signal Isolator, pressure control device, and PLC in applications as below.
Analytical tools
Automotive pressure monitoring
Air conditioning refrigerant monitoring
Beverage industry
Chemical chemistry
Confluence Exhaust
Car Charging Pile Coolant
Extruded board, thermal insulation board for underfloor heating
Gas alarm
Gas stove and vending machine
HVAC systems
Hydraulic equipment
Hydraulic base station
Hydraulic Robot Brake Control
Heat, power generation, auxiliary equipment
Luxury bath
Lithium battery manufacturing
Marine facilities
Mining industry
Medical Gas Alarm
Ozone equipment
Oil Testing Equipment
Power Project Test
PLC systems such as medical projects, HVAC, laboratory
Refrigeration equipment
Vacuum pump
Pharmaceutical industry
Pulp and paper
Pure water cooling device
