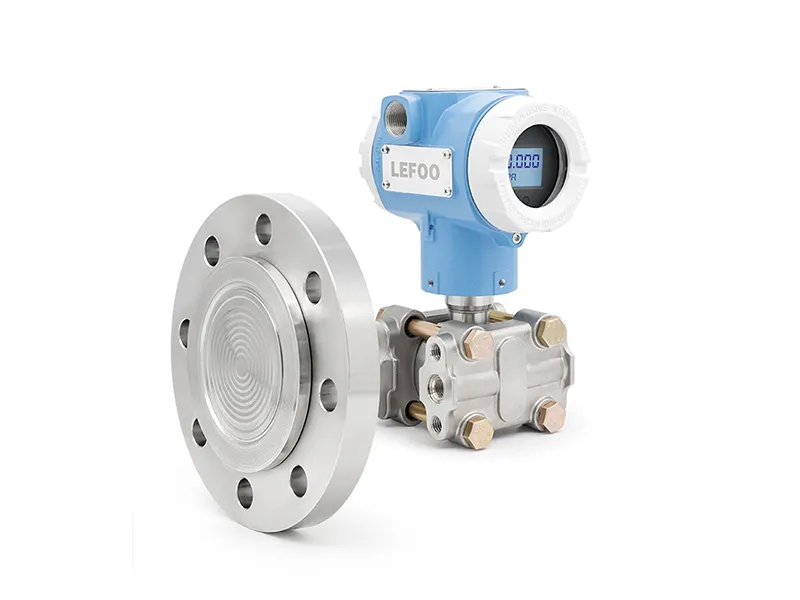

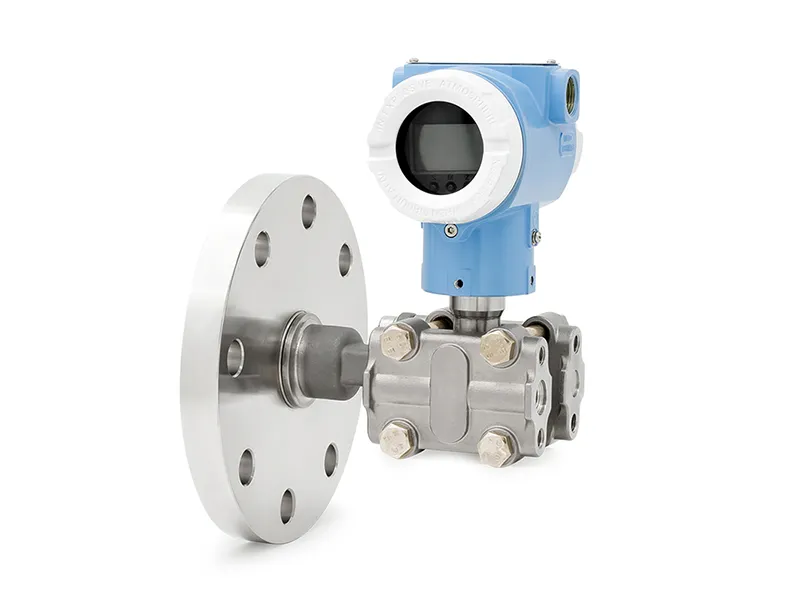

LFT720A Flange-mounted Differential Pressure Transmitter is composed of LFT710 Differential Pressure Transmitter and a welded liquid level flange. Between the flange and the sensor, silicon oil and other filing fluids are used to transmit pressure, to prevent the measured medium from passing through the impulse pipe then impact the measurement, The impact of the measured medium pass through the impulse pipe includes: crystallization, solidification, vaporization (boiling)condensation, fractionation (severe change) and etc. The transmitter is used to measure the liquid level, flow and pressure of liquid, gas or steam, and then convert it into 4~20mA signal output. The working principle of the LFT720A Flange-mounted Differential Pressure Transducer is the same as LFT710 Differential Pressure Transmitter except that the pressure transmission path on the positive pressure side is slightly different, that is the pressure acting on the high-pressure side first passes through the diaphragm of the liquid level flange and the filing liquid. and then pass through the transmitter body, and finally reach the high pressure side of the measuring sensor.
Feature
* High-precision pressure sensor using MEMS monocrystalline silicon;
* Fast response time, high stability, measurement accuracy 0.075%F.S;
* Provide standard HART bus communication mode, perfect self-diagnosisand remote communication function;
* High brightness LCD display with backlight, reversible local display screen;
* Local zeroing function, local zero point, full point setting and adjustment function;
* Convenient in-place current loop calibration function;
* Various process connection options available according to requirements.
| Measurement Range | 6KPa、40KPa、250KPa、1MPa、3MPa | |
| Accuracy | ±0.075%F.S | |
| Stability | ±0.2% of the upper range | |
| Operating Temperature | -20~70℃ with display | |
| Storage Temperature | -40~85℃ | |
| Media to be measured | Gas, Liquid | |
| Diaphragm Material | 316L, Hastelloy C, tantalum, others | |
| Electrical Performance | 2-wire | |
| Output Signal | 4~20mA | 4~20mA HART |
| Power Supply | 12~36VDC | 12~36VDC |
| Electrical connection | M20*1.5 waterproof outlet wire, NPT1/2 waterproof outlet wire | |
| Enclosure Protection Level | IP65 | |
| Pressure Interface | Flange PN series,flange class series, other | |
| Pressure Type | Gauge pressure G | |
| Certification Items | ExdIICT6, CE | |

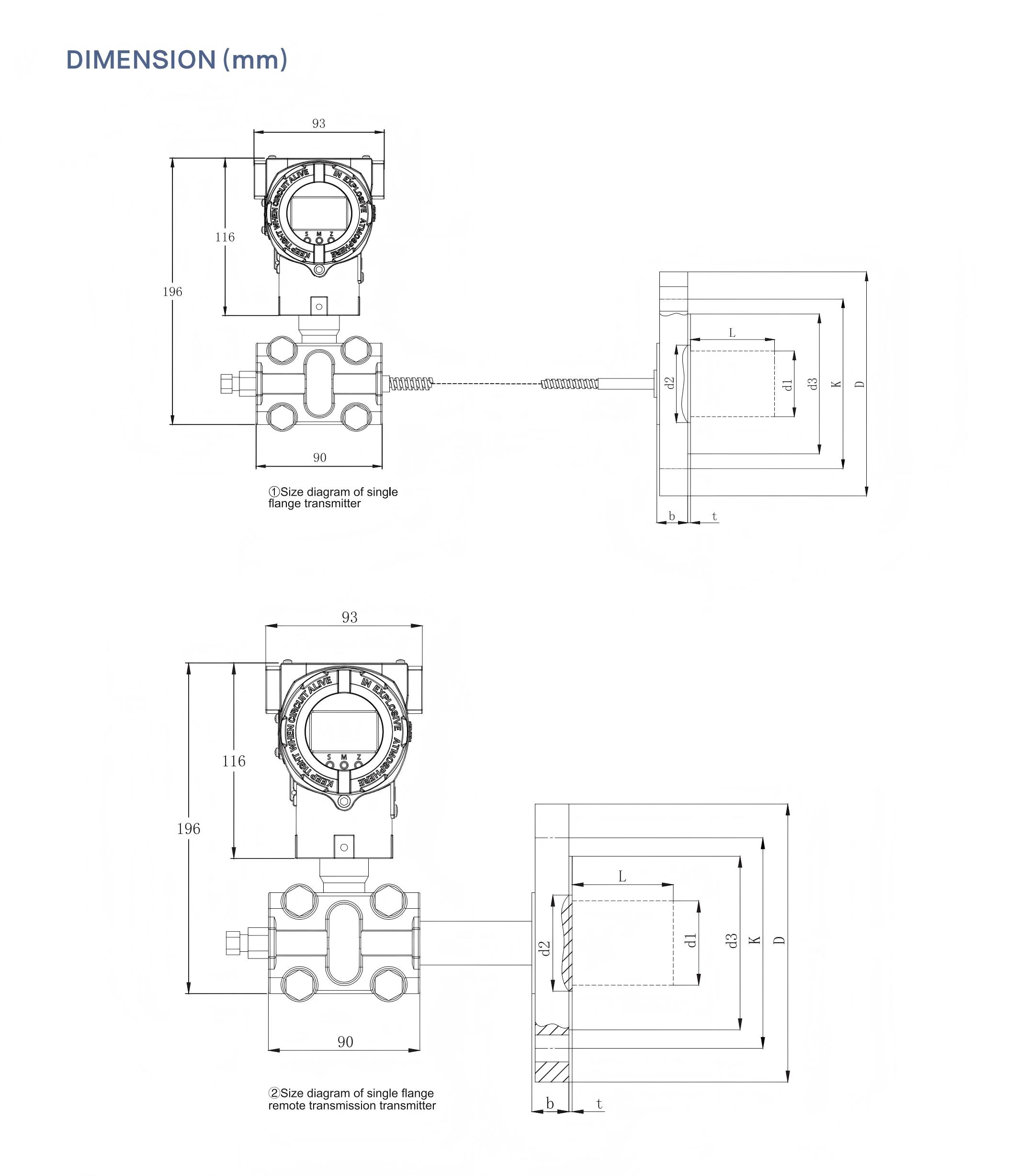

.jpg "LEFOO_LFT720A_Series_Flange-mounted_Differential_Pressure_Transmitter_02(1).jpg"){kind=spacer}

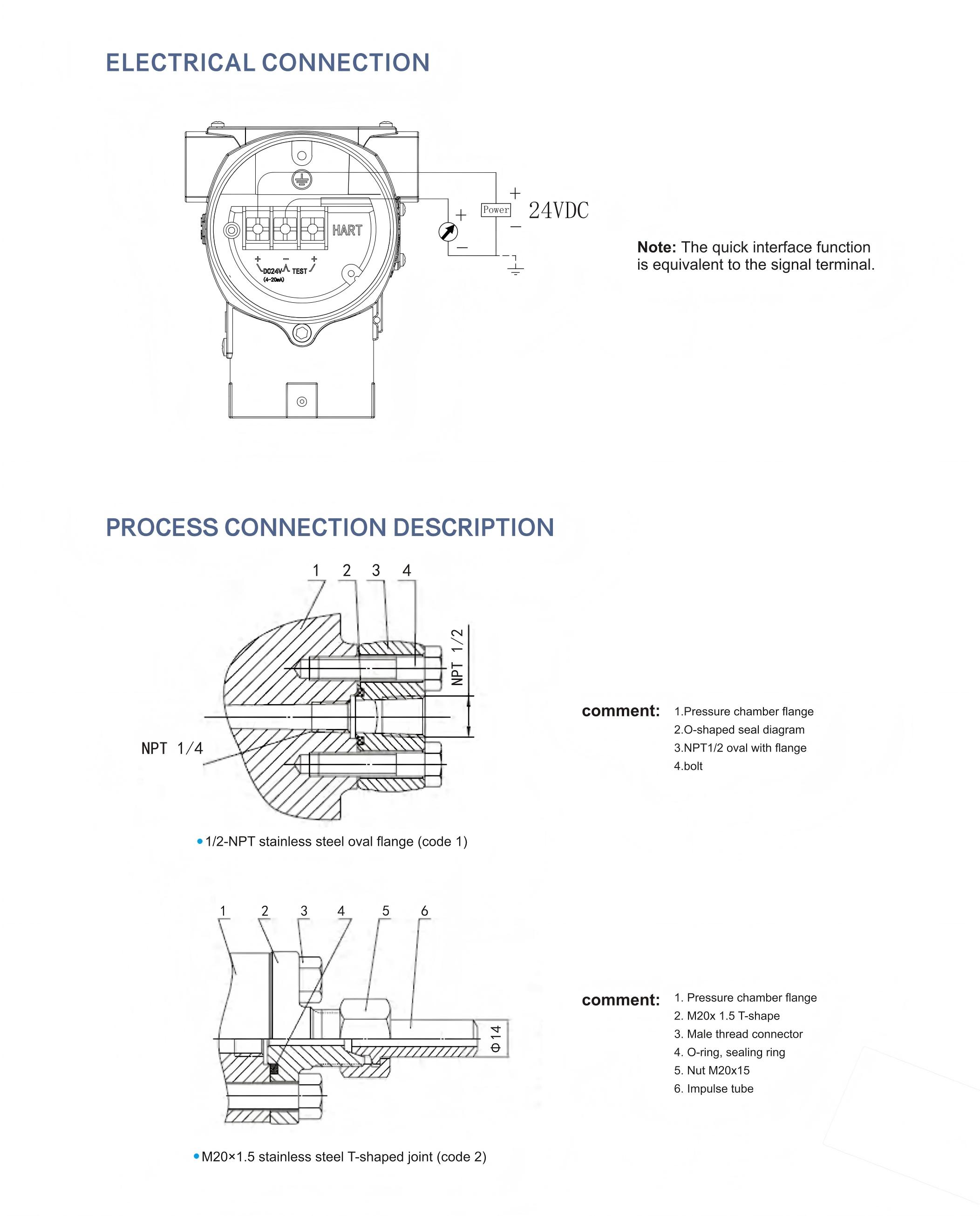

.jpg "LEFOO_LFT720A_Series_Flange-mounted_Differential_Pressure_Transmitter_03(1).jpg"){kind=spacer}

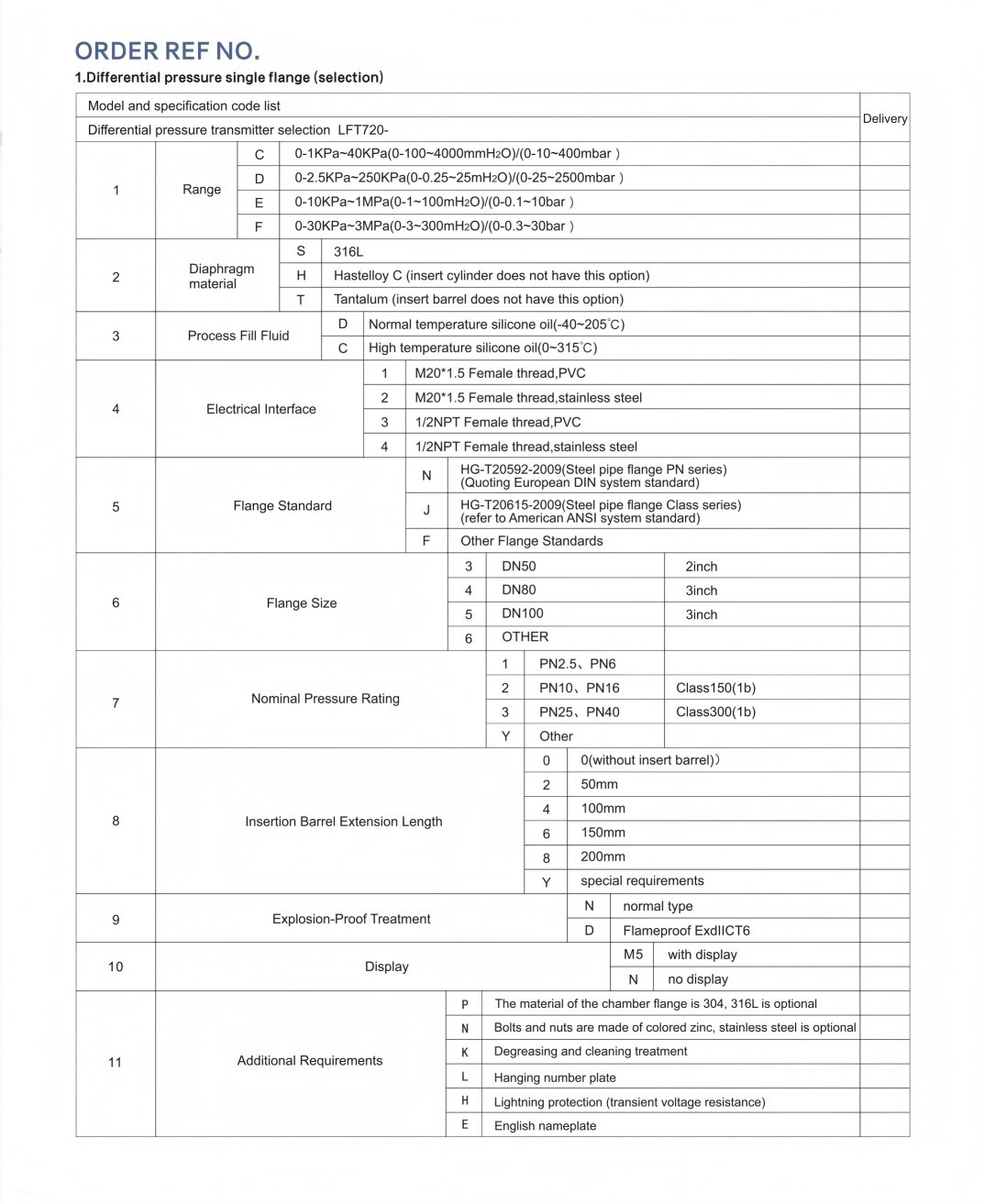

.jpg "LEFOO_LFT720A_Series_Flange-mounted_Differential_Pressure_Transmitter_04(1).jpg"){kind=spacer}

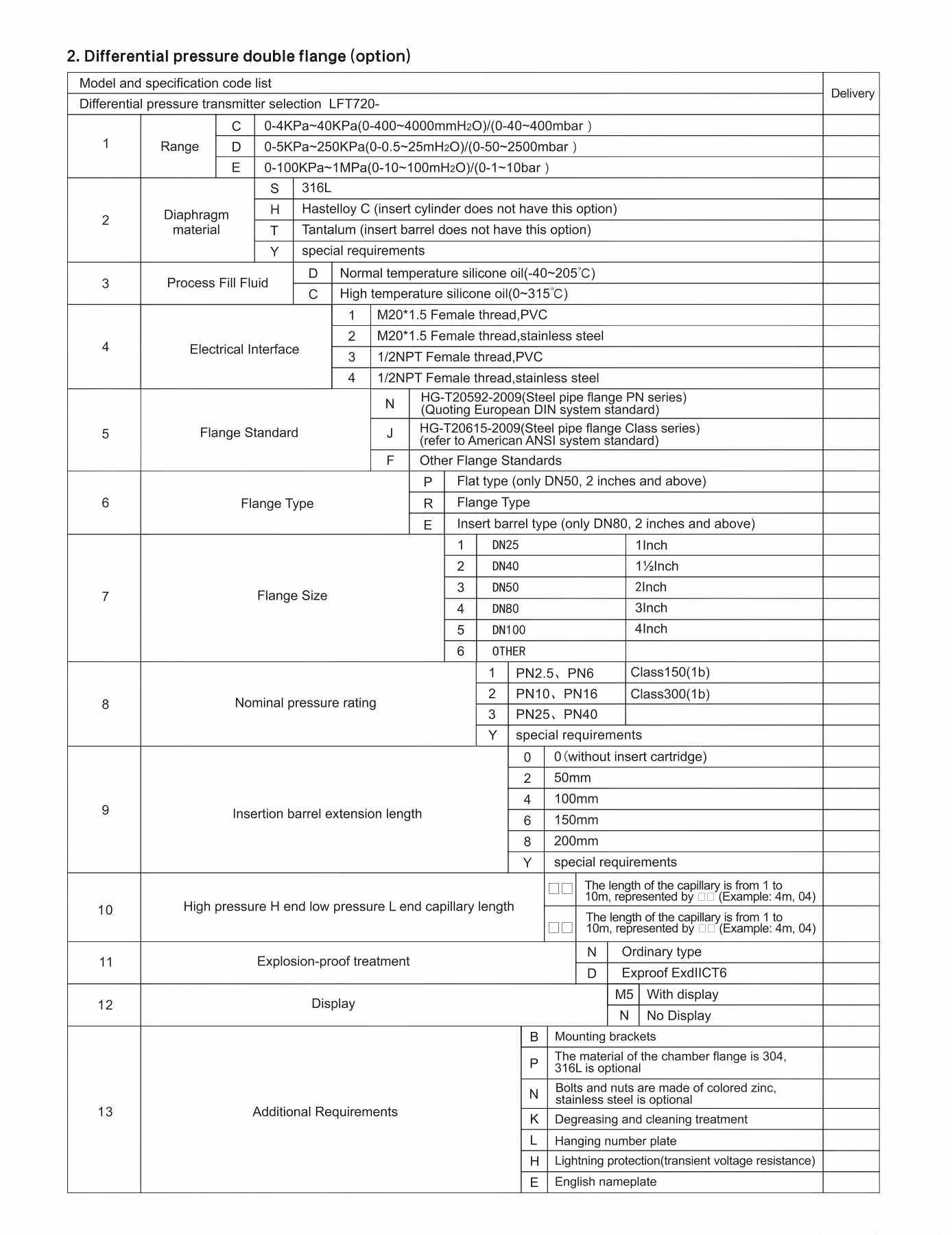

.jpg "LEFOO_LFT720A_Series_Flange-mounted_Differential_Pressure_Transmitter_05(1).jpg"){kind=spacer}
High-precision pressure sensor using MEMS monocrystalline silicon;
Fast response time, high stability, measurement accuracy 0.075%F.S;
Provide standard HART bus communication mode, perfect self-diagnosisand remote communication function;
High brightness LCD display with backlight, reversible local display screen;
Local zeroing function, local zero point, full point setting and adjustment function;
Convenient in-place current loop calibration function;
Various process connection options available according to requirements.
Designed for water and high risk gas
Flow measurement Level monitoring
Filter or pump differential pressure
Critical process monitoring
Closed Tank Level, Density, Filter health
