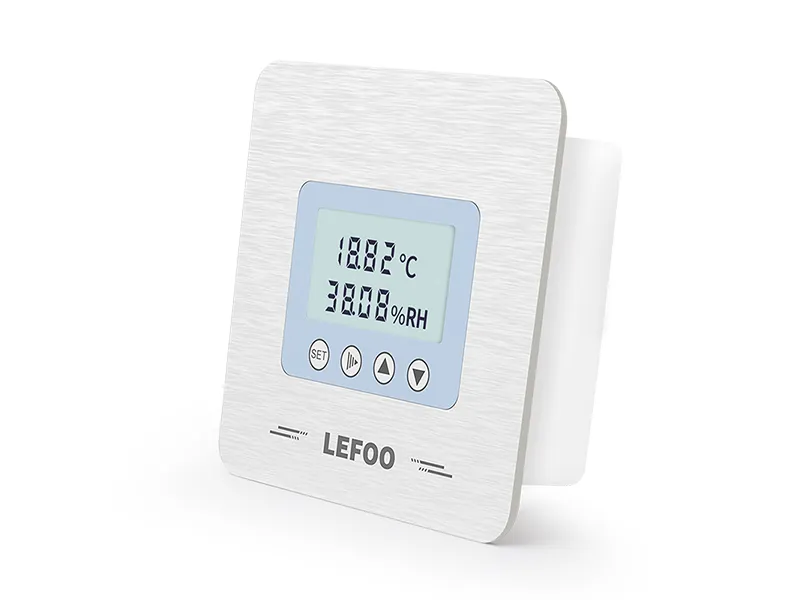

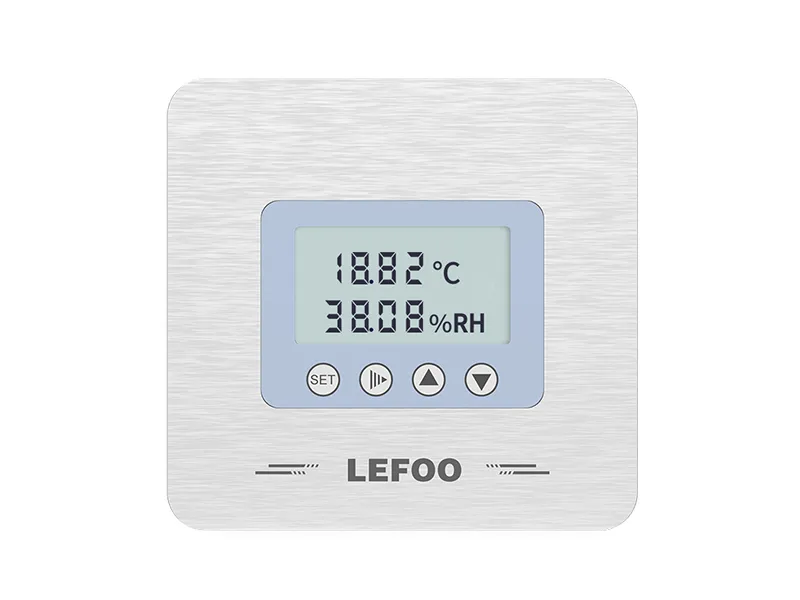

Lefoo Embedded Temperature and Humidity Transmitter LFH75

LFH75 Embedded Temperature and Humidity Transmitter specifically developed for clean environments. The product features a stainless steel metal panel, and its embedded installation allows it to be flush with the wall, significantly reducing dust accumulation and meeting the cleaning requirements of clean environments. Additionally, the imported capacitive humidity sensor ensures the product's accuracy and long-term stability. The replaceable probe design also facilitates daily use and maintenance, This product is an ideal choice for temperature and humidity measurement in cleanrooms, laboratories, isolation wards, animal rooms, and other similar environments.


Features

* Stainless steel dust-free panel, smooth embedded installation;

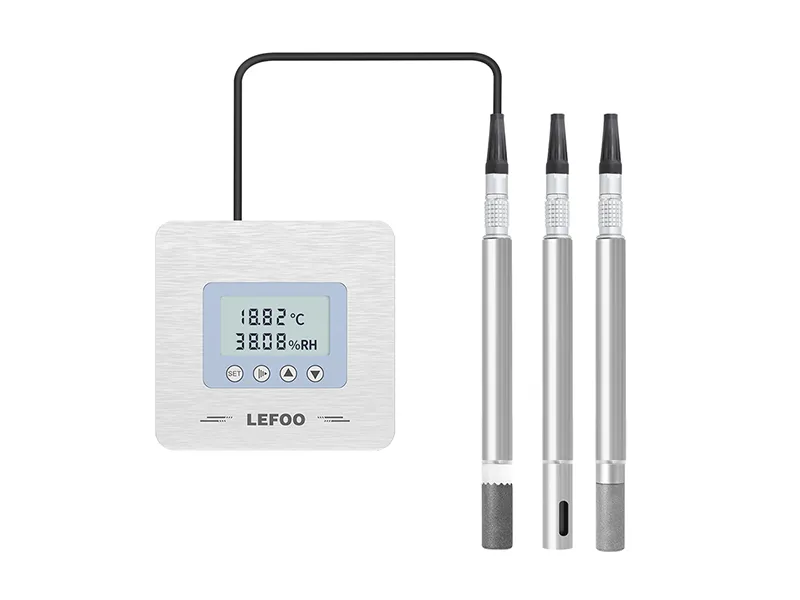

Probe rod with aviation plug connection, easy to replace;

Optional H₂O₂ cap, more suitable for disinfection environments;

High-precision imported sensor with excellent long-term stability;

Password-protected setup interface to prevent unauthorized operation;

CE, ROHS certification.


Specification of Embedded Temperature and Humidity Transmitter LFH75

Technical parameter

Specification of Embedded Temperature and Humidity Transmitter LFH75
Relative Humidity
SensorHumidity Sensitive Capacitor
Range0%~100%RH
OutputRS485/Modbus,0~10VDC,4~20mA,0~20mA
Accuracy±2%@ 20℃ & 20~80%RH
Response Time≤10s(20°C, slow flow air)
Temperature
TransducerPT1000(class A)
Range0-50°C,-20-60°C,etc.
OutputRS485/Modbus, 0~10VDC, 4~20mA, 0~20mA
Accuracy±0.2@ 10°C-30 see chart for other ranges

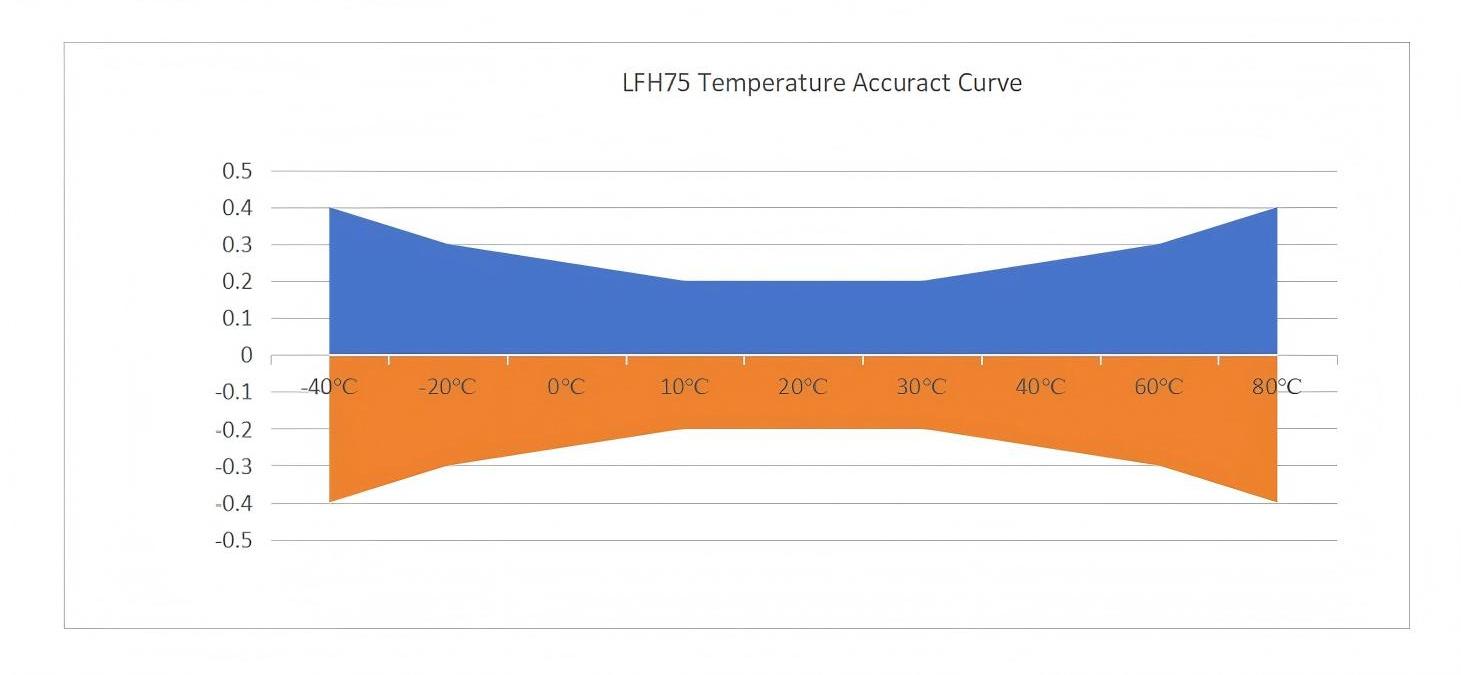

Temperature Accuracy Curve


  • Power supply: 16-35VDC or 24VAC ±20%.

  • Note: An isolation transformer is required when using AC power.

  • Output Load: ≥10KΩ (voltage type); ≤500Ω (current type).

  • Display Resolution: 0.01℃, 0.01% RH.

  • Housing Material: Base shell PC, panel stainless steel 304, probe stainless steel 304 probe.

  • Operating Environment: -20 to 60℃, 5%-95% RH(non-condensing).

  • Storage Environment: -20 to 60℃, 5%-95% RH.

  • Protection Level: Front panel: lP65 after installation; Probe: lP65  (stainless steel sintered and H₂O₂ filter); lP30 (metal U-groove filter)

Note:

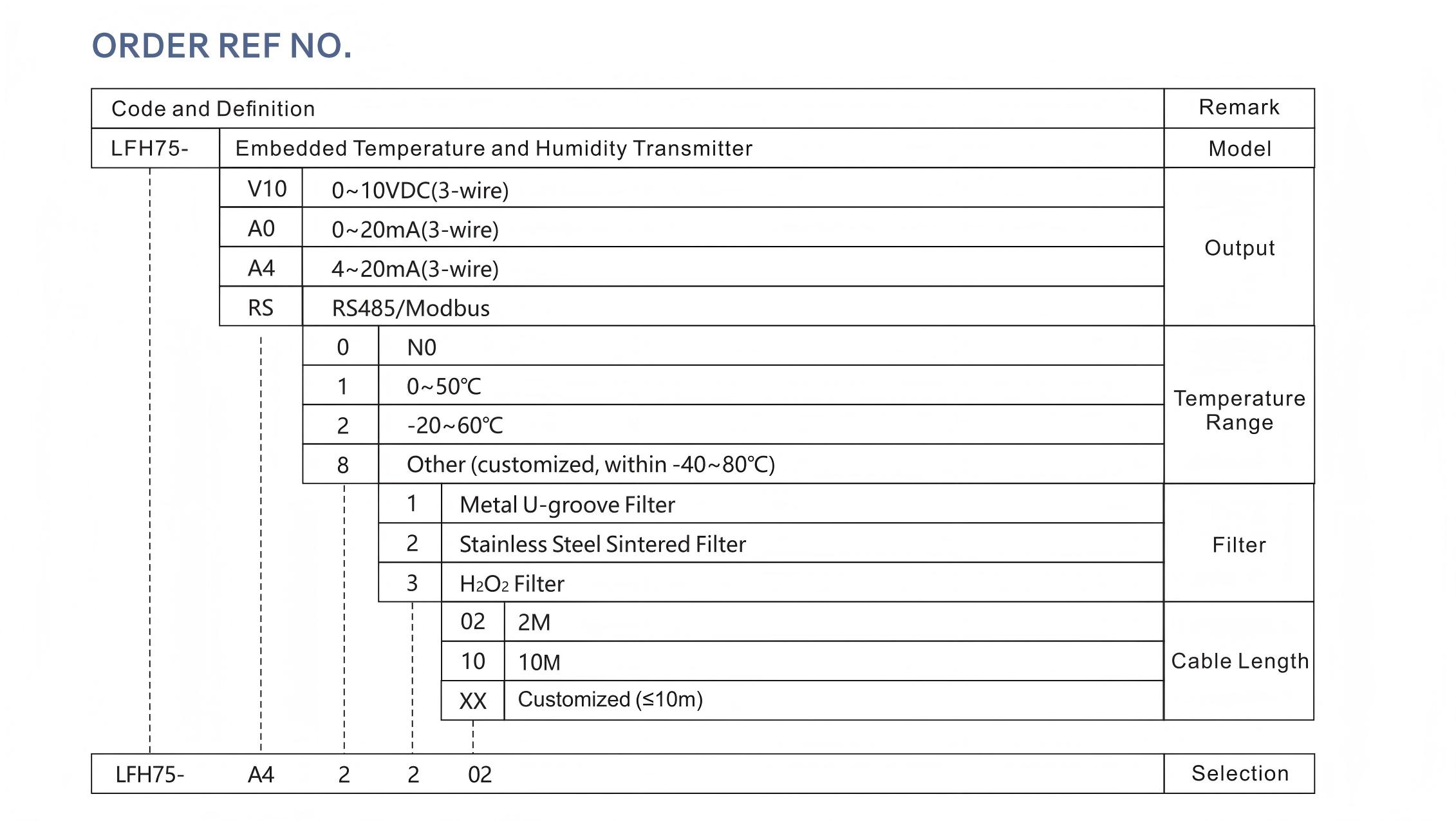

1. Only when the output option is V10, A0, or A4, the temperature range 1-8 must be selected,otherwise,only0 can be selected.

2. Example LFH75-A42202 represents an embedded temperature and humidity transmitter with current output 4-20mA, temperature range -20-60℃, stainless steel sintered filter, and 2-meter cable length.

3. Prolonged exposure of the sensor probe to high temperature and humidity environments may cause humidity drift, which can be restored by placing it in a normal environment.


Features of Embedded Temperature and Humidity Transmitter LFH75

  • Stainless steel dust-free panel, smooth embedded installation;

  • Probe rod with aviation plug connection, easy to replace;

  • Optional H₂O₂ cap, more suitable for disinfection environments;

  • High-precision imported sensor with excellent long-term stability;

  • Password-protected setup interface to prevent unauthorized operation;

  • CE, ROHS certification.


Applications of Embedded Temperature and Humidity Transmitter LFH75

The LFH75 Embedded Temperature and Humidity Transmitter is ideal for clean environments where accurate and stable measurement of temperature and humidity is essential. Its design, featuring a stainless steel metal panel and flush installation, helps reduce dust accumulation, making it perfect for use in industries such as:


  1. Pharmaceutical: In environments like cleanrooms and laboratories, where precise temperature and humidity control is crucial for product integrity and compliance with regulations.

  2. Medical: Hospitals, isolation wards, and animal rooms, where maintaining optimal environmental conditions is essential for patient care and research.

  3. Food Industry: Ensuring the right conditions in food storage and processing environments to maintain product quality and safety.

  4. Semiconductors and Electronics: In manufacturing processes that require controlled humidity and temperature to ensure high-quality output and prevent product defects.


The LFH75 is also well-suited for industries requiring regular maintenance, thanks to its replaceable probe design, ensuring longevity and reliability in challenging environments.
