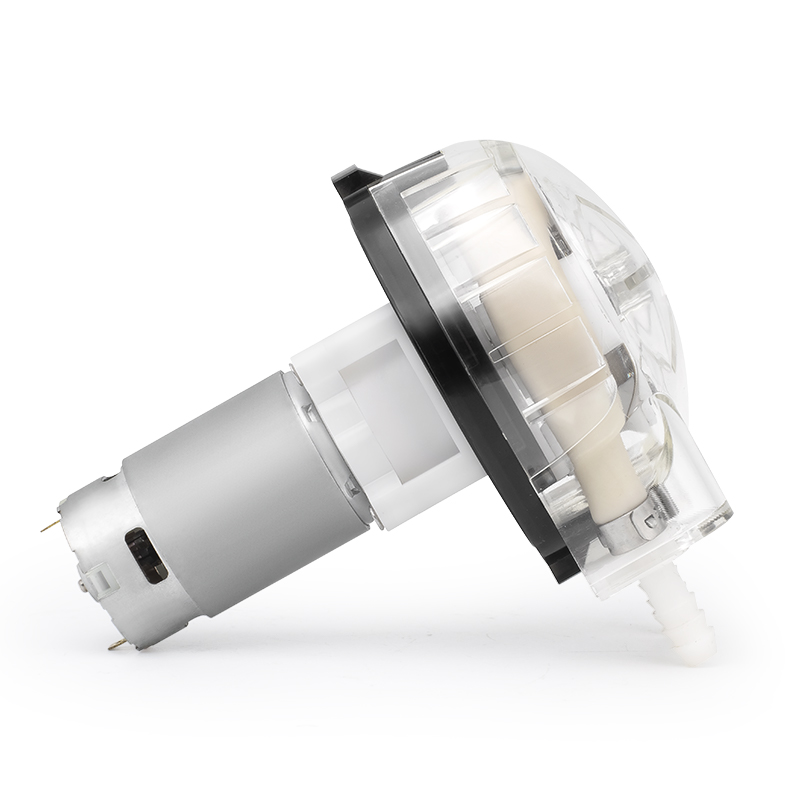

Lefoo DC Motor Peristaltic Pump LFP401/DB

Name: DC Motor Peristaltic Pump LFP401/DB
Brand: LEFOO INDUSTRIAL CO.,LTD.
Rating: 4.8 (50 reviews)

LEFOO DC Motor Peristaltic pump LFP401/DB is a device for chemical fluid dosing or visible fluid transfer. The robust plastic housing the tube, roller, brushless motor, and bearing. The roller will not directly contact the fluid and there is no risk of leak pollution unless the tube is done. Bulk buy peristaltic pumps cheap direct from Lefoo factory.

Features

*High precision, measurement accuracy is the top level in the industry

*Low noise, quiet and stable, suitable for home use

*Long life, operating life up to 800 hours

*Easy disassembly and quick hose replacement(no tools required)

Get a Quote

Pump

Transmitter

Specification
Features
Applications

Specification of DC Motor Peristaltic Pumps LFP401/DB

Technical parameter

LEFOO DC Motor Peristaltic Pump LFP401/DB
Installations method	Pump body with mounting hole (customization mounting plate)
Drive mode	DC brush gear motor
Control method	Power-on operation
Function	Constant speed quantitative supply
Working Voltage	DC12V, DC24V
Power	≤5w
Outlet pressure	≤0.17MPa
Working environment	Temperature:0-60℃ Relative humidity:＜85%RH
Roller Quantity	Standard 2 rollers

Flow standard(ml/min)

Voltage	Flow	Tube size	Tube material
12V/24V	700-2000	18#	BPT
	1000-3000	35#	BPT
	600-1900	18#	Silicone
	900-2800	35#	Silicone
	650-1950	18#	A-60-G
	950-2900	35#	A-60-G
	600-1900	18#	Fluorine
	900-2800	35#	Fluorine

Dimension(mm)

Features of Stepper Motor Peristaltic Pump LFP401/ST

Convenient start/stop, speed increase/decrease, rotate forward/reverse
Low noise, quiet and stable, suitable for home use
Support PLC control
Installation can be customize

Applications of DC Motor Peristaltic Pump LFP401/DB

A range of tube materials is available to handle a range of different chemicals as well as hygienic options for food and beverage dispensing.

Food Machinery

Drink dispenser

Detergent supply

Dish-Washing machine,

Washing machine Analytical Equipment

Analytical &testing instrument sample supply

Printing Equipment： Ink Supply

Kitchen Apparatus

Laundry Apparatus

Car Washing Equipment Analytical Apparatus

Drink machine

Drinks dispensing

Beverage Dispenser

Soda beverage fountains

Beer brewing equipment

Coffee machine

Ice cream dispensing

Blood diagnostic equipment

Vegetable cultivation

Indoor growing shelves

Indoor Farming

Vertical Farming

Commercial washing machine

Medical device

Water treatment

Gas analysis

Printing machine

Aquarium

Hydroponics

Agriculture plating

Lab sampling

Dishwasher

Robot Sweeper

Swimming Pool
