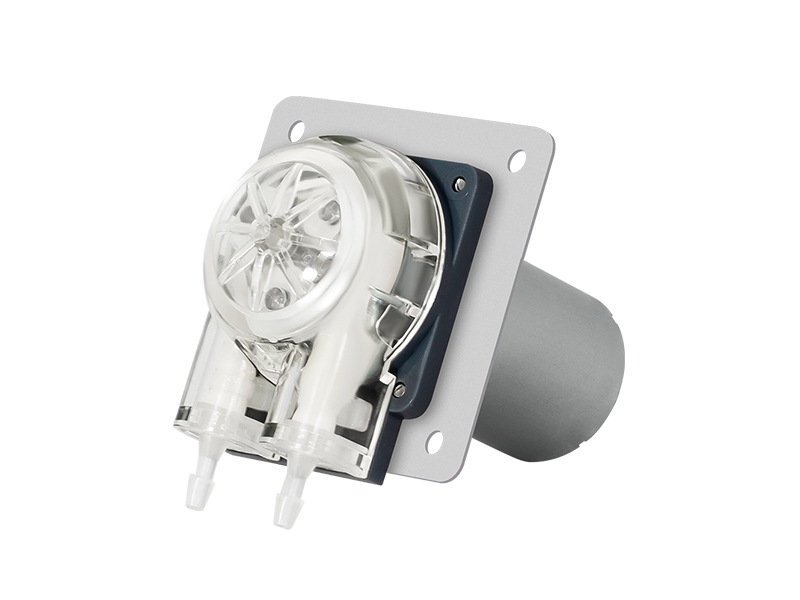

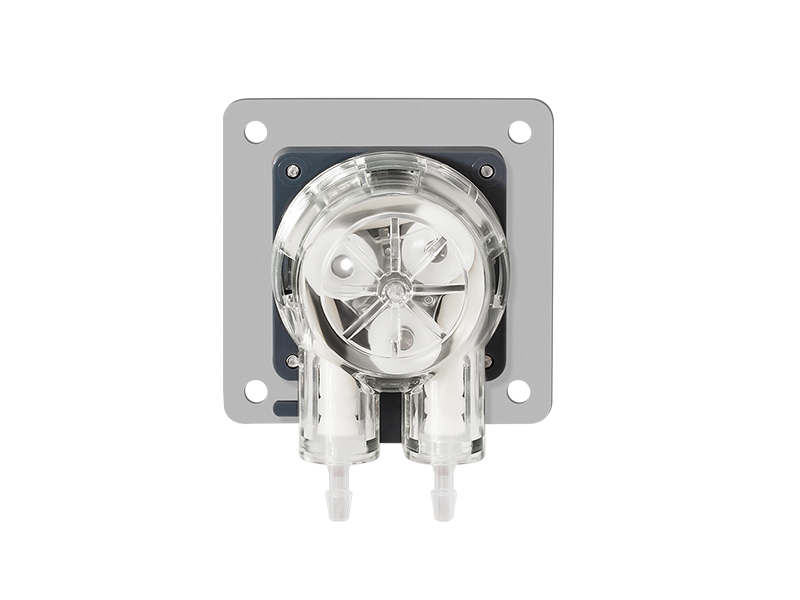

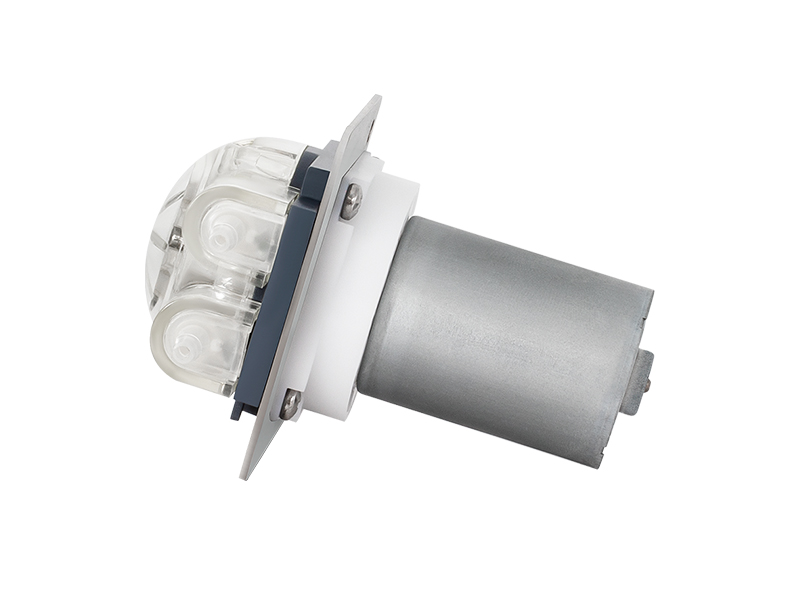

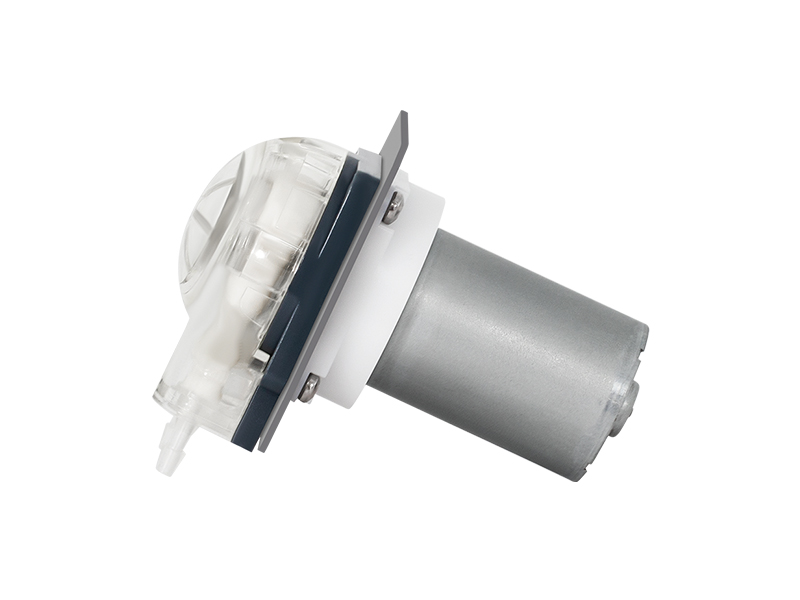

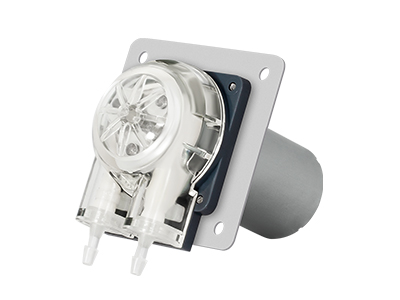

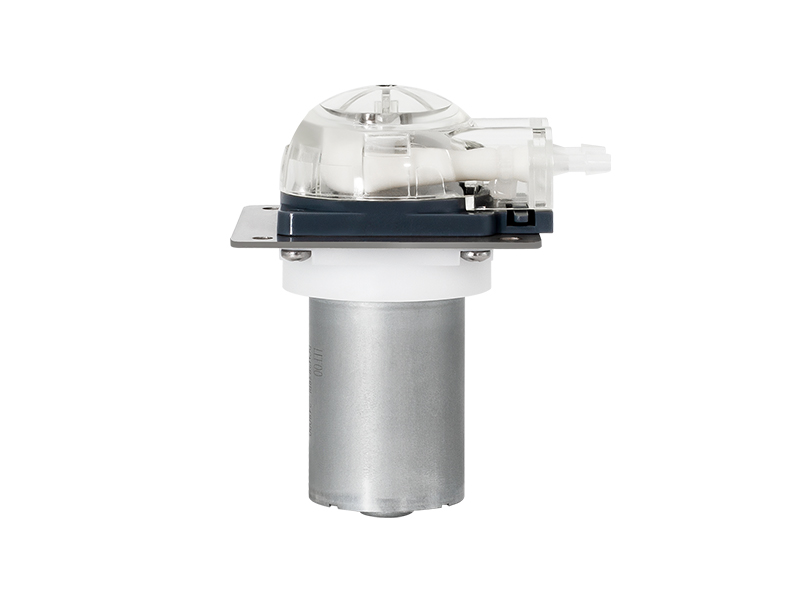

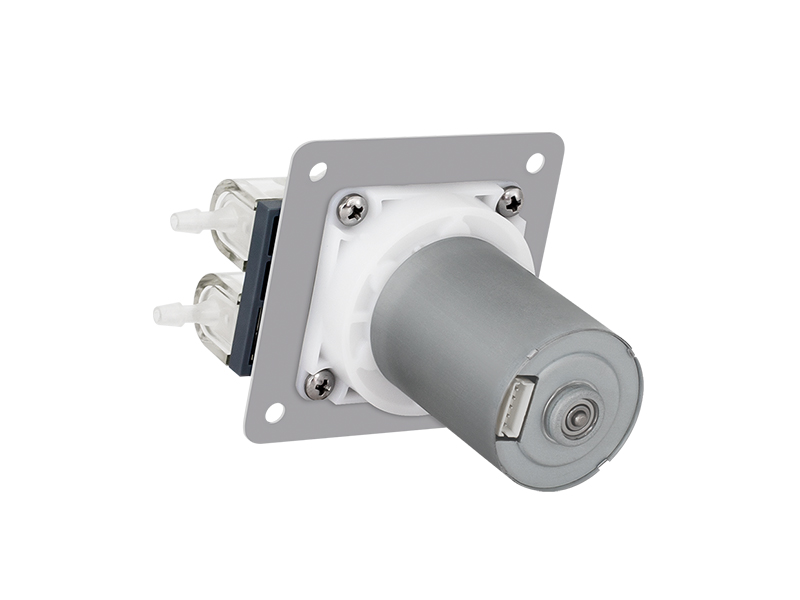

LEFOO LFP104BL Brushless DC Motor Peristaltic Pump focuses on high efficiency and durability, and optimizes the transmission structure to achieve low-energy and stable delivery. The rust-proof upgrade is suitable for humid or corrosive environments, and the low-speed operation reduces fluid shear force, which is suitable for the chemical and food industries. The flexible inner shell configuration (such as the B2-5V series) supports different flow accuracy requirements, taking into account practicality and economy.
FEATURES
* Brushless motor control, more stable flow
* Low speed, small size, large flow
* Hidden reduction box, compact structure
* Snap-fit fixed, high maintainability
TECHNICAL PARAMETER
| LEFOO Brushless DC Motor Peristaltic Pump LFP104/BL | |
| Installations method | Stainless steel mounting plate as standard (customizable) |
| Drive mode | Brushless DC motor |
| Control method | Driver control (Optional with PLC control) |
| Function | Precise adjustable flow control |
| Working Voltage | DC24V |
| Power | ≤8w |
| Weight | 110g |
| Working environment | Temperature:0-45℃ Relative humidity:＜85%RH |
| Roller Quantity | Standard 3 rollers |
FLOW STANDARD(ML/MIN)
| Voltage | Flow Range | Tube size | Tube Type |
| DC 24V | 2-23 | 1*3 | BPT Tube/Silicone Tube/ A60-F/Viton Tube |
| 4-97 | 2*4 | ||
| 8-185 | 3*5 | ||
| 12-270 | 4*6 |
rEMARK
The above flow parameters are tested under the conditions of room temperature 23°C, standard atmospheric pressure, clean water, suction lift 0.2m,lift 0, and no pressure. For reference only.
Pump flow rate can be affected by viscosity, density, medium temperature, ambient temperature, inlet and outlet pressure, suction lift and lift of pump. To ensure the accuracy of the pump, it is necessary to keep the above factors without significant changes.
Brushless motor control, more stable flow
Low speed, small size, large flow
Hidden reduction box, compact structure
Snap-fit fixed, high maintainability
The main application equipment of our DC brushless peristaltic pump can be classified into the following seven major areas: Household, Food & Beverag, Cleaning, Medical/Lab, Agriculture, Environmental/Water Systems and Printing.
1. Household Appliances
* Cooking Machine
* Sweeping Robot
* Dish-Washing Machine / Dishwasher
* Washing Machine
* Laundry Apparatus
* Kitchen Apparatus
2. Commercial Food & Beverage Equipment
* Food Machinery
* Drink Machine / Drinks Dispensing / Beverage Dispenser / Soda Beverage Fountains
* Coffee Machine
* Ice Cream Dispensing
* Drink Dispenser
* Beer Brewing Equipment
3. Cleaning & Washing Systems
* Automatic Car Washing Machine
* Welding Cleaning Machine
* Commercial Washing Machine
* Detergent Supply
* Dish-Washing Machine / Dishwasher (also listed in household)
4. Medical & Laboratory Equipment
* Blood Diagnostic Equipment
* Analytical Instruments
* Analytical & Testing Instrument Sample Supply
* Lab Sampling
* Medical Device
5. Agriculture & Horticulture
* Vegetable Cultivation
* Indoor Growing Shelves
* Indoor Farming
* Vertical Farming
* Hydroponics
* Agriculture Plating
6. Water & Environmental Systems
* Water Treatment
* Swimming Pool
* Aquarium
* Gas Analysis
7. Printing Systems
* Printing Equipment: Ink Supply
* Printing Machine
