LFT720B Double Flange-mounted Differential Pressure Transmitter is composed of the LFT710 Differential Pressure Transmitter and a small welded remote flange with a capillary tube. Between the flange and the sensor, silicon oil and other filing fluids are used to transmit pressure, to prevent the measured medium from passing through the impulse pipe. Which will impact the measurement. The impact of the measured medium pass through the impulse pipe includes crystallization, solidification vaporization (boiling), condensation fractionation (severe change) and etc. The Transmitter is used to measure the liquid level, flow and pressure of liquid, gas or steam, and then convert it into 4~20 mA signal output. The working principle of LFT720B Double Flange-mounted Differential Pressure Transducer is the same as LFT710 Differential Pressure Transmitter except that the pressure transmission path on the positive pressure side is slightly different, that is the pressure acting on the high- pressure side firstly passes through the diaphragm and the filing liquid of the remote flange, and then pass to the transmitter body via capillary tube, and finally reach the high pressure side of measurement sensor.
Feature
* High-precision pressure sensor using MEMS monocrystalline silicon;
* Fast response time, high stability, measurement accuracy 0.075%FS;
* Provide standard HART bus communication mode, perfect self-diagnosisand remote communication function;
* Convenient in-place current loop calibration function;
* Local zeroing function, local zero point, full point settingand adjustment function;
* Various process connection options available according to requirements;
* High brightness LCD display with backlight, reversible local display screen.
| Measurement Range | 40KPa、250KPa、1MPa、3MPa | |
| Accuracy | ±0.075%F.S | |
| Stability | ±0.2% of the upper range | |
| Operating Temperature | -20~70℃ with display | |
| Storage Temperature | -40~85℃ | |
| Media to be measured | Gas, Liquid | |
| Diaphragm Material | 316L, Hastelloy C, tantalum, others | |
| Electrical Performance | 2-wire | |
| Output Signal | 4~20mA | 4~20mA HART |
| Power Supply | 12~36VDC | 12~36VDC |
| Electrical connection | M20*1.5 waterproof outlet wire, NPT1/2 waterproof outlet wire | |
| Enclosure Protection Level | IP65 | |
| Pressure Interface | Flange PN series,flange class series, other | |
| Pressure Type | Gauge pressure G | |
| Certification Items | ExdIICT6, CE | |

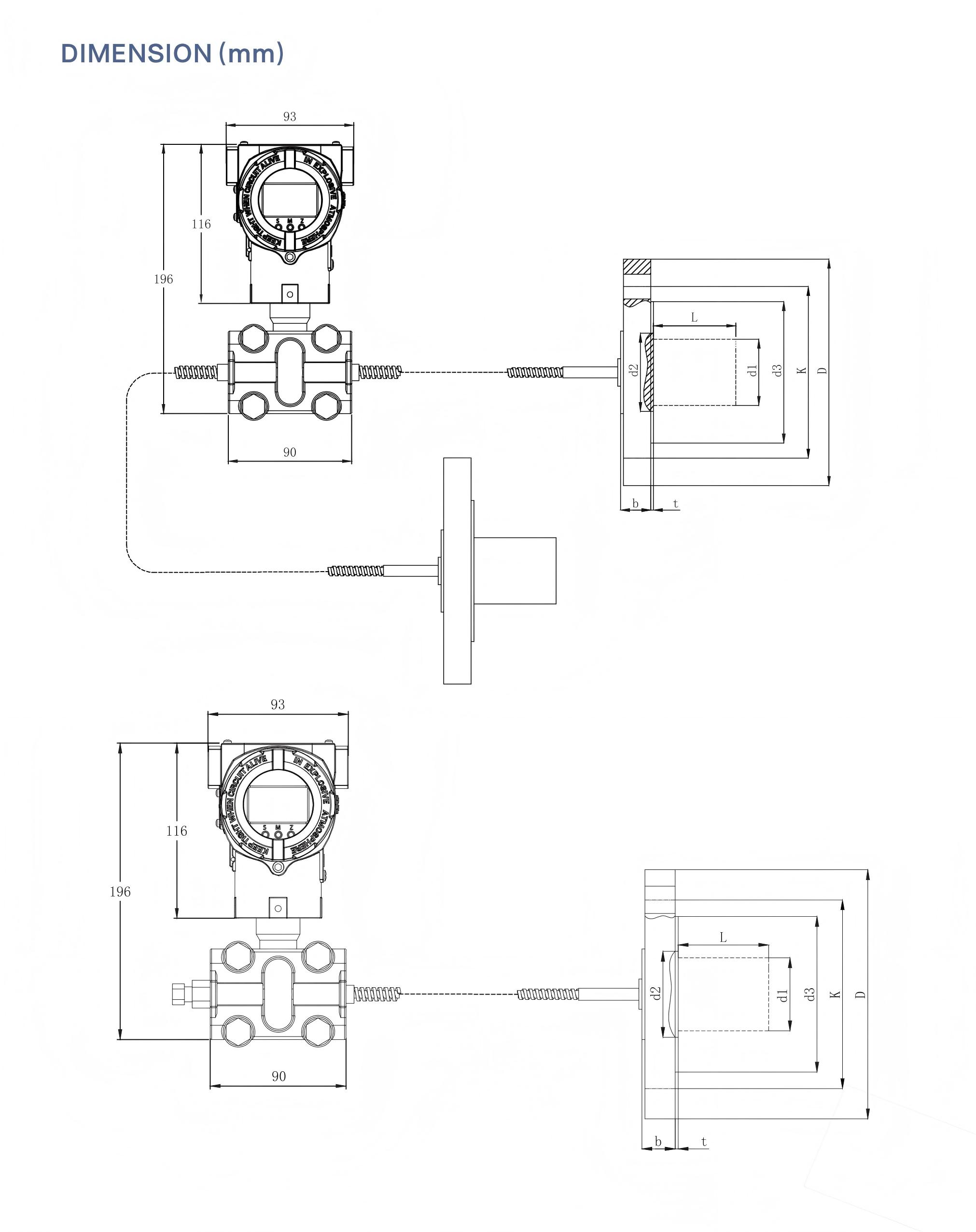

.jpg "LEFOO_LFT720B_Series_Remote_Flange_Differential_Pressure_Transmitter_02(1).jpg"){kind=spacer}

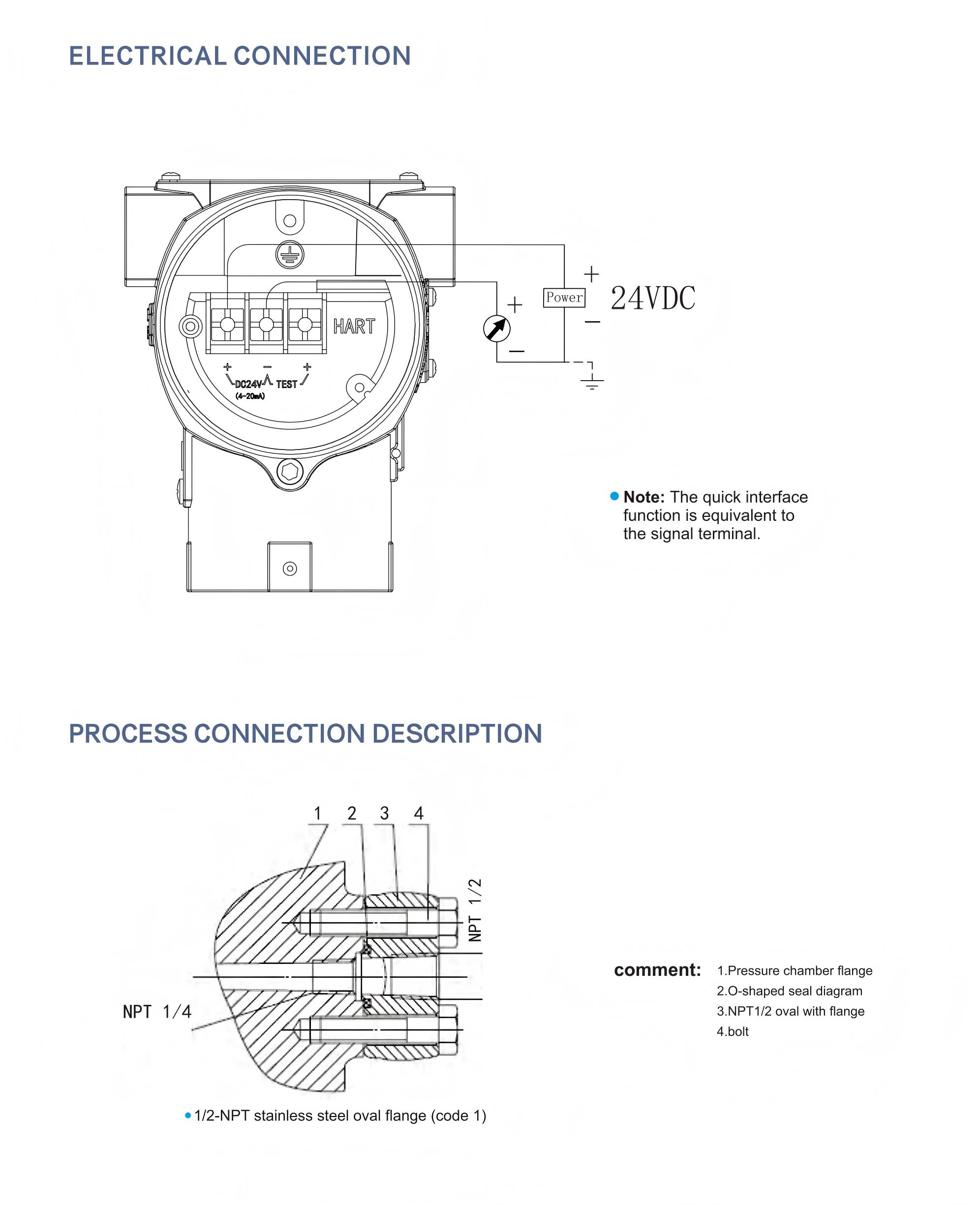

.jpg "LEFOO_LFT720B_Series_Remote_Flange_Differential_Pressure_Transmitter_03(1).jpg"){kind=spacer}

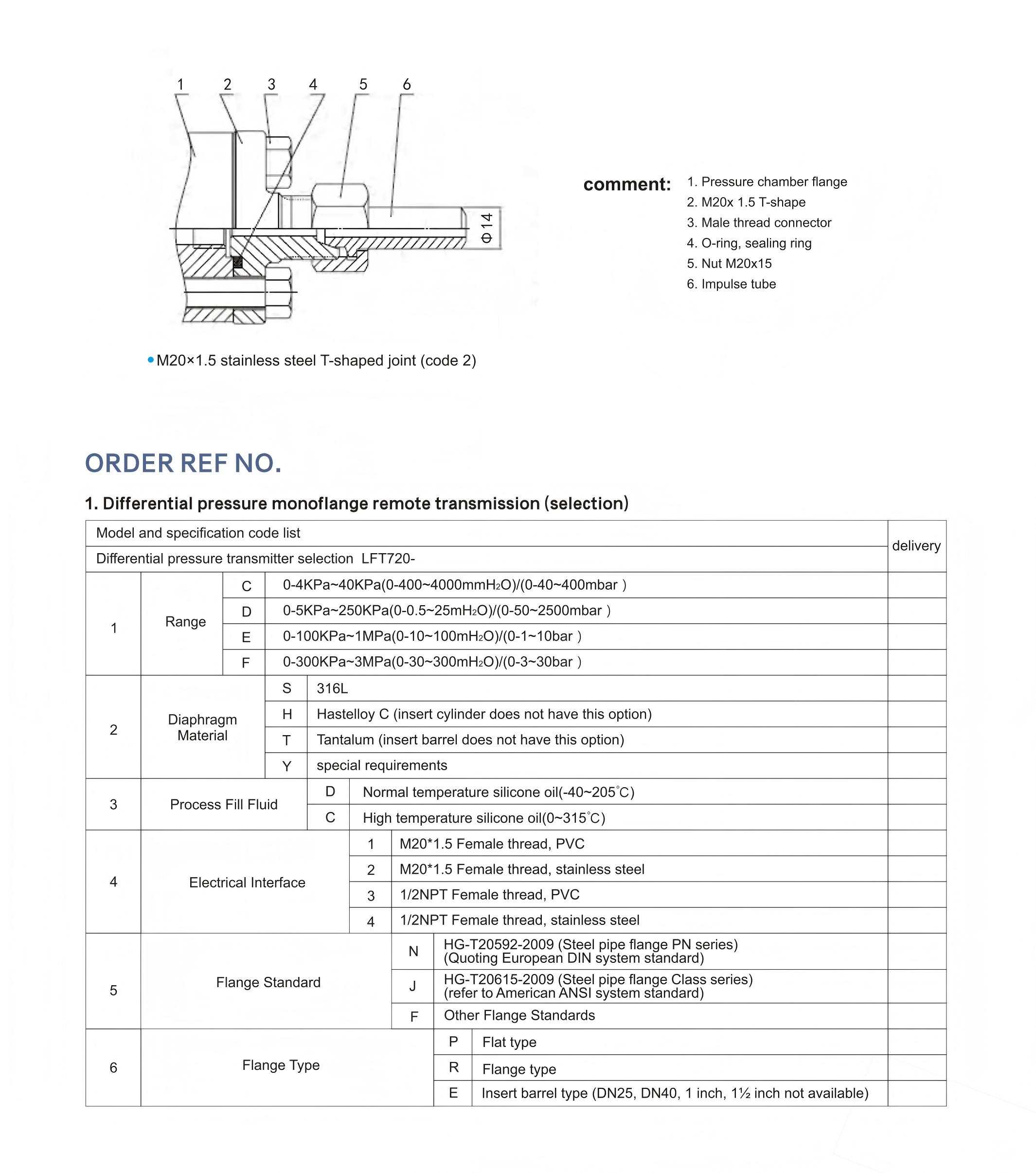

.jpg "LEFOO_LFT720B_Series_Remote_Flange_Differential_Pressure_Transmitter_04(1).jpg"){kind=spacer}

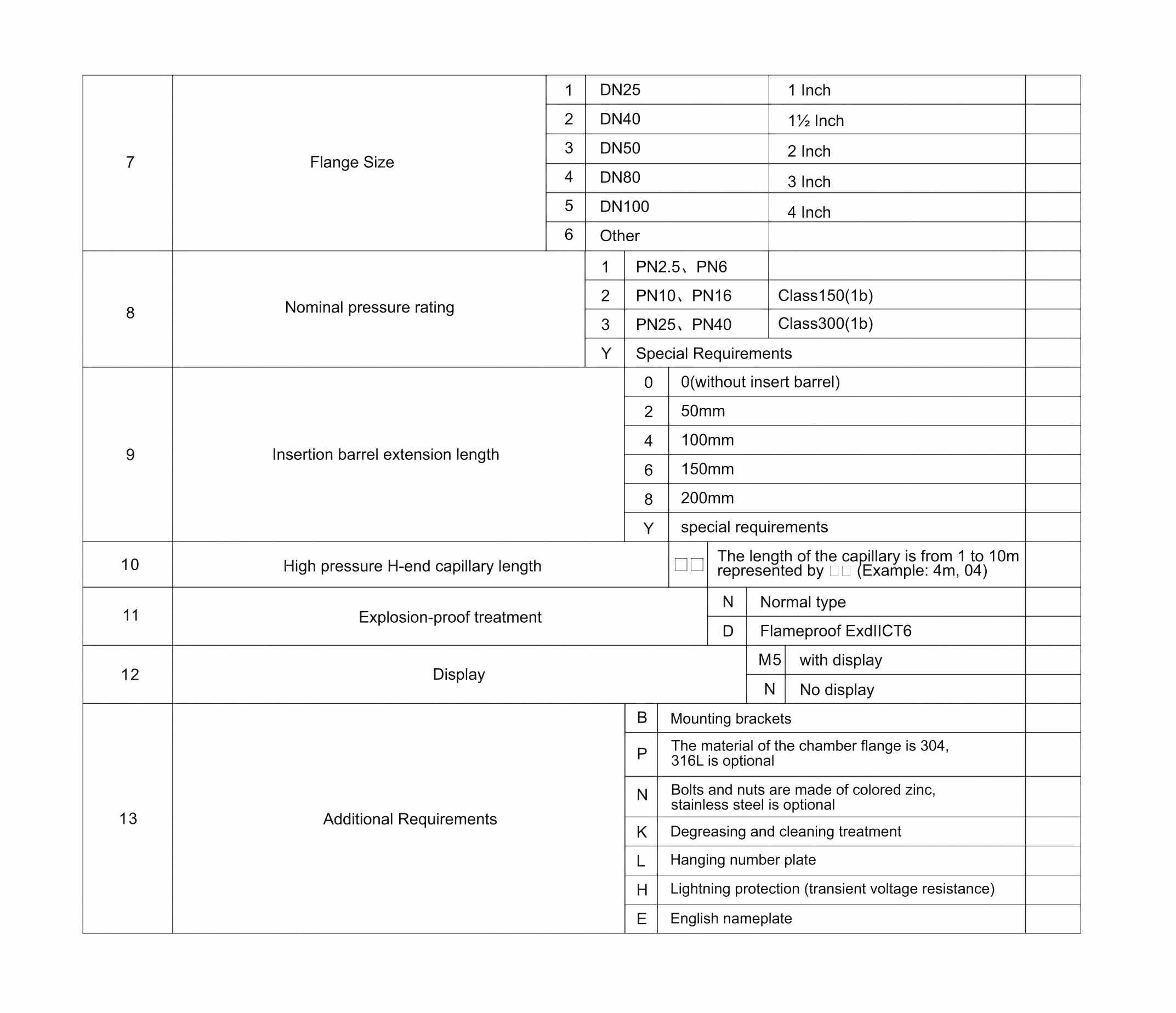

.jpg "LEFOO_LFT720B_Series_Remote_Flange_Differential_Pressure_Transmitter_05(1).jpg"){kind=spacer}
High-precision pressure sensor using MEMS monocrystalline silicon;
Fast response time, high stability, measurement accuracy 0.075%FS;
Provide standard HART bus communication mode, perfect self-diagnosisand remote communication function;
Convenient in-place current loop calibration function;
Local zeroing function, local zero point, full point settingand adjustment function;
Various process connection options available according to requirements;
High brightness LCD display with backlight, reversible local display screen.
Designed for water and high risk gas
Flow measurement Level monitoring
Filter or pump differential pressure
Critical process monitoring
Closed Tank Level, Density, Filter health
