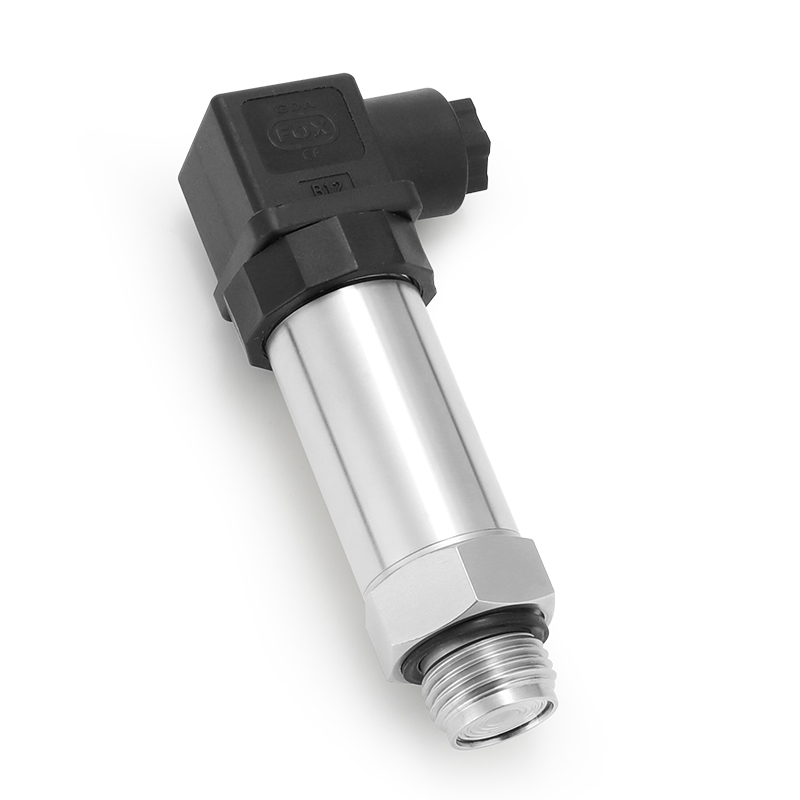

Lefoo General Type Flat Film Pressure Transmitter LFT2700

LEFOO LFT2700 flat film pressure transmitter adopts 316L flush membrane sensor, which is anti-clogging, easy to clean, can directly measure the pressure of viscous liquid, etc., and has excellent anti-corrosion and anti-wear performance. Flat pressure sensor adopt ASIC technology, digital compensation, threaded connection, easy installation and maintenance. The threaded interface is optional, the external structure is small, and a variety of electrical output connection methods are optional. Diffusion silicon flat-membrane thread sensors for gauge or absolute pressure applications can directly measure viscous media such as chemical coatings, paints, crude oil, etc. It is widely used in chemical industry, paint detection system, environmental protection, coal mine, papermaking, food processing, polyurethane equipment.

Lefoo General Type Flat Film Pressure Transmitter LFT2700 Feature

* Using 316L flush membrane sensor, anti-clogging, easy to clean

* Can directly measure the pressure of viscous liquids

* Adopt ASIC technology, digital compensation technology

* Excellent corrosion and wear resistance

* Threaded connection for easy installation

Specification of General Type Flat Film Pressure Transmitter LFT2700

Technical parameter

LEFOO General Type Flat Film Pressure Transmitter LFT2700
Measurement Range-100Kpa…0~20KPa…35MPa
Overload Pressure1.5 time of full scales
Working Temperature-20~+85℃
Storage Temperature-40~+100℃
Measured MediumAll corrosive mediums can be compatible with 304/316 stainless steel, Fluoroelastomer or NBR.
Electrical propertiesTwo-wiredThree-wiredFour-wired
Output Signal4~20mA0.5~4.5V0~5V0~10VRS485
Power Supply10~36VDC4.75~5.25VDC10~36VDC12~36VDC10~30VDC
Electrical ConnectionDIN43650A (Big Hirschmann), M12 waterproof outlet, GX12 aviation connector (three cores/four cores)
Protection GradeIP65 / IP54
Pressure ConnectionG1/2、M20*1.5 etc.
Pressure FormGauge pressure G/ Absolute pressure A
CertificationRoHS, EU electrical safety standard CE



Selection Guide

Code and Description



General Type Flat Film Pressure Transducer




Measurement range


A4 = 4~20mA(Two-wired)

Output mode


V05 = 0.5~4.5V(Three-wired)


V0 = 0~5V(Three-wired)


V10 = 0~10V(Three-wired)


RS485 = RS485(Four-wired)


K = kpa


PP = psi
BB = bar


M = Mpa


0.5= ±0.5%F.S.


1.01.0= ±1.0%F.S


D1 = DIN43650A Big Hirschmann

Electrical connection


M = M12 Waterproof outlet


C3 = GX12 three cores aviation connector


C1 = GX12 four cores aviation connector

HH = M12 four cores aviation connector


G= G1/2

Pressure connection

MM = M20*1.5


1.0 = 1m

Cable length


2.0 = 2m


3.0 = 3m









Example of Select

Features of General Type Flat Film Pressure Transmitter LFT2700

  • Using 316L flush membrane sensor, anti-clogging, easy to clean

  • Can directly measure the pressure of viscous liquids

  • Adopt ASIC technology, digital compensation technology

  • Excellent corrosion and wear resistance

  • Threaded connection for easy installation

Applications of General Type Flat Film Pressure Transmitter LFT2700

Working with LEFOO

Different from another kind of diaphragm pressure transmitter, Pressure Transmitter LFT2700 is perfectly applied with the following equipment.LEFOO is a premier provider of metal diaphragms pressure transducers around the world. We are pleased to provide top quality diaphragm pressure transducer for:

Static liquid and fluid pressure monitoring;

Glue dispenser;

Food industries;

Pharmaceutical Industries;

Pulp and paper industries;

Wastewater processing;

Petrochemical industries.

Commercial manufacturing and production

How Does a Pressure Transducer Work?

Pressure levels and fluctuations are registered through the deformation of a diaphragm and attached silicon sensing core. The displacement of the diaphragm and core is proportionally converted into electrical current. That electrical signal is analyzed to determine accurate pressure measurements.

Diaphragms for pressure transducers can be composed of either metal or non-metal materials. Non-metal diaphragms are durable but tend to be less elastic than metal diaphragms. This makes them less desirable for applications that require precise measurements with low flow volume.

What is a Metal Diaphragm?

Metal diaphragms are circular plates composed of thin, flexible metal that exhibit deformation when under pressure. Diaphragms are used for both sealing and pressure transference. Diaphragm seals prevent fluid from leaking into other parts of the system while simultaneously preventing contamination of the fluid itself. Within a pressure sensor, diaphragms isolate the system and transfer the effects of pressure changes to the gauges, where the changes are converted into electrical current for analysis.

Transducer Diaphragms

Metal diaphragms can be specially tailored to meet the needs of a wide range of industries and applications. There are two primary metal diaphragm designs: High-Sensitivity Low-Pressure (HSLP) and Low-Sensitivity High-Pressure (LSHP).

What are High-Sensitivity Low-Pressure Diaphragms?

HSLP diaphragms are used for applications that require the diaphragm to operate with a great deal of flexibility under low-pressure conditions. They are more frequently used than their LSHP counterparts and are particularly useful for low-pressure applications that require a high degree of precision, such as food production and pharmaceutical manufacturing.

What are Low-Sensitivity High-Pressure Diaphragms?

LSHP diaphragms must be more rigid and capable of retaining their shape and position in high-pressure applications. Their durability makes LHSP diaphragms valuable as protective barriers in high-pressure equipment. They can also be particularly useful for the conversion of pressure displacement into electronic signals. LHSP diaphragms are often designed to open at precise pressures, making them useful for applications that require highly accurate pressure measurements. Pressure-based medical equipment and systems that operate in extreme environments also benefit from the use of LHSP diaphragms.

Types of Tooling for Metal Diaphragms

We use two highly specialized tooling methods to manufacture quality metal diaphragms. The method used depends greatly on the intended thickness of the component and expected production volume.

Metal-to-Rubber Tooling

For prototyping, sampling, and lower production volumes of less than 50,000 annually, metal-to-rubber tooling is appropriate for diaphragms with a thickness greater than 0.0015 inches. This process is less expensive than other tooling methods and ideal for swift small-scale production of highly accurate components.

Metal-to-Metal Tooling

Metal-to-metal tooling is ideal for production volumes that exceed 50,000 components annually, and for diaphragms with a thickness less than 0.0015 inches. This type of tooling can be relied upon to produce highly accurate components within tight tolerances for burr height, part configuration, and durability.

Applications and Capabilities of Metal Diaphragms

Metal diaphragms are highly versatile and have a broad range of uses in mechanical and industrial equipment, medical devices, and pressure transducers. Common uses of metal diaphragms include:

Pressure regulators

Conversion of movement into electrical signals

Protective fluid barrier

Flexible membrane for fluid pumps

Protective barriers and failure points

Due to their combined durability and flexibility, metal diaphragms can endure repetitive cycling for millions of strokes and are capable of operating accurately in extreme environments where they may be exposed to broad temperature fluctuations, corrosive materials, and extreme pressure.

Our engineering and manufacturing capabilities are second to none and our highly trained staff is committed to the accurate production of reliable pressure transducers from the initial design through prototyping and final production. Our quick-change tooling allows us to produce a variety of products simultaneously for quick turnaround and reduced lead times.

We specialize in the analysis and design of pressure sensing solutions to meet the varied needs of our customers. Read more about us to learn about our commitment to innovative solutions.

For more information on our metal diaphragms pressure transducer and other quality pressure transducers, contact us today or request a quote.
