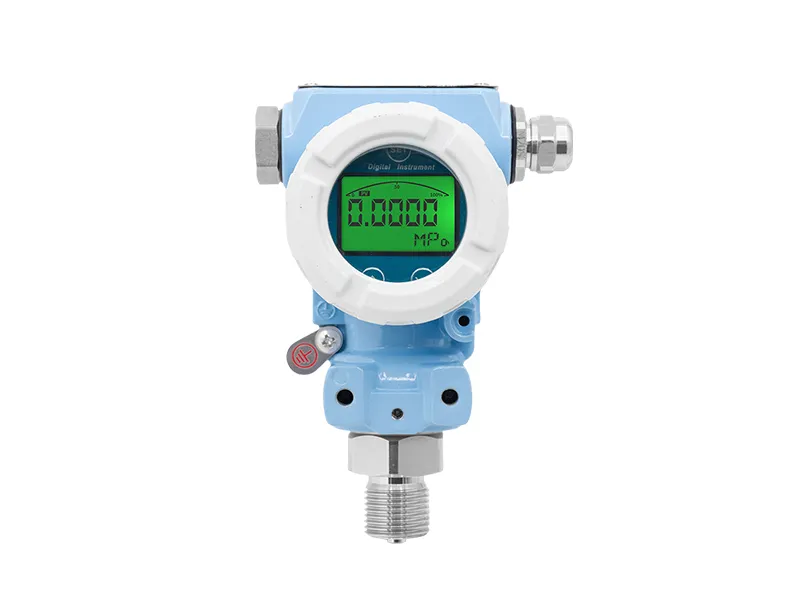

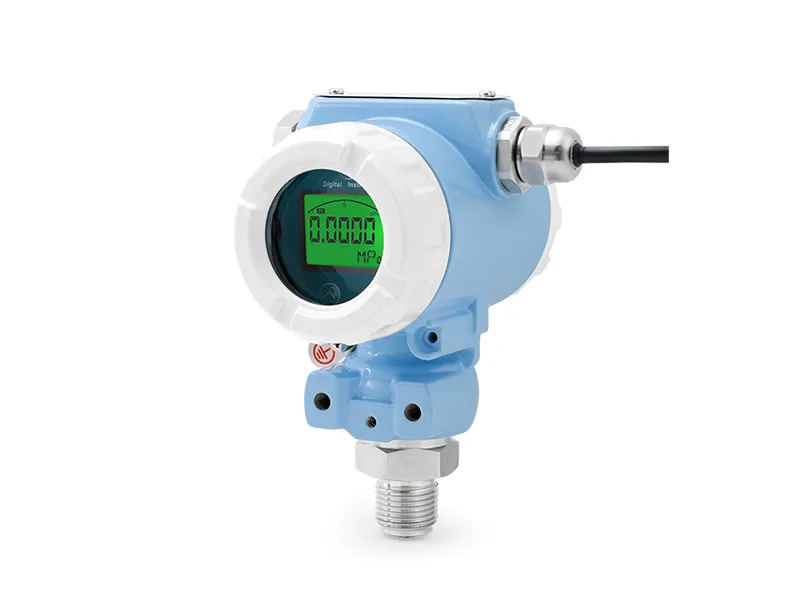

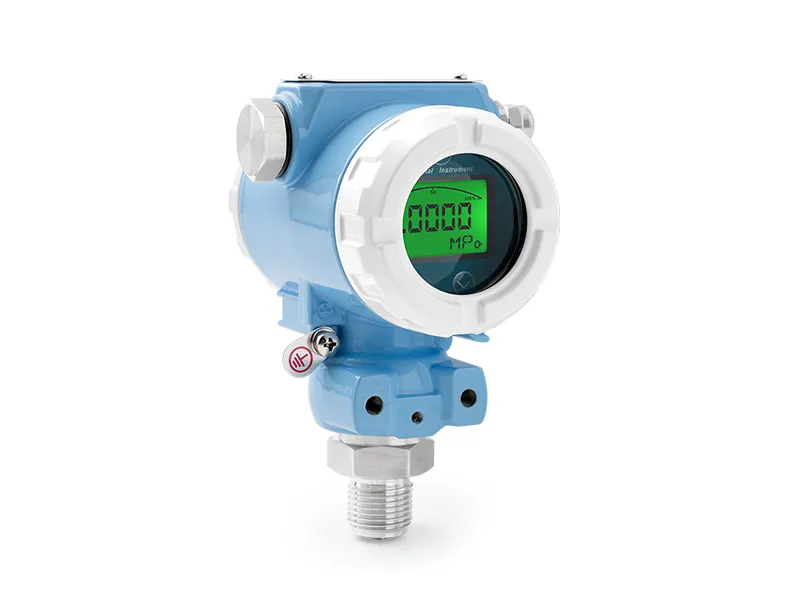

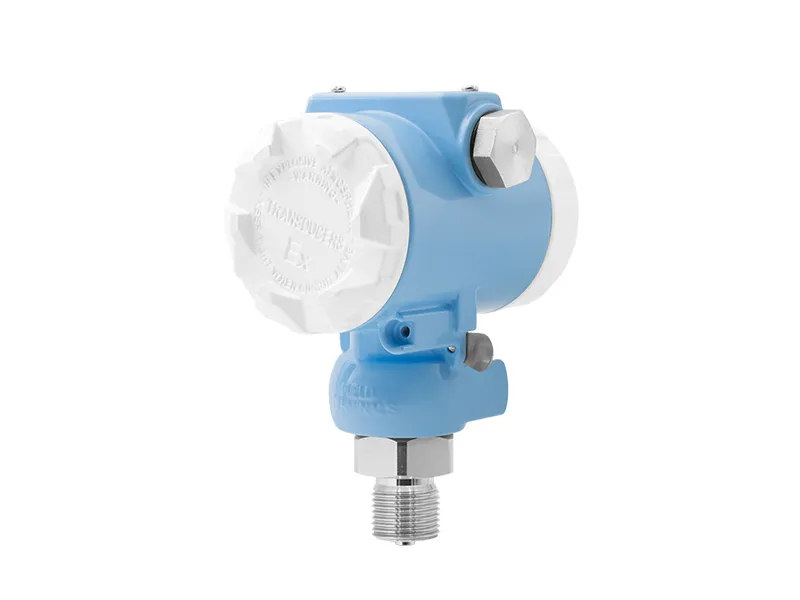

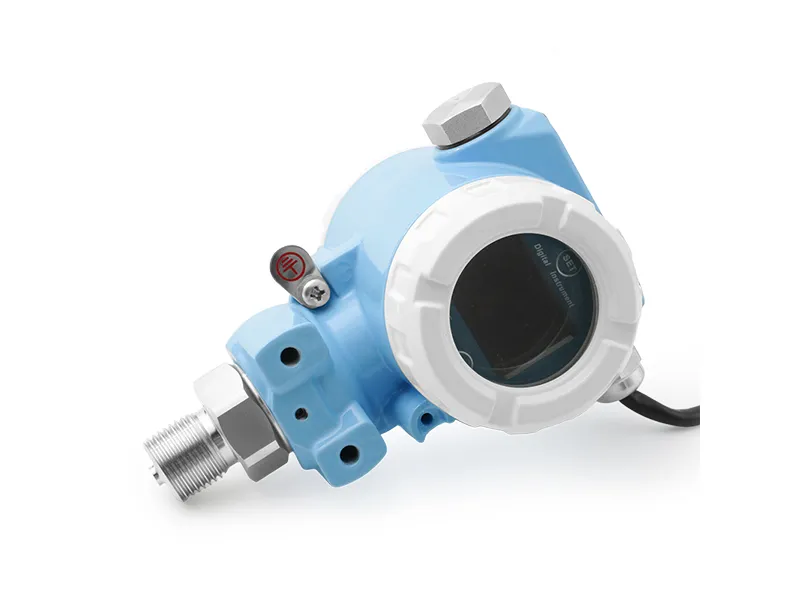

Explosion Proof Pressure Transmitter LFT6200

Name: Explosion Proof Pressure Transmitter LFT6200
Brand: LEFOO INDUSTRIAL CO.,LTD.

The LFT6200 series pressure transmitter is an isolated explosion-proof product with highly cost-effective. It is widely used for gas and liquid pressure detection, such as water, oil, mildly corrosive liquid and gas. The product adopts a 316L stainless steel pressure head, the pressure core comes from the international famous brand, and the exclusive V/I converter circuit can be easy zero/span calibration. This product has the advantages of low drift, stable performance, reliable quality and optimized structure. It has a similar function to the Rosemount pressure transmitter

Features

* Explosion-proof certification stated

* 4~20ma + HART protocol is optional

Get a Quote

Transmitter

Pump

Specification
Description
Application

Specification of Explosion Proof Pressure Transmitter LFT6200

Explosion Proof Pressure Transmitter LFT6200
Note: the transmitter is optimal for measuring medium that may has a risk of explosion

General	Value
Measurement Range	-100KPa...0~10KPa...60MPa
Overload Pressure	2 times of full scales (2X)
Breaking pressure	3 times of full scales (3X)
Accuracy	±0.5%F.S / ±0.25%F.S
Stability	0.1%F.S/Year
Working Temperature	－20℃~80℃,-40~120℃
Medium Compatibility	Gas or liquid compatible with 316L, 1Cr18Ni9Ti, VITON and NBR.
Output Mode	Two-wired	Three-wired	Four-wired
Output Signal	4~20mA	0-10Vdc	RS485
Power Supply	10~36Vdc	14~36Vdc	10-36VDC
Insulation	＞100M Ω@500V
Electric Strength	500V@60 second
Electrical Connection	Waterproof outlet
Protection Grade	IP67
Pressure Connection	M20×1.5，G1/2

Model Select Table
Note: The transmitter provides only one explosion protection

Code and description											Notes
T6200	Robust Pressure Transmitter										Model
	Range	-100KPa...0～10kPa...60MPa									Measurement range
		A4 HART	A4 = 4~20mA（Two-wired） HART = 4~20mA+HART（Two-wired）								Output mode
		V10	V10 = 0~10V（Three-wired）
		RS	RS = RS485 (Four-wired)
			K	K = kPa					P	P = psi	Unit
			M	M = MPa					B	B = bar
				0.5	0.5 = 0.5％F.S, 0.25=0.25％F.S						Accuracy class
					D	D =Direct wire connection					Electrical connection
						M	M = M20*1.5		G2	G2 = G1/2	Pressure connection
							1.0	1.0 = 1m			Cable length
							2.0	2.0 = 2m
							3.0	3.0 = 3m
T6200	0-60	A4	B	0.5	D	G2	1.0				Model selection example

Electrical Connection
Pin-out	OUT		TEST		Terminal
Output Type	1 （Red）	2 （Black）	3 （Green）	4 （White）
4~20Ma+HART	Vcc“+”	Signal

Function Description
Interface	Descriptions
SAd	Set address：0-15 Remark： when SAd isn’t zero, the output is always 4mA
LAd	Set long address
FSL	Set the lowest full scale
FSH	Set the highest full scale
Unt	Unit：bar、psi、kPa、MPa、mbar
END	Save Settings

Description of Explosion Proof Pressure Transmitter LFT6200

0.5%F.S accuracy
Anti pressure impact buffer joint
Multi pressure range and output signal
Isolation explosion protection
Configurable live display
Multiple pressure connection

Application of explosion proof pressure transducer

Robot manipulator arm

Industrial pressure control such as Paint coating machine

Explosion hazard work sites such as the Petrochemical industry

LEFOO Application of explosion proof pressure transducer LFT6200
