Lefoo 230VAC RO Diaphragm Booster Pump 600 GPD

Name: 230VAC RO Diaphragm Booster Pump 600 GPD
Brand: LEFOO INDUSTRIAL CO.,LTD.
Rating: 4.8 (50 reviews)

230VAC RO Diaphragm Booster Pump 600 GPD. The pump consist of head cover food grade plastic, fine quality, non toxic with superb finishing and stylish. Compatible with 600GPD, 500GPD membrane and Nanofiltration membrane.

Get a Quote PDF Download

Pump

Transmitter

Specification
Features
Applications

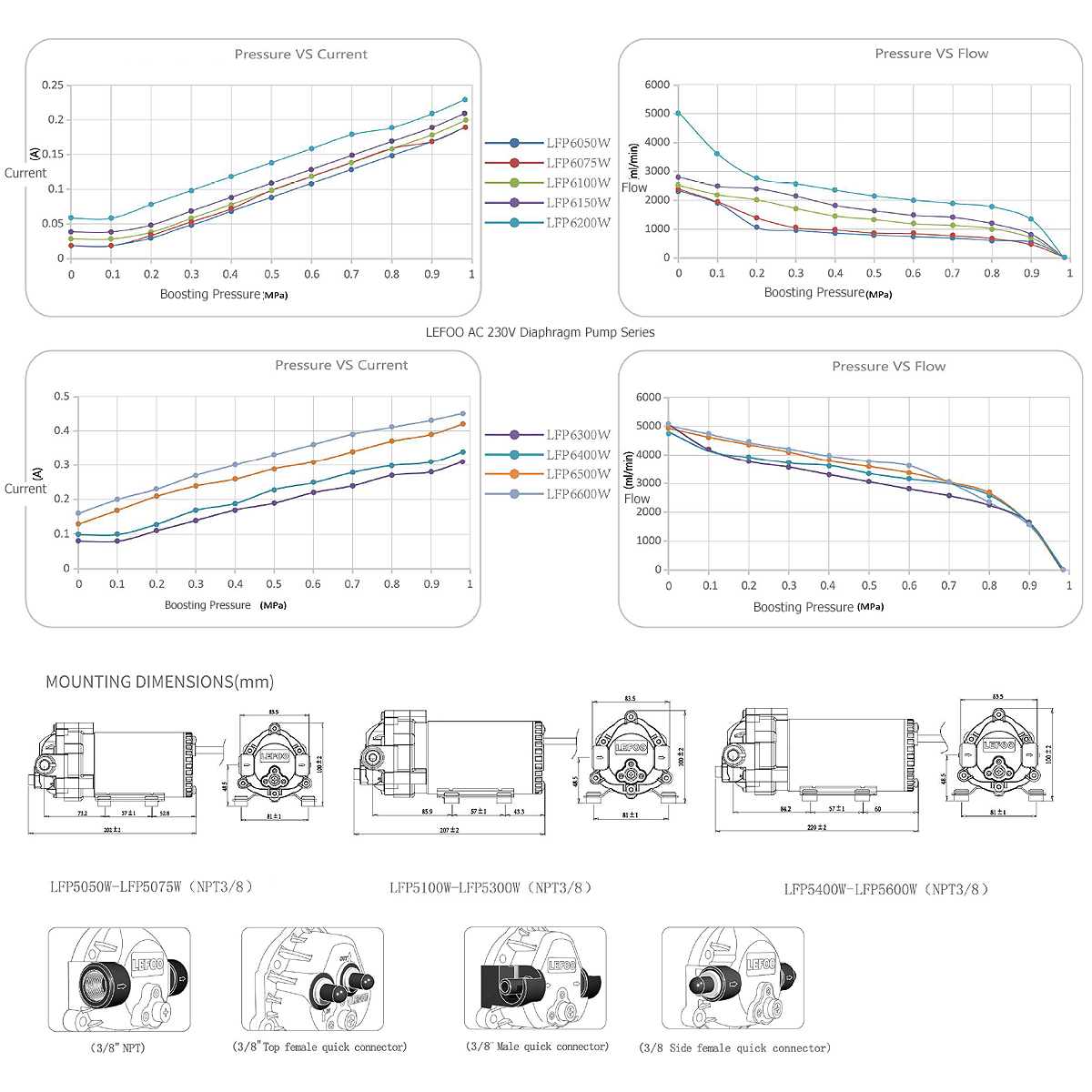

Specification of 230VAC RO Diaphragm Booster Pump 600 GPD

Model	LFP6050W	LFP6075W	LFP6100W	LFP6150W	LFP6200W	LFP6300W	LFP6400W	LFP6500W		LFP6600W
Voltage	230VAC
Inlet Pressure	0.2MPa
Boost Pressure	0.5Mpa							0.5MPa	0.7MPa	0.5MPa	0.7MPa
Work Current	≤0.13A	≤0.14A	≤0.16A	≤0.17A	≤0.18A	≤0.24A	≤0.3A	≤0.34A	≤0.39A		≤0.43A
Work Flow	≥600ml/min	≥750ml/min	≥980ml/min	≥1500ml/min	≥1900ml/min	≥2700ml/min	≥2950ml/min	≥3250ml/min	≥2800ml/min	≥3600ml/min	≥3200ml/min
Open Flow	≥1600ml/min	≥1800ml/min	≥2000ml/min	≥2200ml/min	≥2500ml/min	≥3500ml/min	≥4000ml/min	≥4800ml/min		≥5500ml/min
Bypass Pressure	0.8~1.05MPa
Maxium Pressure	≤0.24A	≤0.24A	≤0.28A	≤0.28A	≤0.3A	≤0.4A	≤0.45A	≤0.53A		≤0.57A
Optional Connectors	3/8"NPT 3/8NPT'O' 1/4" Top Female quick connector, 1/4" Side Female quick connector, 1/4" Male quick connector
Certifications	NSF, CE, ROHS, REACH, EU Food Grade

LEFOO Specification of AC230V Water Pump for 600 GPD Reverse Osmosis

Features of 230VAC RO Diaphragm Booster Pump 600 GPD

*High water preventing level.

*Optimal for Europe Electric standard.

*Compliant with CE, Rohs, CQC certifications.

*Self priming height 1~2 meters.

*Large flux water outlets with stable pressure and long working life.

*Compact structure consists of robust plastic and metal components.

*DC Powered strong impetus motor with low noise, low vibration level.

*Whole process quality controls in processes of electrical, sealing, and pressure boosting.

Applications of 230VAC RO Diaphragm Booster Pump 600 GPD

Commercial RO pure water machine

Reverse Osmosis Water Treatment

Carbonation Beverage Systems

Coffee Machine Vending

Coin operated water Vending

Hydroponics/Aeroponics

Misting Systems Flower Farming

Surface Sanitation & Humidification

Water Treatment/RO

Carbonation Systems

Beverage/Coffee Systems

Water Vending, Dispensing

Hydroponics/Aeroponics

Misting Systems

Surface Sanitation

Humidification

HVAC Coil Cleaning

Medical Lab Water

Autoclave Systems

Endoscope Reprocessing/Chemical Boost

Dialysis Chemical Injection

Methanol & Water Injection
