Specification of DC Motor Peristaltic Pump LFP101A/DB




Technical parameter

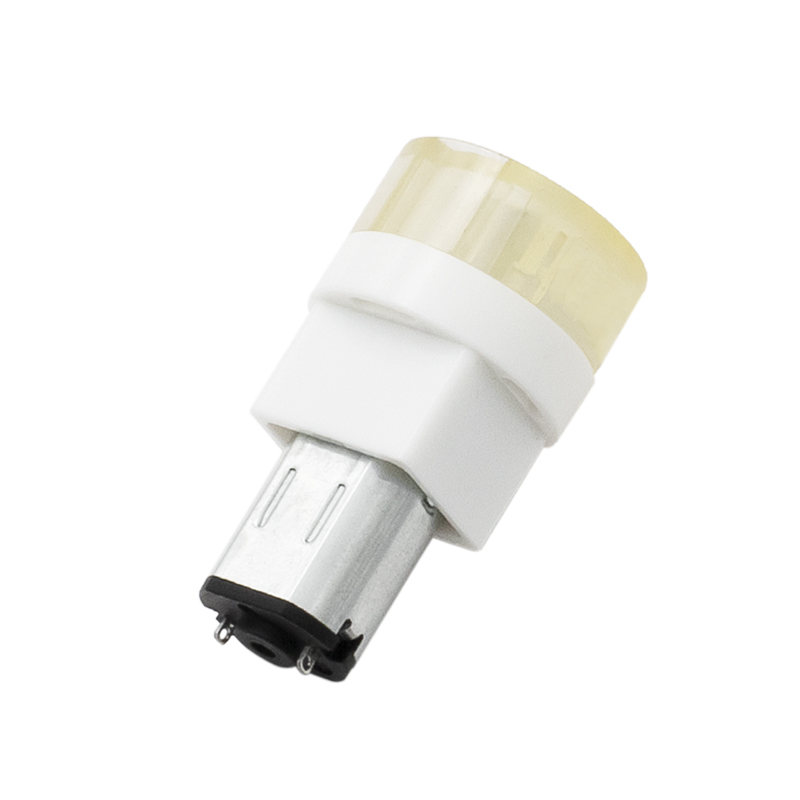

LEFOO DC Motor Peristaltic Pump LFP101A/DB
Installations methodCustomizable
Drive modeDC brush gear motor
Control method

Power-on operation

FunctionConstant speed quantitative supply
Working VoltageDC3V, DC6V, DC12V
Power≤2w
Outlet pressure≤0.03MPa
Working environment

Temperature:0-60℃

Relative humidity:<85%RH

Roller Quantity

Standard 2 rollers

(support 4 rollers)

Flow standard(ml/min)

Pump tube specification2mm*3mm(ID*OD)
Pump tube materialSilicone
Flow(ml/min)
15rpm

0.5-1

30rpm1.8-2
50rpm2.6-2.8
60rpm4-4.3
100rpm6.5-8

Dimension(mm)
